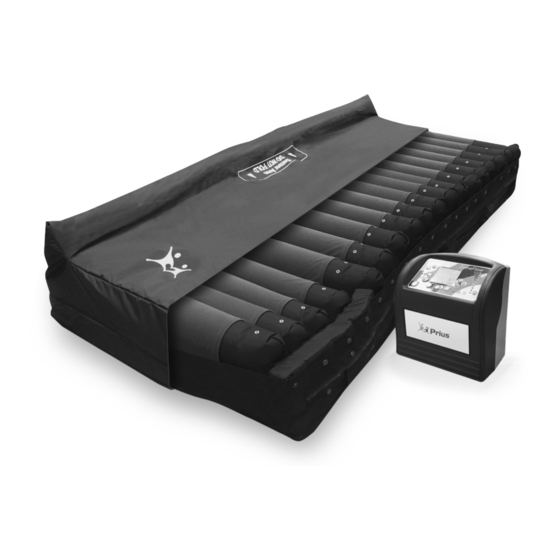

- Page 1 DynaFlow Alternating Low Air Loss Pressure Relief System Control Unit: FC-PHR0028 User Manual Mattress: FM-PHR0008 Manufactured by: Prius Healthcare USA 4027 Tampa Rd, Suite 3200 Oldsmar, FL 34677 Tel: 813-854-5464 Fax: 813-854-5442 www.priushcusa.com 1805...
-
Page 2: Table Of Contents
2. Product Description ....................1 Master Control Unit Features Mattress Features 3. Technical Data ......................3 Master Control Unit DynaFlow Mattress Replacement Symbol Definition 4. Instruction for Proper Use ................... 4 5. Cleaning ........................8 The Mattress The Master Control Unit... - Page 3 Connect the Master Control unit to a proper power source. Warning Don’t use the system in the presence of any flammable gases. ( such as Anesthetic Agents) Keep the pump and mattress away from open flame. Keep sharp objects away from the mattress. The device is not AP/APG protected.
-
Page 4: The Purpose Of This Manual
The DynaFlow system is a unique and innovative specialized mattress Product Description replacement unit. The system utilizes true low air loss technology with a high flow rate that provides pressure management for the treatment of pressure ulcers. - Page 5 Alternating pressure should not be applied to pain or pain-sensitive Caution patients. In these cases, we recommend the application of static mode or other suitable foam overlays or other materials which can be found in sample supply in the Prius Healthcare USA product range. Patient’s Comfort LCD Display...
-
Page 6: Technical Data
3. Technical Data Model No. FC-PHR0028 Master Control Unit Model Name DynaFlow Size (inch) LxWxH 12.2“ x 13.2“ x 6.7“ Weight 15.5 Lbs Cycle Time (min) 3 - 95 Min Operating Pressure 8 +/- 5mmHg Max Operating Pressure 35 +/- 5mmHg... -
Page 7: Instruction For Proper Use
Type BF Symbol Definition Protection Against Class II Equipment Electronic Shock Caution, Consult Refer To Instruction accompanying Manual / Booklet documents Keep dry Waste Disposal SGS product certification mark 1. Remove the existing mattress from the bed frame. Instruction for Proper Use 2. - Page 8 9. Press the STANDBY/OPERATE switch button on the control panel (OPERATE LED will now be illuminated and the control unit will be in operation) Ensure the auto sensor connector is connected properly before pressing Auto Auto Set Mode SET button. When Auto SET function is activated, control unit is automatically optimizing patient’s comfort setting base on patient’s BMI input.
- Page 9 Alternation Cycle Illustration 2. Press "CYCLE" button for alternating time setting. Alternating time can be adjusted from 3 min to 20 min by increments of 1 min and 20 min to 95 minutes by increments of 5 min. The Alternating time will be displayed on the Time display window on the control panel.
- Page 10 The Alarm will be triggered when a Sensor Disconnect & Bottoming Out is Alarm On/Off detected. Disable the alarm by pressing the button. 1. The Prius DynaFlow is equipped with auto-locking intelligence. All Lock Button function keys will be automatically disabled if the control panel is not in operation for 2 minutes and when this function is engaged an green LED will illuminate.
-
Page 11: Cleaning
The air hose connectors can be disconnected from the controller to quick CPR Deflation release the air when in an emergency situation where CPR is to be performed. 5. Cleaning The mattress should be cleaned on the bed weekly using a damp soft cloth and The Mattress mild detergent. -
Page 12: Waste Disposal
The pump unit should also be cleaned weekly using a damp soft cloth and mild detergent. The pump casing is manufactured from ABS plastic and if the case is soiled the pump can be wiped down with a sodium hypochlorite solution to dilution of 1000ppm or any EPA- approved hospital grade disinfectant. -
Page 13: Storage And Care
6. Storage and Care Check the power cord and plug for abrasions or excessive wear. Master Control Unit: Plug in the unit and verify air flows from the units hose connection ports. Place in plastic bag for storage. ... -
Page 14: Emc Related Notification
8. EMC Related Notifications The DYNAFLOW is intended for use in the electromagnetic environment (for Manufacturer’s declaration-electromagnetic emissions home healthcare) specified below. The customer or the user of the DYNAFLOW should assure that it is used in such an environment. Emission test Compliance... - Page 15 The DYNAFLOW is intended for use in the electromagnetic environment (for home Manufacturer’s declaration-electromagnetic immunity healthcare) specified below. The customer or the user of the DYNAFLOW should assure that it is used in such an environment. Immunity test IEC 60601...
- Page 16 The DYNAFLOW is intended for use in the electromagnetic environment (for home healthcare) Manufacturer’s declaration-electromagnetic immunity specified below. The customer or the user of the DYNAFLOW should assure that is used in such and environment. Immunity test IEC 60601 test...
- Page 17 RF communications equipment and the DYNAFLOW Recommended separation distance between The DYNAFLOW is intended for use in an electromagnetic environment (for home healthcare) in which radiated RF disturbances are controlled. The customer or the user of the DYNAFLOW can help prevent electromagnetic interference by...
- Page 18 Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications The DYNAFLOW is intended for use in the electromagnetic environment (for home healthcare) equipment specified below. The customer or the user of the DYNAFLOW should assure that it is used in such an environment. Compliance (V/m) (MHz)
-
Page 19: Warranty
In no event shall Prius Healthcare USA be liable for any direct, indirect of consequential damages or losses resulting from the use of equipment. - Page 21 Prius Healthcare USA 4027 Tampa Rd, Suite 3200 Oldsmar, FL 34677 Tel: 813-854-5464 Fax: 813-854-5442 www.priushcusa.com AL300217 V1.00...
