Summary of Contents for DTS DTS-12RE

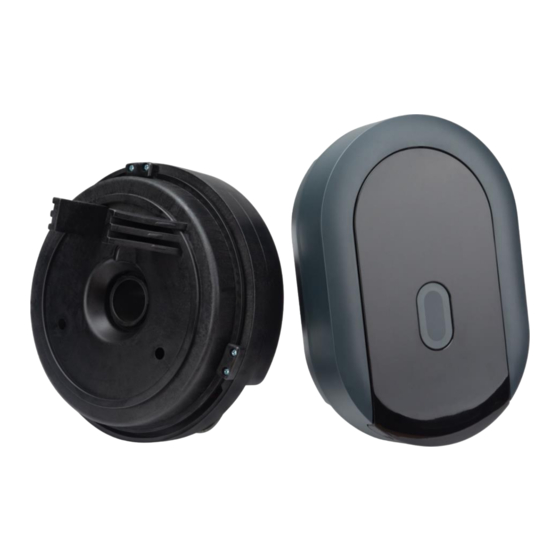

- Page 1 DTS-12RE ROLLER DOOR OPERATOR Comply to: SANS IEC 60 335-2-103 NRCS Cert. no. 88934/002 DTS SECURITY P.O.BOX 3399 Base plate-mounting instructions EDENVALE 1610 Spartan +27 11 392 5540 (H/O) Pretoria +27 12 361 5528 www.dtssecurity.co.za...
-
Page 2: Safety Warnings
Repeat the test once a month and make any needed adjustments. (See Sensitivity adjustment). DTS-12RE operator has an electronic obstruction system that provides safe and reliable operation. It is however a legal requirement in some countries to also install Photo beams across the doorway. -
Page 3: Pre-Installation Notes
2. Pre-installation Notes Right hand installation shown (inside garage looking out) Fig 1 Check that there is sufficient side clearance to fit the operator unit. It may be fitted to either the right- or left-hand side. (1) Minimum side clearance: The minimum side clearance between the door curtain and the inside edge of mounting bracket is 85mm. -
Page 4: Installation Instructions
3. Installation Instructions Installation on the Krazi door and others where the door drum is more than 135mm from the centre shaft support bracket. 1. Release the engage/disengage lever on the motor so that the motor runs free. 2. On the door support bracket carefully remove the door support hook 3. -
Page 5: Installation Instruction
4.Installation Instruction STEP 1 Whilst the door roll is on the floor, rotate shaft backwards and forwards by hand and then release. This action will allow the roll to centralize itself on the shaft. (New installation only). STEP 2 Fit anti-coning collar TIGHT TO DRUM at opposite end of curtain to the motor using M8 Dome Head Screw and M8 Nyloc Nut as required. -
Page 6: Control Box Set Up
5. Control box set up Operation Controls: 1. SET Button - Confirm set and reversing sensitivity 2.PAIR Button - Transmitter pairing 3. UP Button - Limit mode set. 4. DOWN Button - Limit mode set Circuit Board Connections. 5. Coupling for connecting the backup battery. 6. - Page 7 Whoever installs and uses the DTS12RE roller door opener will be held responsible for any damage caused. NOTE: Contact DTS Security Products technical department for the wiring diagram for the above connections if uncertain of the correct procedures.
- Page 8 10.3) Press SET to store your settings. 10.4) The GDO will allow one opening and closing. After closing, allow 2 seconds for lock out to activate. Press button 3 on the DTS TX5 Octo remote, then programmed button to operate/ Self Learning Transmitter. (Maximum 20) 11.1) Press CODE, the red dot will light up.
-
Page 9: Manual Disengagement
Open and close force: 600 N Rolling code Decoding: Lamp: LED, 12V DC Operator limits travel: 6.5 circles of door drum wheel NOTE: DTS Security Products reserves the right to modify its product and specifications at any time without prior notice. -
Page 10: Common Troubleshooting
COMMON TROUBLE SHOOTING Symptom Possible reason Solution Check power is on to control unit (Red Power not switched on LED illuminated) The door will not operate from control box Plug fully engaged on the control box Mains plug problem and motor wiring connections properly engaged Pull the manual release lever “beep, beep..”... - Page 11 There could be an obstruction Remove obstruction under the door The door stops automatically The moving force of the motor is Increase the safety reverse force when opening set too low The remote light flashes when The battery is loose. Open rear cover holding button and ensure battery is connected.
- Page 12 ⚫ Faulty goods will be repaired or replaced at the sole discretion of DTS Security Products, free of charge. ⚫ This warranty is subject to the goods being returned to the premises of DTS Security Products. ⚫ This warranty excludes lightning damage, insect damage and damage caused by faulty installation.
