Summary of Contents for DTS 1000
- Page 1 Comply to: SANS IEC 60-335-2-103 NRCS Cert. no. 155969/002 DTS 1000 DTS 1000HS DTS SECURITY PRODUCTS Spartan +27 11 392 5540 (H/O) Pretoria +27 12 361 5528 www.dtssecurity.co.za...
-
Page 2: Table Of Contents
General error code………………………………………………….…….………………...……..……15 Manufacturers warranty………………………………………………….…….………………….……16 T o the extent that they may be lawfully excluded, DTS Security Products hereby expressly excludes all conditions and warranties, statutory or otherwise, which may be implied by law as conditions or warranties of purchase of a Garage Door Opener. DTS Security Products hereby... -
Page 3: Important Safety Recommendations
Important safety recommendations The new GDO is professionally designed under the newest design idea. The installation and setting of this GDO are extremely easy. It has complete functions, giving the users a relaxed and happy installation experience. Safety Warnings: Warning: It is very important to read this safety warning and follow all instructions before installing. Or it may cause serious personal injury and/or property loss. - Page 4 The device is intended for the opening and closing of tilt-up and sectional garage doors in the private sector. For DTS 1000, it is best for the door to be less than 14m², 140kgs. For DTS 1000HS, it is best for the door to be less than 14m², 140kgs.
-
Page 5: Basic Function Introduction
Basic function introduction 1. Soft start, soft stop. Minimize start-up load on garage door opener and garage door 2. The door will stop during opening when contacting obstruction and will reverse at least 300mm during the closing when contacting obstruction. 3. -
Page 6: Installation
Installation 1). Read the instructions carefully. 2). Make sure the door structure is solid and suitable to be motor driven. 3). Make sure that when the door is moving there are no friction points. 4). The door must be properly balanced and must be easily lowered and raised by hand. 5). -
Page 7: Installation (Aluminum Track)
2800mm 400mm 30 mm Fig.4 Fig.5 Maintain a minimum gap of 30mm from the top panel’s maximum height (Fig.4). Make sure the track is horizontal and vertical to the shaft. Make sure the connection of hanging bracket F and The ceiling is firm enough (Fig. 5). Warning: Make sure the opener is affixed to noggins in the ceiling and not to the plasterboard. - Page 8 Fig.7 Installation procedure 1. Fixing the wall bracket. Fixing the wall bracket to the wall 20-150mm over the shaft or intermediate bracket (depending on the actual installation space). 2. Fixing the steel track to the wall bracket with a cotter pin. 3.
-
Page 9: Installation (One-Piece Steel Track)
Installation (one-piece steel track) Wall bracket Iron angle A Cotter pin Straight arm Door bracket Bent arm U bracket A Motor shaft adapter Fig.8 Fig.9... -
Page 10: Installation Recommendations
Installation recommendations Remember there are specific standards that have to be strictly followed regarding the safety rules of electrical installation and automatic doors. As for the legal requirements and standards that must be adhered to, please take notice of the following points to ensure maximum safety and reliability of your installation. 1. -
Page 11: Basic Function Setting
Basic function setting 1. Limit setting Opening & Closing force dynamically self-learning Press and hold ‘K1’ until the LED displays figure ‘1’, like in Fig. 1, and then adjust the open limit by pressing the ‘K3’ button. Fine-tuning with ‘K3’ or ‘K4’ buttons to determine the final open limit position then pressing the ‘K1’... - Page 12 3. Safety reverse force adjustment Press and hold ‘K1’ until the LED displays ‘3’. It’s under force adjustment mode. LED will show the current force level, 1 to 9. Press the ‘K3’ button to increase the force level and the ‘K4’ button to decrease the force level, then press the ‘K1’...
-
Page 13: Special Function Introduction (Optional)
The GDO will allow one opening and closing. After closing, allow 2 seconds for lock out to activate Note: When the GDO is in lock out mode, the DTS TX5 Octo is the only transmitter that can be used to open the GDO. First press button ‘3’... -
Page 14: Wiring Guide
Wiring Guide Fig.16 Fig.17 Fig.18 Fig.19 Fig.20... -
Page 15: Manual Disengagement
Manual disengagement The opener is equipped with a manual release cord to disengage the shuttle and move the door by hand while holding the handle down (Fig.21). Pull on the handle to disengage the shuttle. T o re-engage the door simply run the opener in automatic mode or move the door by hand until the trolley engages in the chain shuttle. -
Page 16: Final Notes
Final notes This manual is only used by technical persons who are qualified to carry out the installation. No given information in this manual can be considered of any interest to the end user. It is important for the installer to show their clients the correct operation using of the opener including the use of manual disengagement cord. -
Page 17: Standard Packing List
Standard packing list Item Quantity Door opener Track (incl. Traveller) Transmitter Door bracket Wall bracket “U” bracket A “U” bracket B(If aluminum track) Iron angle A Track bracket Clutch cord Cord pendant Straight arm Bent arm Fixing kit General error code Code Failure Possible causes... -
Page 18: Manufacturers Warranty
Faulty goods will be repaired or replaced at the sole discretion of DTS Security products, free of charge. This warranty is subject to the goods being returned to the premises of DTS Security Products. This warranty excludes lightning damage, insect damage and damage caused by faulty installation.
Need help?
Do you have a question about the 1000 and is the answer not in the manual?
Questions and answers
How do I close the Dts 1000 garage door opener manually
To manually close the DTS 1000 garage door opener, pull on the manual release cord to disengage the shuttle. Then, move the door by hand while holding the handle down. To re-engage, run the opener in automatic mode or move the door by hand until the trolley engages.
This answer is automatically generated
How to disable auto close
To disable auto close on the DTS 1000, press and hold the ‘K3’ button until the LED displays the current setting. Then press the ‘K4’ button repeatedly until the LED displays ‘0’. Press the ‘K1’ button to confirm. When the LED shows ‘0’, the auto-close function is turned off.
This answer is automatically generated

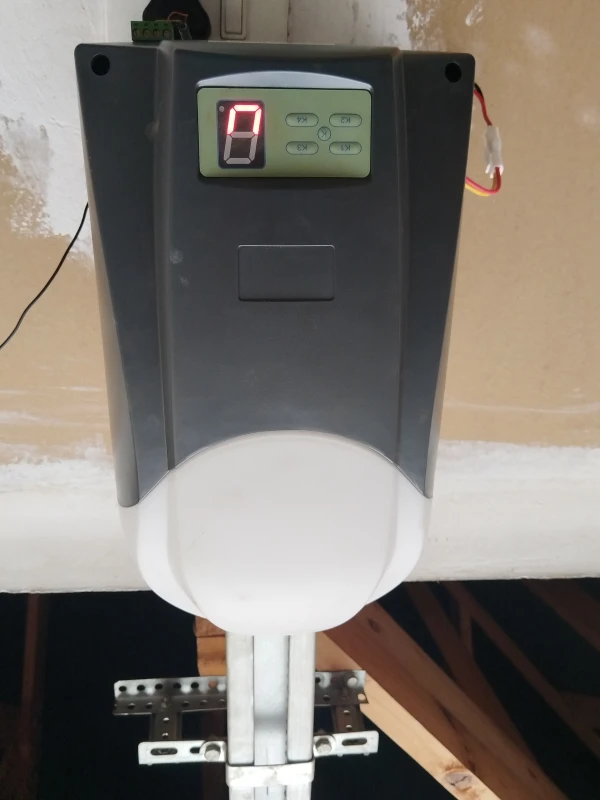

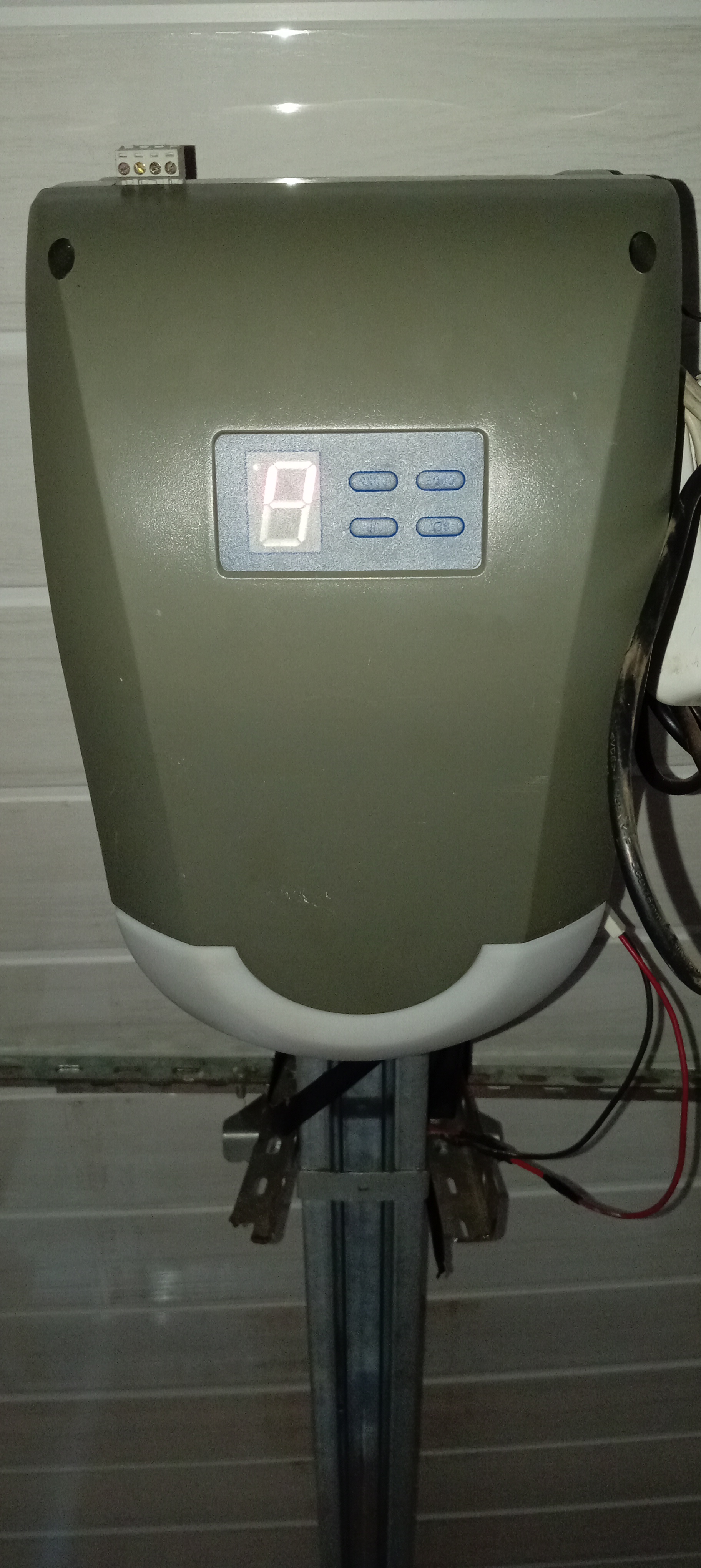

It is flashing 1 and 3 1 and 3 i am just trying to set it back to its original setting and reconnect the remote
