Page 1

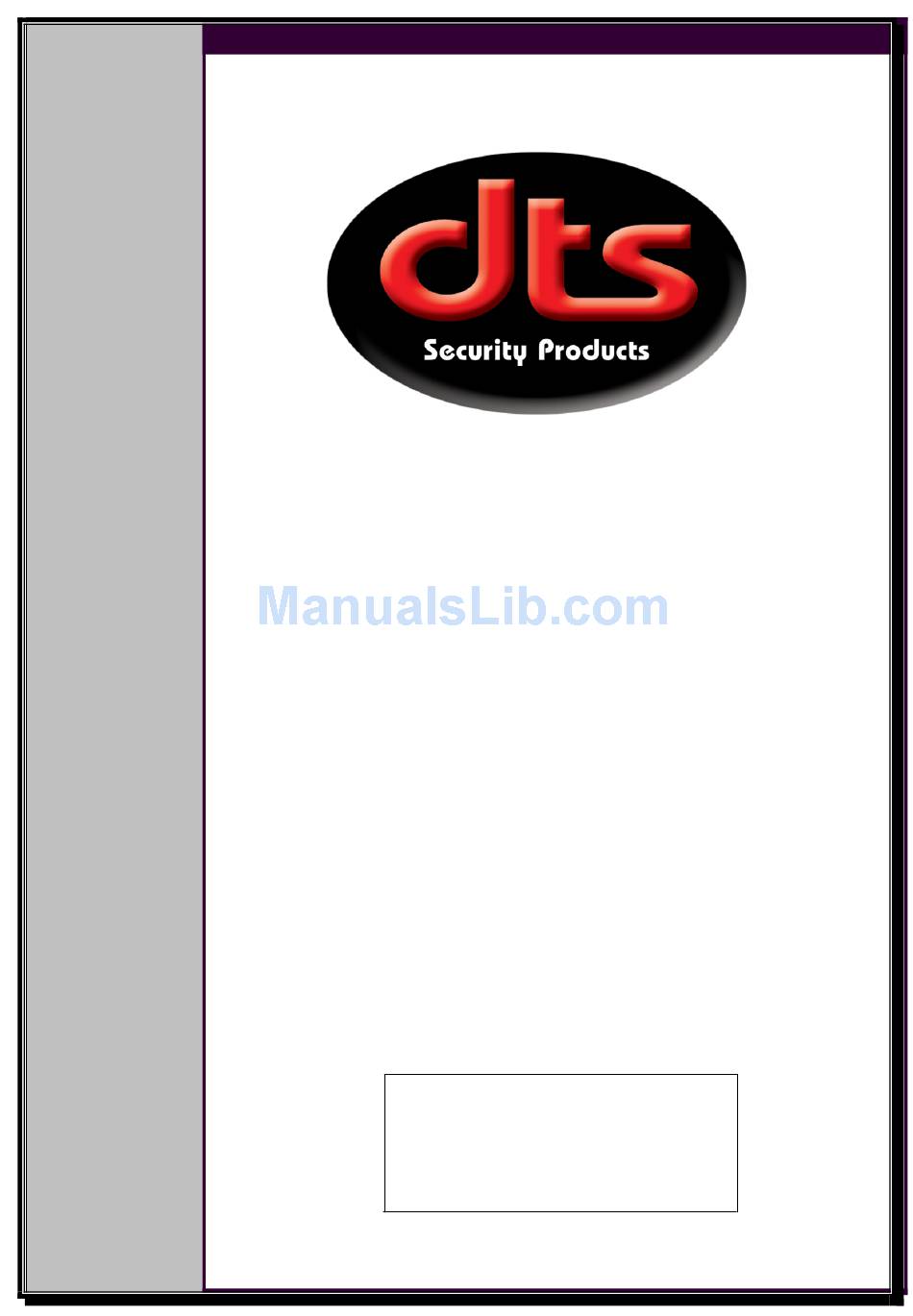

Dts-12 ROLLER DOOR OPERATOR INSTALLATION MANUAL Comply to: SANS IEC 60 335-2-103 NRCS Cert. no. 88934/002 DTS SECURITY PRODUCTS CC P.O.BOX 3399 EDENVALE Base plate-mounting instructions 1610 TELEPHONE 086 1000 387 Spartan +2711 392 5540 (H/O) Pretoria +2712 361 5528...
Page 2
Repeat the test once a month and make any needed adjustments. (See Sensitivity adjustment). DTS-12 operator has an electronic obstruction system that provides safe and reliable operation. It is however a legal requirement in some countries to also install a Photo-electric sensor across the door way.
Page 3
Pre-Installation Notes Door curtain Right hand installation shown (inside garage looking out) Fig 1 Check that there is sufficient side clearance to fit the operator unit. It may be fitted to either the right or left hand side. (1)Minimum side clearance: The minimum side clearance between door curtain and the inside edge of mounting bracket is 85mm;...
Page 4
INSTALLATION INSTRUCTIONS Installation on the Krazi door and others where the door drum is more than 135mm from the centre shaft support bracket. 1. Release the engage/disengage lever on the motor so that the motor runs free. 2 . On the door support bracket carefully remove the door support hook 3.
Page 5
New Door Installation Figure 4 STEP 1 Whilst the door roll is on the floor, rotate shaft backwards and forwards by hand and then release. This action will allow the roll to centralize itself on the shaft. (New installation only). Figure 5 STEP 2 Fit anti-coning collar TIGHT TO DRUM at...
Page 6
Mount control Unit approximately 1.6m from the floor out of the reach of children. Use No. 4x1” self-tapping screws and rawlplugs. Ensure aerial is clear of all steel supports and coiled electrical leads. Fit plug from motor unit into bottom of Control Box. Connect the control unit power cord to an adjacent socket.
Page 7
Figure 8 STEP 9 Manually position door to halfway and re-engage the motor drive by moving the manual release lever to the “engage” position. N.B.: Door can now only be operated electrically, not manually. If you wish to return to manual operation, ensure power is switched off and move lever to “disengage”...
Page 8
Control box set up Remove cover on front of control box 1. Wiring diagram J1, J2 (AC24V) : Transformer output A, A+, I, OV, +24 : Manual push button / Receiver Input NO / Infra red beam /Common & DC auxiliary voltage. SP+, SP- : Battery Backup Connector M1, M2, OP, COM, CL : Motor &...
Page 9
To master delete all codes Press and hold the K1 learning button, the LED will flash 10 times, all transmitter codes held in the memory have been erased. Wiring for external receivers. PCB to Receiver 24 Volt Neg. Com. (Power for any 24 volt DC externals can also be taken from SP- (Neg.) and SP+ (Pos.) (If the receiver and the cover red push button don’t work, power down for approximately 5 seconds then re-apply power).
Page 10
FAULT FINDING DOOR WILL NOT OPERATE FROM Control Box • Check power is on to Control Unit (Red L.E.D. illuminated). IF NOT, check mains plug and fuse. • • Plug fully engaged on top of Control Box. • Motor wiring connections properly engaged. •...
Page 11
POWER FAILURE To disengage / engage Pull manual release lever downwards. (Refer fig 10 below) Figure 10 Technical Specifications INPUT VOLTAGE: 220VAC+-10% 50 Hz (110VAC 60Hz or 127VAC 60Hz available on request) Single Phase TRANSFORMER SPEC: Primary Voltage 220VAC +/-10% Secondary Voltage 24 VAC WORKING CIRCUMSTANCE:...
Page 12
Warranty • All goods sold by DTS Security carry a 12 month factory warranty from date of invoice. • All goods are warranted to be free from faulty components and manufacture. • Faulty goods will be repaired or replaced at the sole discretion of DTS Security Products, free of charge.
