ReelCraft L Series Operating Instructions Manual

Operating Instructions

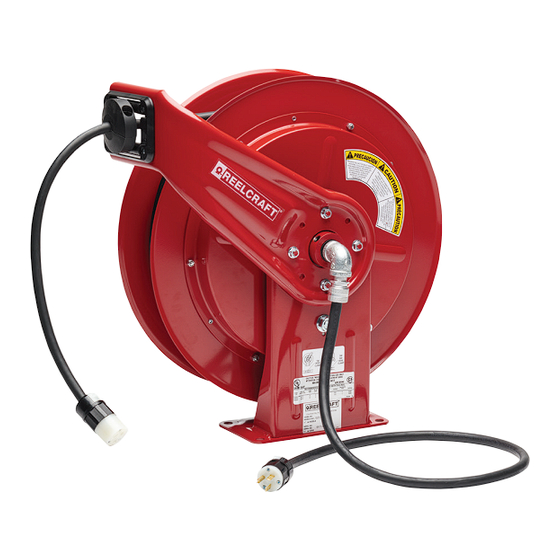

Series L 70000 Spring Driven Cord Reels
Model Numbers:
L 70075 123 3 L 70100 123 3B
L 70100 123 3 L 70100 123 7A
L 70075 123 3A L 70100 123 7QC
L 70075 123 3AC L 70075 123 9
L 70100 123 3A L 70100 123 9
Dimensions
SAFETY
Personal injury and/or equipment damage may result if proper safety
precautions are not observed.
• Ensure that only a qualified electrician installs/services this
equipment.
•
• Ensure that power supply voltage does not exceed maximum
voltage rating of reel.
•
• Ensure that all electrical power is removed from reel before
servicing.
•
• A high-tension spring assembly is contained within the reel.
Exercise extreme caution.
•
• Check for frayed and/or broken wires before each use. Pull
electrical cord from reel by grasping the electrical cord itself,
not the work device.
•
• If an electrical malfunction should occur, remove power from
reel immediately.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
L 70100 123 9G
L 70100 123 X
L 70100
L 70100 124 X
L 70100 124
A 20 1/4"
B 19 3/4"
C 7 7/8"
D 3 7/8"
E 12 1/2"
• Ensure that reel, electrical cord, and equipment being serviced
•
• If reel ceases to unwind or rewind, remove power immediately.
•
• Treat and respect the reel as any other piece of machinery,
•
• All cord reels with flying leads must be hard wired into the
•
WARNING: Even low voltage can cause irreparable damage or
death! Exercise extreme caution while operating or servicing this
equipment.
IMPORTANT
Read this manual carefully before installing,
operating or servicing this equipment.
are properly grounded. Use an ohmmeter to check ground
continuity.
Do not pull or jerk on electrical cord!
observing all common safety practices.
electrical circuit to ensure proper function.
Form# 1287-916 Rev: 9/2023
