ReelCraft D83075 OLP-HTH Operating Instructions Manual

Operating Instructions
Series D80000 Spring Driven Hose Reels
Low and Medium Pressure Model Numbers:
D83000 OLP FD83000 OLP
D83075 OLP FD83075 OLP
D84000 OLP FD84000 OLP
D84035 OLP FD84035 OLP
D84050 OLP FD84050 OLP
IMPORTANT
Read this manual carefully before installing,
operating or servicing this equipment.
Personal Safety
Personal injury and/or equipment damage
may result if proper safety precautions are
not observed.
• Ensure that reel is properly installed
before connecting input and output
hoses.
• Bleed fluid/gas pressure from system
before servicing reel.
• Before connecting reel to supply line,
ensure that pressure does not exceed
maximum working pressure rating of
reel.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
D83075 OLP-HTH
D84050 OLP-HTH
D84000 OMP
D84050 OMP

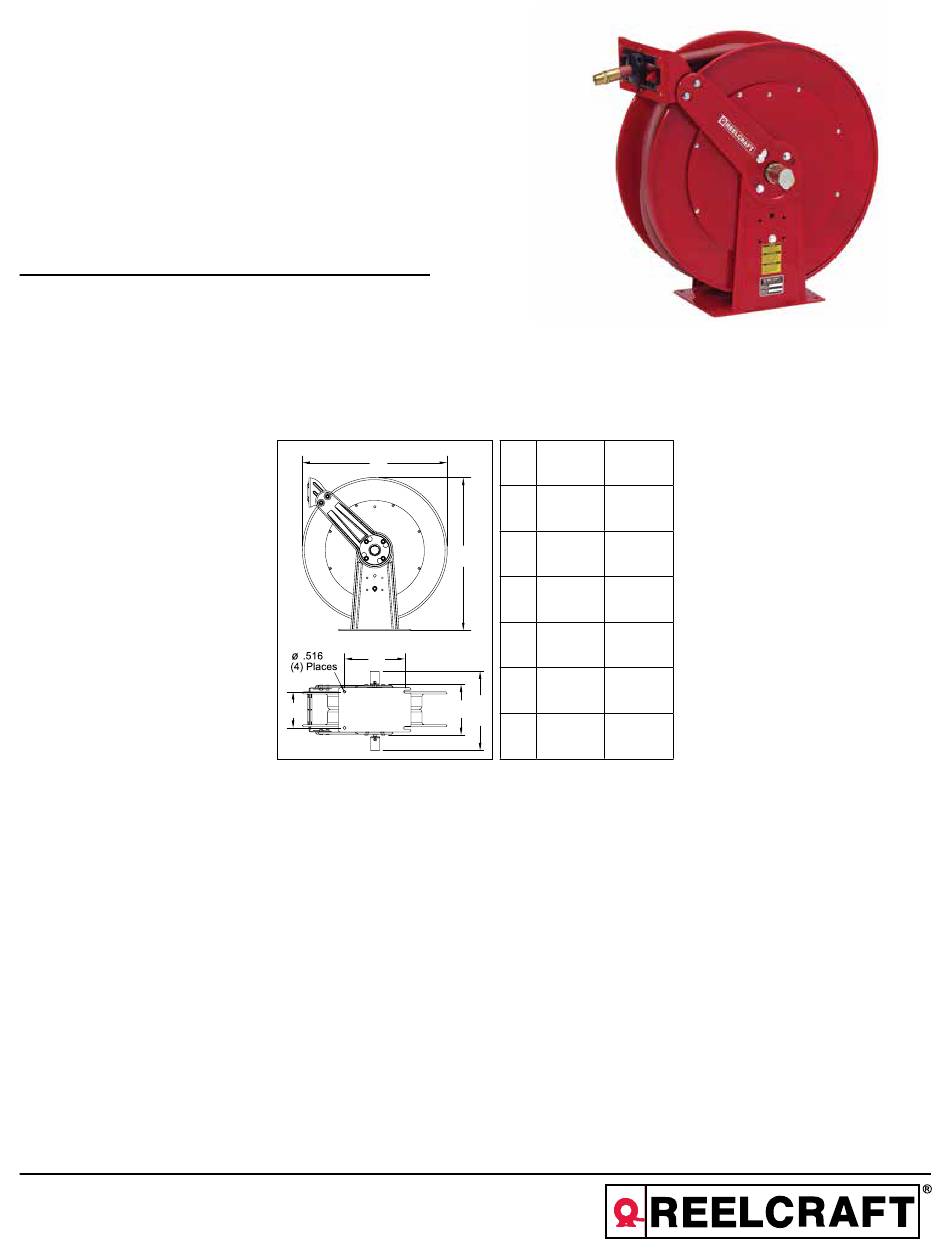

Dimensional Data
B
C
D
• Remember, even low pressure is very
dangerous and can cause personal in-
jury or death.
• Be aware of machinery and personnel
in work area.
• If a leak occurs in the hose or reel, re-
move system pressure immediately.
• A high tension spring assembly is con-
tained within the reel. Exercise extreme
caution.
83000 84000
A 25.375" 25.375"
B
24" 24"
A
C
10.5" 10.5"
D
7.875" 7.875"
E
13" 15.75"
E
F
F
10.375" 10.375"
• Pull hose from reel by grasping the
hose itself, not the control valve.
• If reel ceases to unwind or rewind,
remove system pressure immediately.
Do not pull or jerk on hose!
• Treat and respect the hose reel as any
other piece of machinery, observing all
common safety practices.
Form# 998-1099 Rev: 11/2019
