ReelCraft L 4000 118 Operating Instructions

Operating Instructions

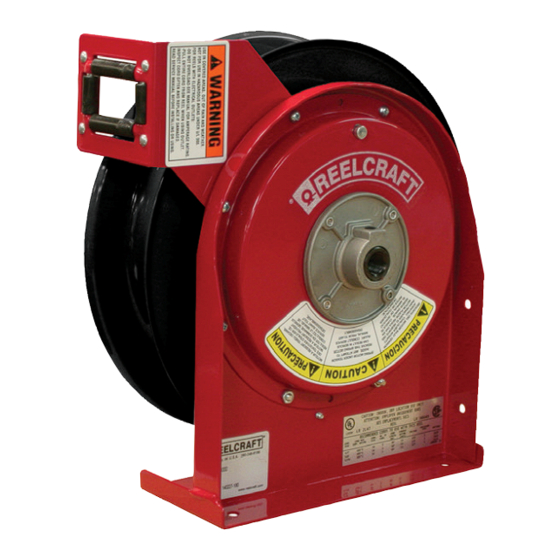

CE Spring Driven Cord Reels
L 4000 118 L 4545 123 X 118 L 5550 124 X 118 L 70100 123 X 118
L 4100 118 L 5000 118
L 4500 118 L 5500 118
Part No. Cable
L 4000 118 15m H07RN-F 3G1.5*
L 4100 118 12m H07RN-F 4G1.5*
L 4500 118 13.5m H07RN-F 3G2.5*
L 5000 118 10.5m H07RN-F 3G6*
L 5500 118 15m H07RN-F 3G2.5*
L 5700 118 15m H07RN-F 3G6*
L 70100 118 30m H07RN-F 3G2.5*
L 70100 124 118 30m H07RN-F 4G4*
L 4545 123 X 118 13.5m H03RN-F 3G2.5
L 5550 124 X 118 15m H07N-F 4G4
L 70100 123 X 118 30m H07RN-F 3G2.5
L 70100 124 X 118 30m H07RN-F 4G4
*NOTE: Models provided without cable
Safety Precautions
Personal injury and/or equipment damage may
result if proper safety precautions are not
observed.
• Ensure that only a qualified electrician
installs/services this equipment.
• Ensure that power supply voltage does not
exceed maximum voltage rating of reel.
• Ensure that reel is properly installed before
connecting to power supply.
Reelcraft International Inc. • Ph: +44 (0) 1536 406999 • Fax: +44 (0) 1536 406777
Unit 17 - Cronin Courtyard, Weldon South Industrial Estate, Corby - Northamptonshire NN18 8AG
europe@reelcraft.com • www.reelcraft.com/europe
L 5700 118
L 70100 118
L 4000
L 4100 L 5000 L 5500
L 4500
A 327 mm
365 mm 448 mm
B 321 mm
362 mm 425 mm
C 203 mm
248 mm 248 mm
D 64 mm 64 mm 64 mm
E 238 mm 267 mm 267 mm
F
44 mm 54 mm 54 mm
Nominal
Nominal Output with Cable
AC Voltage
Fully Wound
220 V
220 V
220 V
220 V
220 V
220 V
220 V
220 V
220 V
220 V
220 V
220 V
• Ensure that all electrical power is removed
from reel before servicing.
• A high-tension spring is contained within the
reel. Exercise extreme caution.
• Check for frayed and/or broken wires before
each use. Pull cord from reel by grasping the
cord itself, not the work device.
• If an electrical malfunction should occur,
remove power from reel immediately.
L 70100 124 118
L 70100 124 X 118
L 5700
448 mm
425 mm
248 mm
64 mm
318 mm
54 mm
Weight
Unwound
1430 W 1430 W
1100 W 1100 W
3520 W 3520 W
3300 W 3300 W
3520 W 3520 W
3300 W 3300 W
3520 W 3520 W
3520 W 3520 W
3520 W 3520 W
3520 W 3520 W
3520 W 3520 W
3520 W 3520 W
WARNING: Even low voltage can cause
irreparable damage or death! Exercise
extreme caution while operating or
10 kg
servicing this equipment.
10 kg
10 kg
13 kg
16 kg
17 kg
IMPORTANT
26 kg
Read this manual carefully
26 kg
13 kg
before installing,
24 kg
operating or servicing this
39 kg
44 kg
• Ensure that reel, cord, and equipment being
serviced are properly grounded. Use an
ohmmeter to check ground continuity.
• If reel ceases to unwind or rewind, remove
power immediately. Do not pull or jerk on
electrical cord!
• Treat and respect the reel as any other piece
of machinery, observing all common safety
practices.
L 70000 L 70000
with bare
pigtail reels
A 514 mm 514 mm
B 502 mm
502 mm
C 198 mm
198 mm
D
98 mm 98 mm
E 298 mm
318 mm
equipment.
Form# 1290-1116 Rev: 10/2018
