ReelCraft L 5000 Series Operating Instructions

Spring driven cord reels

Advertisement

Quick Links

Operating Instructions

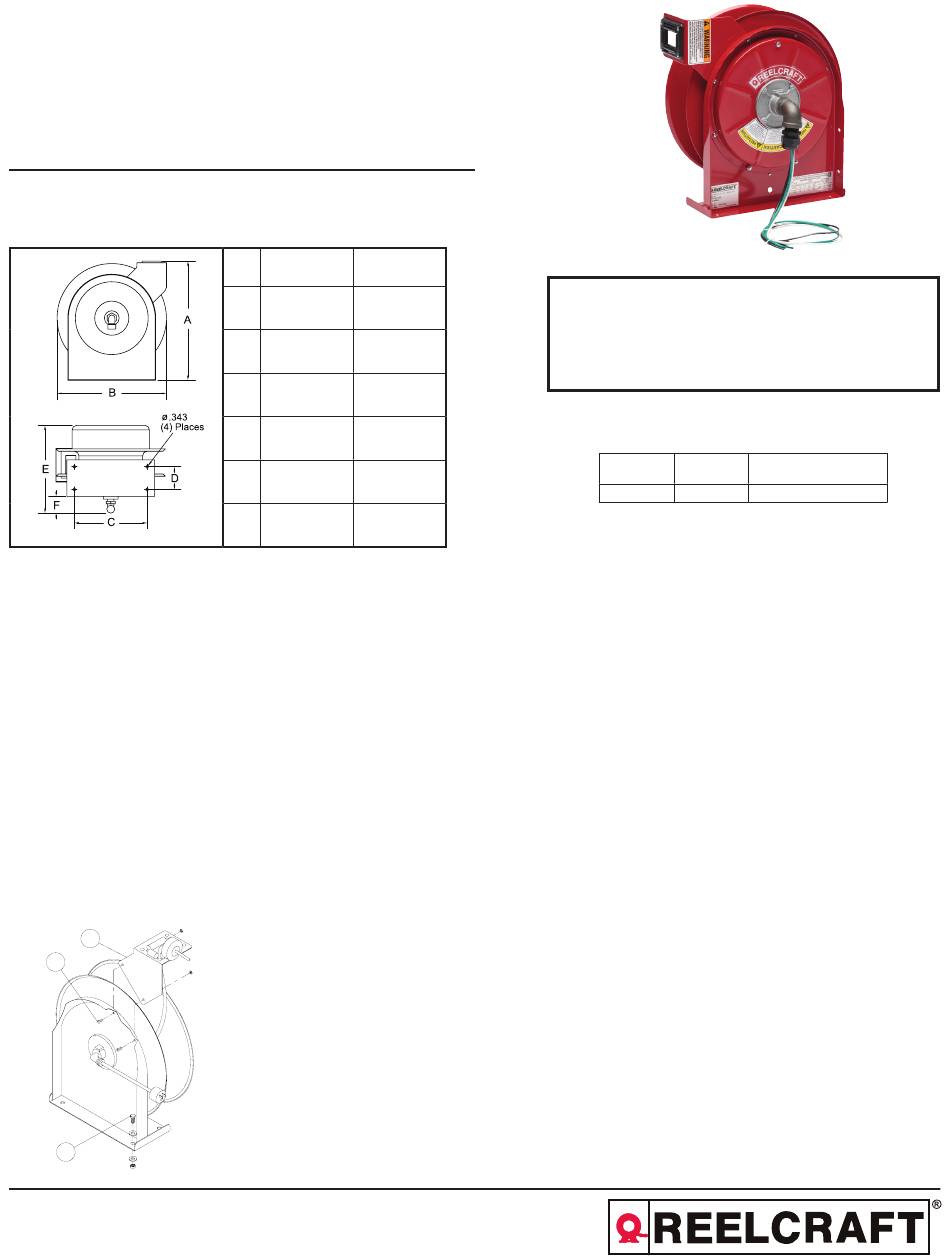

Series L 5000 Spring Driven Cord Reels
L 5000
L 5700
Dimensions - Size Index
Safety Precautions
Personal injury and/or equipment damage may
result if proper safety precautions are not
observed.
• Ensure that only a qualified electrician
installs/services this equipment.
• Ensure that power supply voltage does not
exceed maximum voltage rating of reel.
• Ensure that reel is properly installed before
connecting to power supply.
• All cord reels with flying leads must be hard
wired to ensure proper function.
Installation Instructions
2
1
3
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
L 5750 103 X
1
2
A
14 3/8"
17 5/8"
B
14 1/4"
16 3/4"
C
9 3/4"
9 3/4"
D
2 1/2"
2 1/2"
E
10 1/2"
12 1/2"
F
2 1/8"
2 1/8"
• Ensure that all electrical power is removed
from reel before servicing.
• A high-tension spring assembly is
contained within the reel. Exercise extreme
caution.
• Check for frayed and/or broken wires before
each use. Pull electrical cord from reel by
grasping the electrical cord itself, not the
work device.
• If an electrical malfunction should occur,
remove power from reel immediately.
Mounting
CAUTION: Unless reel was specified differently
when ordering, maximum installation height
is 16 feet. Do not exceed this distance. Ensure
that only a qualified electrician installs/services
this equipment. Installation of GFCI cord reels
should be performed by a qualified and licensed
professional in accordance with building codes
and applicable NEC standards.
1. Unpack and inspect reel for damage. Turn
by hand to check for smooth operation.
Check for completeness.
IMPORTANT
Read this manual carefully before installing,
operating or servicing this equipment.
Electrical Information
Voltage
AMPS
125
30
• Ensure that reel, electrical cord, and
equipment being serviced are properly
grounded. Use an ohmmeter to check
ground continuity.
• If reel ceases to unwind or rewind, remove
power immediately. Do not pull or jerk on
electrical cord!
• Treat and respect the reel as any other piece
of machinery, observing all common safety
practices.
2. Configure reel for top, side or bottom-
wind (bottom-wind for constant tension
reels only) electrical cord dispensing by
removing bolts (1), securing guide arm
bracket (2). Determine new guide arm
location and remove corresponding bolts.
Position guide arm bracket to reel and
replace bolts.
3. Position reel on floor, wall, or ceiling.
Secure into place, using four (customer
supplied) screws or bolts (3).
Frequency
60 HZ Single Phase
Form# Rev: 1318-124 9/2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the L 5000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ReelCraft L 5000 Series

  • Page 1 Check for completeness. Form# Rev: 1318-124 9/2024 Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725 Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605 Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com...
  • Page 2 Assemble cover (6) to reel. defective electrical cord/work device, brush holder/brushes, or collector assembly. Refer any other discrepancies only to an authorized service Installing the Output Electrical Cable person or directly to Reelcraft. WARNING: WIRE COLOR CODE WARNING: Black-Hot The following procedure directs the techician to take voltage White-Neutral measurements.
  • Page 3 Remove wire nuts (11) securing output electrical cable wires to collector assembly brush wires. Remove output electrical cable ground wire from ground lug (12). Loosen U-clamp (9). Remove output electrical cable. Remove bumper stop (13). Install replacement input electrical cable (refer to Installation Instructions). www.reelcraft.com Page 3...
  • Page 4 15 Strain Relief Cover 602846-35 602846-35 602846-35 33 Cord Assembly None None 602418 16 U-Bolt 3-117440 3-117440 3-117440 34 Cord Assembly None None 602928 Hex flange Lock nut Dimension Size Index # - See page 1 261650-1 261650-1 261650-1 1/4-20 Page 4 www.reelcraft.com...

This manual is also suitable for:

L 5000L 5700L 5750 103 x
