Operating Instructions
Series L 4000 Spring Driven Cord Reels
L 4035 163 1
L 4545 123 3
L 4050 163 1
L 4545 123 3-RP
L 4035 162 2
L 4545 123 3A
L 4050 162 2
L 4545 123 3A-RP L 4545 123 7
L 4035 163 3
L 4545 123 3AC
L 4035 163 3-RP
L 4525 123 3B
L 4050 163 3
L 4525 123 3BC
L 4050 163 3-RP
L 4545 123 3B

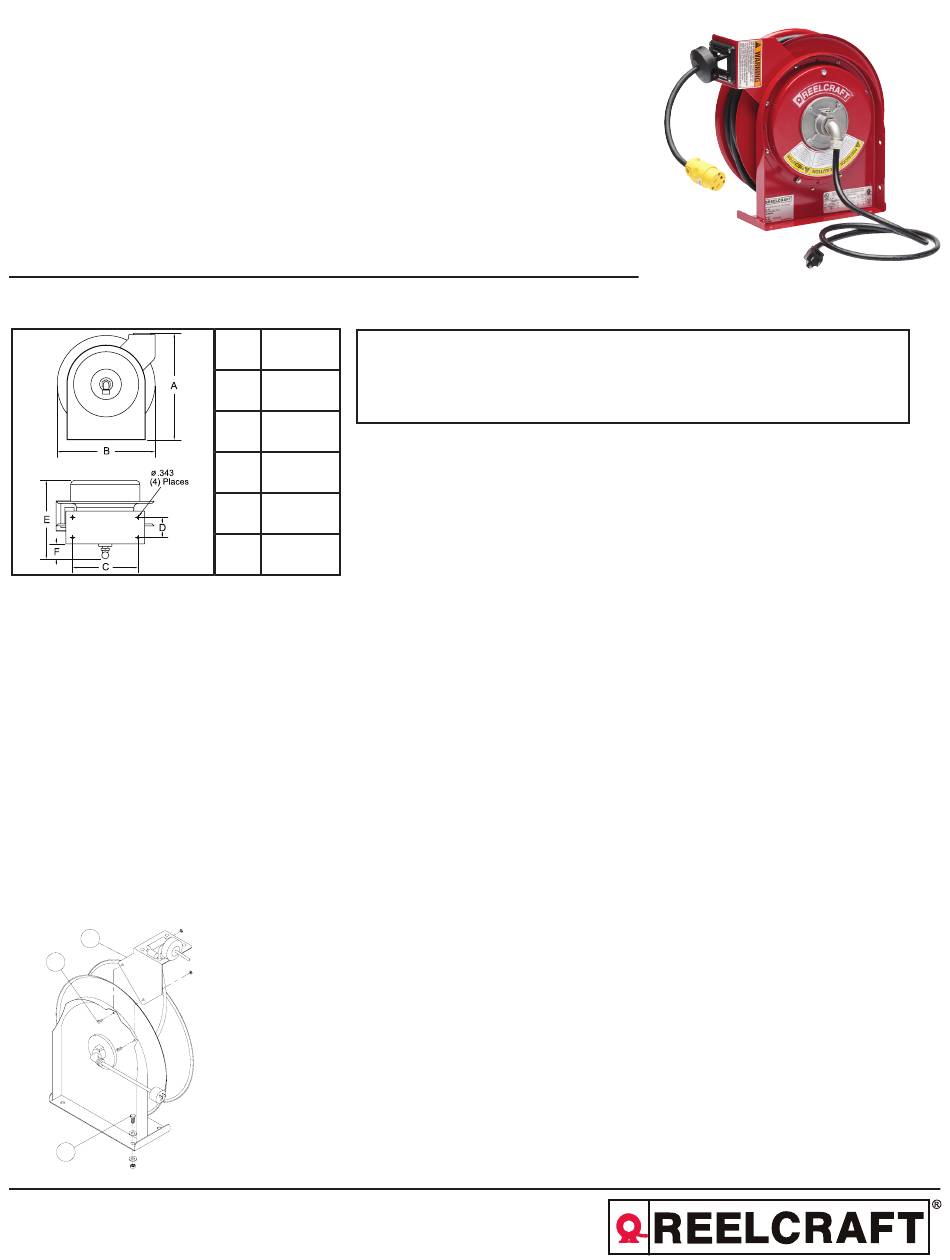

Dimensions
Safety Precautions
Personal injury and/or equipment damage may
result if proper safety precautions are not
observed.
• Ensure that only a qualified electrician
installs/services this equipment.
• Ensure that power supply voltage does not
exceed maximum voltage rating of reel.
• Ensure that reel is properly installed before
connecting to power supply.
• All cord reels with flying leads must be hard
wired to ensure proper function.
Installation Instructions
2
1
3
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
L 4545 123 3BC
L 4035 A 163 5
L 4050 A 163 5
L 4525 123 7A
L 4545 123 7A
L 4545 123 7B
L 4545 123 7Q
A
13 1/4"
Read this manual carefully before installing, operating or
B
12 5/8"
C
8"
WARNING: Even low voltage can cause irreparable damage or death!
Exercise extreme caution while operating or servicing this equipment.
D
2 1/2"
E
9 3/8"
F
1 3/4"
• Ensure that all electrical power is removed
from reel before servicing.
• A high-tension spring assembly is
contained within the reel. Exercise extreme
caution.
• Check for frayed and/or broken wires before
each use. Pull electrical cord from reel by
grasping the electrical cord itself, not the
work device.
• If an electrical malfunction should occur,
remove power from reel immediately.
Mounting
CAUTION: Unless reel was specified differently
when ordering, maximum installation height
is 16 feet. Do not exceed this distance. Ensure
that only a qualified electrician installs/services
this equipment. Installation of GFCI cord reels
should be performed by a qualified and licensed
professional in accordance with building codes
and applicable NEC standards.
1.
Unpack and inspect reel for damage. Turn
by hand to check for smooth operation.
Check for completeness.
L 4035 163 8
L 4545 123 X
L 4050 163 8
L 4000
L 4050 163 9
L 4100
L 4545 123 9
L 4500
L 4545 123 9G
L 4035 163 10
L 4050 163 10
L 4050 163 X
IMPORTANT
servicing this equipment.
• Ensure that reel, electrical cord, and
equipment being serviced are properly
grounded. Use an ohmmeter to check
ground continuity.
• If reel ceases to unwind or rewind, remove
power immediately. Do not pull or jerk on
electrical cord!
• Treat and respect the reel as any other piece
of machinery, observing all common safety
practices.
2.
Configure reel for top, side or bottom-
wind (bottom-wind for constant tension
reels only) electrical cord dispensing by
removing bolts (1), securing guide arm
bracket (2). Determine new guide arm
location and remove corresponding bolts.
Position guide arm bracket to reel and
replace bolts.
3.
Position reel on floor, wall, or ceiling.
Secure into place, using four (customer
supplied) screws or bolts (3).
Form# 542-290 Rev: 7/2021
