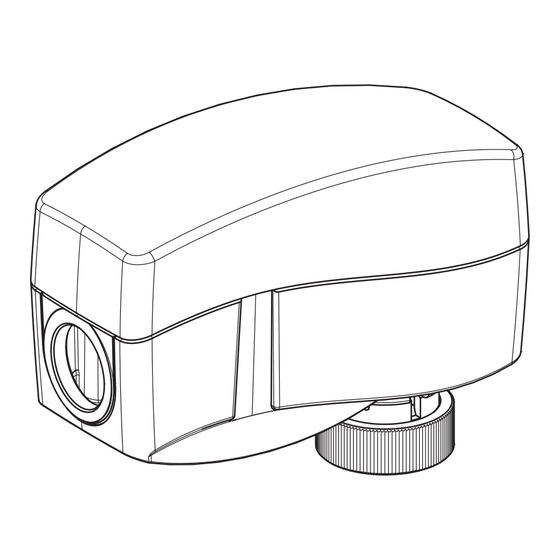

- Page 1 Operating Guide AMV 120 NL-1 / 73694410 AMV 120 NL-1 Stem Travel 5 mm AMV 120 NL-1 + Travel Speed 10 (12) s/mm AB-QM AUTO MAINTENANCE 5-95 % RH 4 – 6 mm × 1 mm no condensing FREE ❶...
- Page 2 (Op onal) ~ AC 24V 50/60Hz AC 24 V Connect via safety isolating transformer. ❸ ⑤ ① ❹ ④ ③ ⑤ ② ① ② ② ① ① AMV 120 NL-1 + AB-QM 2 | © Danfoss | 2024.03 AQ315258770192en-010302...
- Page 3 The ribbed nut should be hand tightened only. Manual override ❹ (for service purposes only) Do not use the manual override if power is connected! AQ315258770192en-010302 © Danfoss | 2024.03 | 3...
- Page 4 AMV 120 NL-1 ІМПОРТЕР: UA: ТОВ з іі «Данфосс ТОВ» 04080, Київ 80, п/с 168, Україна 4 | © Danfoss | DCS-SGDPT/SI | 2024.03 73694410 / AQ315258770192en-010302...
