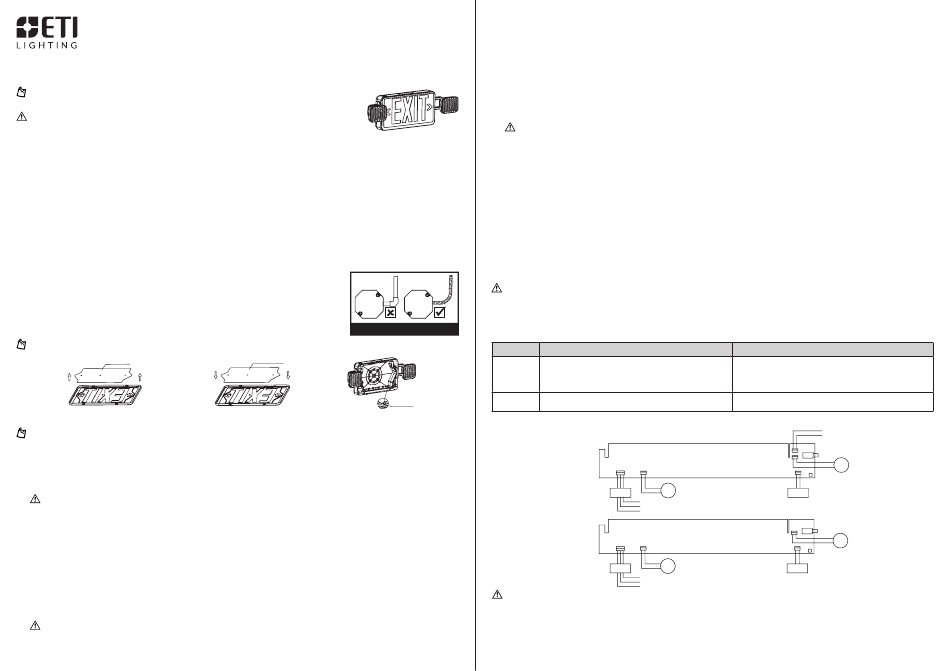

ETI EM-ELC-RG-RC Use And Care Manual

USE AND CARE GUIDE
BICOLOR LED EMERGENCY LIGHT/EXIT SIGN COMBO WITH REMOTE COMPATIBILITY
NOTE: Keep your receipt and these instructions for proof of purchase. Highly recommended to have experienced
electrician install to avoid any possibilities of electrical shock or fire. Please wear gloves and protective Eyewear to
avoid injuries. If any smoke or sparks develop, please turn off power immediately and notify appropriate personnel.
WARNING: Shut off the power at the circuit breaker or fuse panel before removing the old fixture, ballast, or fluorescent
tubes. Do not use any electric generator to test the LED light. Please abide by related country, regional and local law
and regulations when install this fixture. Please turn off the power before installation or maintenance. Proper grounding
is required to ensure safety. Please check if there is any damage during shipping. If so, please contact. Please read the installation instructions carefully
to check whether all the accessories are available. After confirmation, install the LED light according to installation steps. FAILURE TO FOLLOW THESE
INSTRUCTIONS AND WARNINGS MAY RESULT IN DEATH, SERIOUS INJURY OR SIGNIFICANT PROPERTY DAMAGE. For your protection, read and follow
these warnings and instructions carefully before installing or maintaining this equipment. These instructions do not attempt to cover all installation and
maintenance situations. RISK OF ELECTRIC SHOCK- NEVER CONNECT TO, DISCONNECT FROM. OR SERVICE WHILE EQUIPMENT IS ENERGIZED. RISK OF FIRE.
Lamps are hot. Keep combustible material away from hot parts. Observe lamp manufacture' s warnings, recommendations and restrictions on lamp operation
and maintenance. Make sure lamps are correctly installed.
CAUTION: The battery in this unit may not be fully charged. After electricity is connected to unit, let battery charge for at least 24 hours, then normal
operation of this unit should take effect. To check, press the TEST button. The lamps on the unit should turn on.(Refer to OPERATION BATTERY BACK UP for
more testing information)
If you are unfamiliar with electrical installations, we recommend you contact a qualified electrician to do the installation.
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
When using electrical equipment, basic safety precautions should always be followed, including the following.
• Do not use outdoors. Suitable for use in 0°C-40°C(32°F-104°F) indoor damp locations.
• Consult local building code for approved wiring and installation.
• Disconnect AC power before servicing and installation.
• Do not mount near gas or electric heaters.
• Do not use this equipment for anything other than its intended use.
• The use of accessory equipment not recommended by the manufacturer will void product listing and warranty
and may cause an unsafe condition.
• Any service on this equipment should be performed by qualified personnel only.
• Equipment should be mounted in locations and at heights where it will not be subject to tampering by
unauthorized personnel.
• Use caution when servicing batteries.
• Cap unused wires with enclosed wire nuts or other approved method.
• Make sure wire terminations are secure and leads are properly tucked in appropriate wire channels.
NOTE: Max. mounting height: _8.0_ ft (2.4 m).
RED LENS
Remove or re-insert the red lens from/to face plate.
Fig.A
NOTE: EXIT ships standard RED. Refer to Toggle Switch section for GREEN LED configuration.
INSTALLATION INSTRUCTIONS (back mount)
1. Remove EXIT stencil faceplate from housing. Remove RED lens from faceplate (see fig. A). Set aside.
2. Drill or knock out appropriate knockouts on back plate to fit junction box mounting points.
3. Drill or knock out center hole in back plate for EXIT supply wire leads.
4. Route EXIT supply wires through center hole of the back plate and make wiring connection. For 120V, use black and white wires and for 277V, use red
and white wires.
WARNING: Properly insulate the unused lead with a wire nut (provided) or other approved means.
5. Secure back plate to junction box (hardware not included)
6. Remove knockout chevron(s) on faceplate, re- insert RED lens to faceplate (see fig. A) (or GREEN if applicable, see fig. B). Secure EXIT stencil faceplate
back onto housing.
7. Toggle the switchable to select GREEN if applicable (see fig. C).
8. Connect battery only after continuous AC power can be provided to the unit.
9. Apply continuous AC power and press "TEST" button to check operation. (See operation battery back- up for testing procedures)
INSTALLATION INSTRUCTIONS (top mount)
1. Remove EXIT stencil faceplate from housing. Remove RED lens from faceplate (see fig.A). Set aside.
2. Place screws (provided) in holes on the canopy.
3. Remove the mounting hole plug located on the top of the housing.
4. Route EXIT supply wires through mounting hole in top of the housing. Route EXIT supply wires through mounting canopy. Dress wires carefully through
housing.
5. Route wires from junction box through metal mounting plate. Secure mounting plate to junction box (hardware not included).
6. Make wiring connection. For 120V, use black and white wires and for 277V, use red and white wires
WARNING: Properly insulate the unused lead with a wire nut (provided) or other approved means.
7. Push wire connections through middle metal plate and into the J-Box.
8. Secure the canopy to the steel mounting plate with screws installed in step 2.
9. Remove knockout chevron(s) on faceplate, as needed. Re- insert RED lens to faceplate (see fig. A) (or GREEN if applicable, see fig. B). Secure EXIT
Order # 65507101 Part # EM-ELC-RG-RC
FLEXIBLE CONDUIT ONLY
GREEN LENS
Secure the green lens to face plate.
Toggle the switchable button to choose
Fig.B
red or green illumination.
Fig.C
stencil faceplate back onto housing.
10. Toggle the switchable to select GREEN if applicable (see fig. C).
11. Connect battery only after continuous AC power can be provided to the unit.
12. Apply continuous AC power and press "TEST" button to check operation.(See operation battery back- up for testing procedures).
INSTALLATION INSTRUCTIONS
1. Remove EXIT stencil faceplate from housing. Remove RED lens from faceplate (see fig. A). Set aside.
2. Place screws (provided) in holes on the canopy.
3. Remove the lamp head from the housing on the desired mounting position. Disconnect the lamp head wires from the lamp pc board.Set lamp head
aside.
4. Route EXIT supply wire through mounting hole in side of the housing where the lamp head was removed. Route EXIT supply wire through mounting
canopy. Dress wires carefully through housing.
5. Route wires from junction box through metal mounting plate. Secure mounting plate to junction box (hardware not included).
6. Make wiring connection. For 120V, use black and white wires and for 277V, use red and white wires.
WARNING: Properly insulate the unused lead with a wire nut (provided) or other approved means.
7. Push wire connections through middle metal plate and into the J-Box.
8. Secure the canopy to the steel mounting plate with screws installed in step 2.
9. Remove proper chevron(s) on faceplate, re- insert RED lens to faceplate, see fig. A. (or GREEN if applicable, see fig. B). Secure EXIT stencil faceplate
back onto housing.
10. Toggle the switchable to select GREEN if applicable (see fig. C).
11. Connect battery only after continuous AC power can be provided to the unit.
12. Apply continuous AC power and press "TEST" button to check operation. (See operation battery back- up for testing procedures).
RELOCATE LAMP HEAD TO TOP OF HOUSING
1. Remove the mounting hole plug located on the of the housing.
2. Snap lamp head that was removed from the side of the housing into the mounting hole plug located on the top of the housing.
3. Route lamp head wires through housing channels and make connection on the lamp pc board.
OPERATION (battery backup)
1. Apply AC power to the unit. Connect the battery to the PCBA. The LED indicator will be RED.
2. After the battery has been left to charge for 24 hours, test the unit by pushing the switch. The LED indicator turns OFF and the LED board stays ON.
3. When the switch is released, the LED indicator turns back to RED and LED board stays ON.
MAINTENANCE
CAUTION: Always turn off AC power to the equipment before servicing. Servicing should be performed by a qualified service technician. Use only
MANUFACTURER supplied replacements parts.
BATTERY: The battery supplied requires no maintenance. However, it should be tested periodically and replaced when it no longer operates the
connected sign for the duration of a 30-second or 90-minute test. The battery supplied in this sign has a typical life of 5 years when used in a normal
ambient temperature of 72° F.
LED STATUS INDICATOR KEY AND TROUBLESHOOTING
Visual Status Indication
1. Battery connection is not made.
Fixture will
2. Battery has been diagnosed as dead or defective after 24
not turn on
hours of continuous charging with AC power supplied.
3. AC power has not been supplied.
Switchable
Battery is connected, AC power has been supplied and fixture is
RED
button
in charging state.
WIRING DIAGRAM
HIGH OUTPUT
STANDARD
WARNING: Carefully read the information given in this manual before beginning the assembly and installation. Failure to do so could lead to electric
shock, fire, or other injuries which could be hazardous or even fatal. • Ensure power to the fixture(s) you are working on is shut off. Either remove the
fuse or turn off the circuit breaker.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
See website for Warranty, Troubleshooting or Care and Cleaning details at www.ETiSSL.com.
Questions, problems, missing parts? Call ETiSSL Customer Service 8 a.m. - 5 p.m., CST, Monday - Friday
(side mount)
Troubleshooting/Actions to Take
1. Make connection: or if battery is connected,disconnect battery
for eight seconds and then reconnect.
2. Replace the battery.
3. Supply AC power.
This is the normal state. No action required.
PCB/LED BOARD
BLUE(-)
YELLOW(+) LAMP
BATTERY
TRANSFORMER
RED(277V)
BLACK(120V)
WHITE(COM)
PCB/LED BOARD
BLUE(-) +
LAMP
YELLOW(+)
TRANSFORMER BATTERY
RED(277V)
BLACK(120V)
WHITE(COM)
1-855-ETI-SSLI (1-855-384-7754) www.ETiSSL.com
BLUE(-)
YELLOW(+) To Remote Head
TEST
BLUE(-)
LAMP
YELLOW(+)
"READY"LIGHT
+ -
TEST
BLUE(-)
YELLOW(+) LAMP
"READY" LIGHT
-
