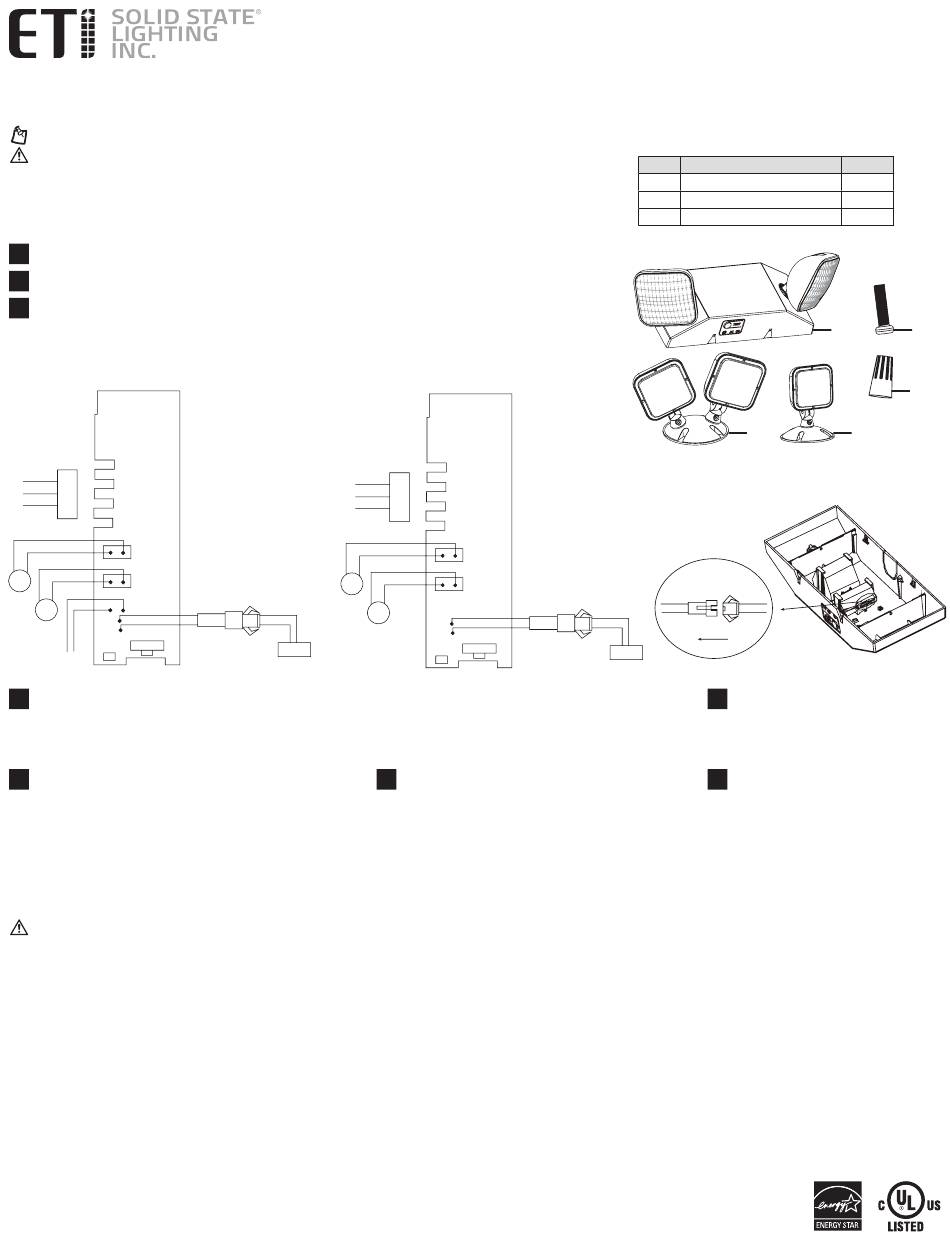

nOtE: Keep your receipt and these instructions for proof of purchase.
WaRninG: Shut off the power at the circuit breaker or fuse panel before removing the old fixture, ballast, or fluorescent
tubes.
If you are unfamiliar with electrical installations, we recommend you contact a qualified electrician to do the installation.
INSTALLATION
Fixture is furnished with a dual voltage 120V/277V field selectable input.
Shut off power at the electrical panel before beginning the installation.
1
Remove existing fixture and set aside to recycle in accordance with local requirements.
2
Remove the back plate. Feed wires through a knock out hole in the back plate. Use screws to secure the back plate
3
to either an electrical box or to the wall.
Part#/Model# EM-EL-RC/55501201,
EM-ELR-H1/55503101, EM-ELR-H2/55503201
AC Input
Connector
Charger
(Mounting
Board
Plate)
277v Red
120v Black
0v White
Yellow(+)
Blue(-)
Yellow(+)
Blue(-)
Lamp
Yellow(+)
Blue(-)
Lamp
To Remote
Test
Ready
Make the electrical connections.
4
Use wire connectors* to cover the wire connections and wrap with electrical tape.
nOtE: Use 18-22 AWG standard wire to connect remote lamp heads.
Snap the fixture and back plate together.
6
WaRninG: Carefully read and understand the information given in this manual before beginning the assembly and installation. Failure to do so could lead to electric shock, fire,
or other injuries which could be hazardous or even fatal. • Ensure the electricity to the wires you are working on is shut off. Either remove the fuse or turn off the circuit breaker. •
The battery in this unit may not be fully charged. After electricity is connected to unit, let battery charge for at least 24 hours, then normal operation of this unit should take effect. To
check, press TEST button. The LED lamps should turn ON. During an electrical power failure, the LED lamps will automatically come on for a minimum of 90 minutes. In accordance
with NFPA 101, your emergency lighting system must be tested monthly for a minimum of 30 seconds and annually for 90 minutes. Refer to your local codes for any additional
requirements that may apply. • Do not use outdoors. • Equipment should be mounted securely in locations and at heights where it will not be readily subjected to tampering by
unauthorized personnel. • Do not mount near gas or electric heaters. • Cap unused wires with enclosed with wire nuts or other approved method. • Do not use this equipment for
anything other than its intended use. • The use of accessory equipment not recommended by the manufacturer will void product listing and warranty and may cause an unsafe
condition. • Disconnect AC power before servicing and installation. • Consult local building code for approved wiring and installation. • Use caution when servicing batteries. • Any
service on this equipment should be performed by qualified personnel only. • Make sure wire terminations are secure and leads are properly tucked in appropriate wire channels.
nOtiCE: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna, increase the separation between the equipment and the receiver, connect the equipment into an outlet on a circuit different from that to which
the receiver is connected, and consult the dealer or an experienced radio/TV.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
See website for Warranty, Troubleshooting or Care and Cleaning details at www.ETiSSL.com.
UsE and CaRE GUidE
LEd EMERGEnCy LiGHt
Part#/Model# EM-EL/55501101
AC Input
Connector
(Mounting
Plate)
277v Red
120v Black
0v White
Yellow(+)
Blue(-)
Yellow(+)
Blue(-)
Lamp
Red
Lamp
Black
Battery
7
Questions, problems, missing parts? Call ETiSSL Customer Service 8 a.m. - 5 p.m., CST, Monday - Friday
1-855-ETI-SSLI (1-855-384-7754) www.ETiSSL.com
Charger
Board
Test
Ready
Restore power.
Model # 55501101, 55501201, 55503101, 55503201
Part # EM-EL, EM-EL-RC, EM-ELR-H1, EM-ELR-H2
Certification # 55501101, 55501201, 55503101, 55503201
PAckAgE cONTENTS
Part
Description
A
Fixture (Sold Separately)
B
Screw*
C
Wire Connector*
* For model # 55501101/55501201 only
A
Battery
Connector
Red
Black
Plug-In
Battery
Connect the battery.
5
Emergency Light Test:
8
• Press the Test button.
• The light will turn on.
• Release the Test button to end the
test.
nOtE: During an electrical power
failure, the fixture will automatically turn
on for a minimum of 90 minutes.
