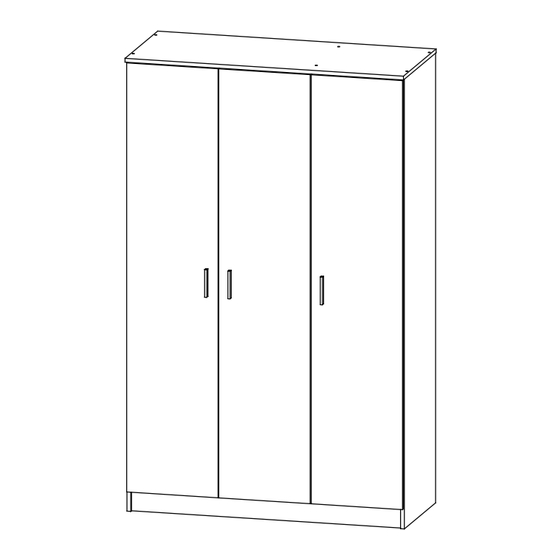

OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS
Thank you for purchasing the Ottawa 3 Door Wardrobe.
Please read the instructions carefully to ensure safe operation of this product.
Size:
110 x 46.5 x 180.5 cm (WDH)
Colours:
Gloss Black-Walnut or Gloss White-White or Gloss Black-Black
or Gloss White-Oak
Finish:
Gloss Resin Painting - Melamine Carcass
PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction.
Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not
destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
CAUTION: There are small components used in the construction of this unit. These loose items should be
kept away from young children whilst assembling your unit to avoid the danger of choking.
Tools Required
Number of people
Batch No. 271601
PO No :
5791
Page 1 of 14
x2
1.5 Hour
Set Up
Advertisement
Related Manuals for GFW OTTAWA 271601
Summary of Contents for GFW OTTAWA 271601
- Page 1 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS Thank you for purchasing the Ottawa 3 Door Wardrobe. Please read the instructions carefully to ensure safe operation of this product. Size: 110 x 46.5 x 180.5 cm (WDH) Colours: Gloss Black-Walnut or Gloss White-White or Gloss Black-Black or Gloss White-Oak Finish: Gloss Resin Painting - Melamine Carcass...
-
Page 2: Care Information
OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS IMPORTANT - READ CAREFULLY - RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. INFORMATION This product is designed to hold 30Kg in total. Do not exceed this weight. We recommend that this unit is assembled in the room intended for use. When you are ready to start, make sure that you have the right tools, plenty of space and a clean, dry area for assembly. - Page 3 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS Parts and Fittings Checklist Please check the pack contents before assembling the product. If any components are missing, please contact your retailer. The fittings pack contains small items that should be kept away from small children.
- Page 4 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS Parts are packed in two cartons Description: Top Panel Description: LH Side Panel Description: RH Side Panel Qty: 1 Qty: 1 Qty: 1 Carton No: 1/2 Carton No: 1/2 Carton No: 1/2 Description: Centre Divider Description: Base Panel Description: Plinth Qty: 1...
-
Page 5: General Hints & Tips
OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS Fittings (to scale) Code Item Quantity Cam Bolt (35mm overall) Cam Lock Dowe l (8x30mm) Carcass Screw for fitting Top & Divider Panels (M7x50mm) Screws for Fitting Hinge, Hanging Rail Support, Back Panel & Anti-tilt Wall Strap (3.5x12.5mm) Bolt for Fitting Handle... - Page 6 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS Fittings (not to scale) Code Item Quantity Handle Allen Key (4mm) Support for Hanging rail Hinge for Side Doors Door Buffer Hanging Rail Anti-tilt Wall Strap Hinge for Middle Door Batch No. 271601 Page 6 of 14...
- Page 7 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS STEP 1 For this step: Tools required Fittings required A x2 Tighten B x2 STEP 2 For this step: Tools required Fittings required A x10 Batch No. 271601 Page 7 of 14...
- Page 8 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS STEP 3 For this step: Tools required Fittings required C x2 D x2 STEP 4 For this step: Tools required Fittings required A x18 Batch No. 271601 Page 8 of 14...
- Page 9 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS STEP 5 For this step: Tighten Tools required Fittings required B x28 C x20 STEP 6 For this step: Tools required Fittings required E x4 Q x2 T x1 Batch No. 271601 Page 9 of 14...
- Page 10 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS STEP 7 For this step: Tools required Fittings required C x6 D x6 STEP 8 For this step: Tools required Fittings required G x48 E x26 Batch No. 271601 Page 10 of 14...
- Page 11 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS STEP 9 For this step: Tools required Fittings required E x18 R x6 V x3 Batch No. 271601 Page 11 of 14...
- Page 12 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS STEP 10 For this step: Tools required Fit Doors in Position Fit x2 screws (E) in centre of long holes Fittings required E x18 MAKE SURE WARDROBE IS LEVEL IF DOORS NEED ADJUSTING, CAREFULLY FOLLOW THESE STEPS Left or right In or Out Up or Down...
- Page 13 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS STEP 11 For this step: Tools required Fittings required F x6 M x3 S x6 STEP 12 For this step: Note: We recommend the use of the wall strap provided (U) to avoid accidents and possible fatal injuries if the item falls over or tips over during use.
- Page 14 OTTAWA 3 DOOR WARDROBE ASSEMBLY INSTRUCTIONS Assembly Completed 3 Door Wardrobe Your Ottawa is now completely assembled. Periodically check to ensure that the components are in their proper position, free from damage. Also, make sure the connectors are tight and secure. Keep instructions for future reference Batch No.
