PROFESSIONAL MEDICAL PRODUC T
LAMPADA LED PER FOTOTERAPIA INFANTILE - su carrello
LED INFANT PHOTOTHERPY LIGHT - trolley
LAMPE LED DE PHOTOTHÉRAPIE INFANTILE - sur socle à roulettes
LUZ LED FOTOTERAPIA INFANTIL - carro

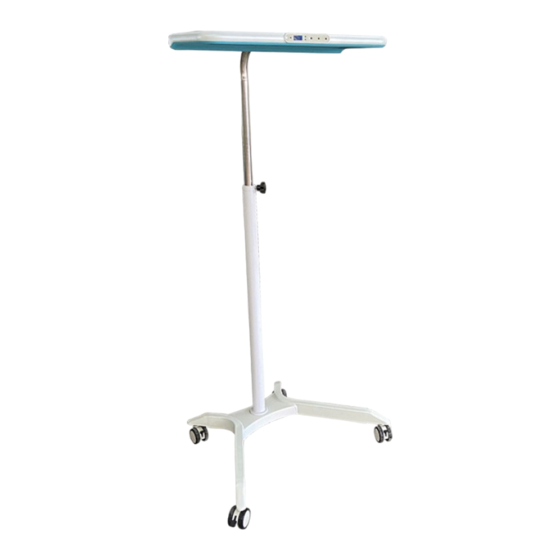

KS-IP48 (GIMA 31192)
Shantou Easywell Electronic Technologies Co., Ltd
5th Floor and No.1 West Side Of 6th Floor, H5 Industrial
Building, No.16 Lianjiang Road, Longhu District, Shantou,
China - Made in China
Kingsmead Service B.V.
Zonnehof 36, 2632 BE, Nootdorp, Netherland
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gima KS-IP48
Summary of Contents for Gima KS-IP48
- Page 1 LED INFANT PHOTOTHERPY LIGHT - trolley LAMPE LED DE PHOTOTHÉRAPIE INFANTILE - sur socle à roulettes LUZ LED FOTOTERAPIA INFANTIL - carro KS-IP48 (GIMA 31192) Shantou Easywell Electronic Technologies Co., Ltd 5th Floor and No.1 West Side Of 6th Floor, H5 Industrial Building, No.16 Lianjiang Road, Longhu District, Shantou,...
-
Page 2: Table Of Contents
ENGLISH User Notice .................2 Guarantee ..................2 Operation Precautions ..............3 Phototherapy Precautions ............3 Regular Safety Inspection ............4 1. Symbols and definitions ............4 1.1. Symbol ..................4 1.2. Definitions ................5 2. Overview .................5 2.1. Product features ..............5 2.2. Model division ...............6 2.3. Main structure ................6 2.4. -
Page 3: Operation Precautions
ENGLISH Damage to the surface of the instrument is not included in the scope of repair or replacement. The cost of supply of training materials, etc. is not included. The company is not responsible for damage caused by other instruments or unauthorized connection of other instruments. -
Page 4: Regular Safety Inspection
ENGLISH Regular Safety Inspection ● Before starting to use, the performance and mechanical integrity of the product should be tested, and at least once every 12 months thereafter, and a record should be made during the test. ● The area between the power plug terminals should be cleaned at least once a year. If dust accumulates between the power plug terminals, it may cause a fire. -
Page 5: Definitions
ENGLISH 1.2. Definitions ● Infant phototherapy equipment The main radiation spectrum emitted is in the range of 400nm to 550nm, which is used to reduce the concen- tration of bilirubin in infants.。 ● Effective light area The surface used to place the patient in a designated position, and the surface is irradiated by the phototherapy equipment. -
Page 6: Model Division
ENGLISH 2.2. Model division KS - Numbers of lampbulbs Abbreviation of Phototherapy Enterprise medical lamp series 2.3. Main structure The product is mainly composed of blue light source, control box, supporting part and base. 2.4. Intended Use It is used for the treatment of jaundice caused by excessively high blood bilirubin concentration in newborns caused by pathological and/or physiological factors. - Page 7 ENGLISH When the blue light is turned on alone, the effective area of the neonatal blue light therapy device should not be less than 24X40CM at a distance of 35cm from the radiation output surface. At 50cm away from the radiation output surface, the effective area should not be less than 30X40CM. 3.2.5Maximum total bilirubin irradiance Maximum total bilirubin irradiance: The output light power of the neonatal blue light therapy instrument should be adjustable in 5 levels.
-
Page 8: Installation And Use
ENGLISH 3.2.12. Measurement equipment integration Ebi integration calibration curve 4. Installation and use 4.1. Product installation diagram Description of parts Quantities the upper side of lamp holder LED light source panel Transparent pmma board the down side of lamp holder Connector of holder Stainless steel rod Fasten circle of lifting... -
Page 9: Instruction
ENGLISH 1. Take out the base and wheels, and 2. The wheels are installed 3. Take out the lift riser install the 4 wheels on the base. 4. Insert the riser into the fixing 5. Fix the 3 screws at the bottom 6. -
Page 10: Precautions Before Operation
ENGLISH a. Take out the adapter, insert the connector into the interface on the control box, and rotate the fixing ring to fix it. The adapter plugs into the AC220’s power supply. b. Lightly press the blue light switch on the control panel of the lamp head, press the blue light timing setting button, you can see the timing time on the display screen, there are 6 levels in total, each level is 10 minutes, and the longest time is 60 minutes. -
Page 11: Cleaning And Maintenance
ENGLISH can count normally. ● The jaundice treatment device should be used at an ambient temperature of +10℃—+40℃. It cannot be used in an environment with direct sunlight, strong electromagnetic fields or other radiation sources, otherwise it will affect the patient. ●... -
Page 12: Maintenance
ENGLISH be cut off, and the power switch of the equipment must be turned off. The following cleaning solvents can be used safely： General formula Maximum concentration Sodium hypochlorite (bleached) 0.5% aqueous solution Glutaraldehyde hydrogen peroxide Iodine solution 0.27% Caution a. -
Page 13: Storage And Transportation
Disposal: The product must not be disposed of along with other domestic waste. The users must dispo- se of this equipment by bringing it to a specific recycling point for electric and electronic equipment. GIMA WARRANTY TERMS The Gima 12-month standard B2B warranty applies.
