LAMP REPLACEMENT

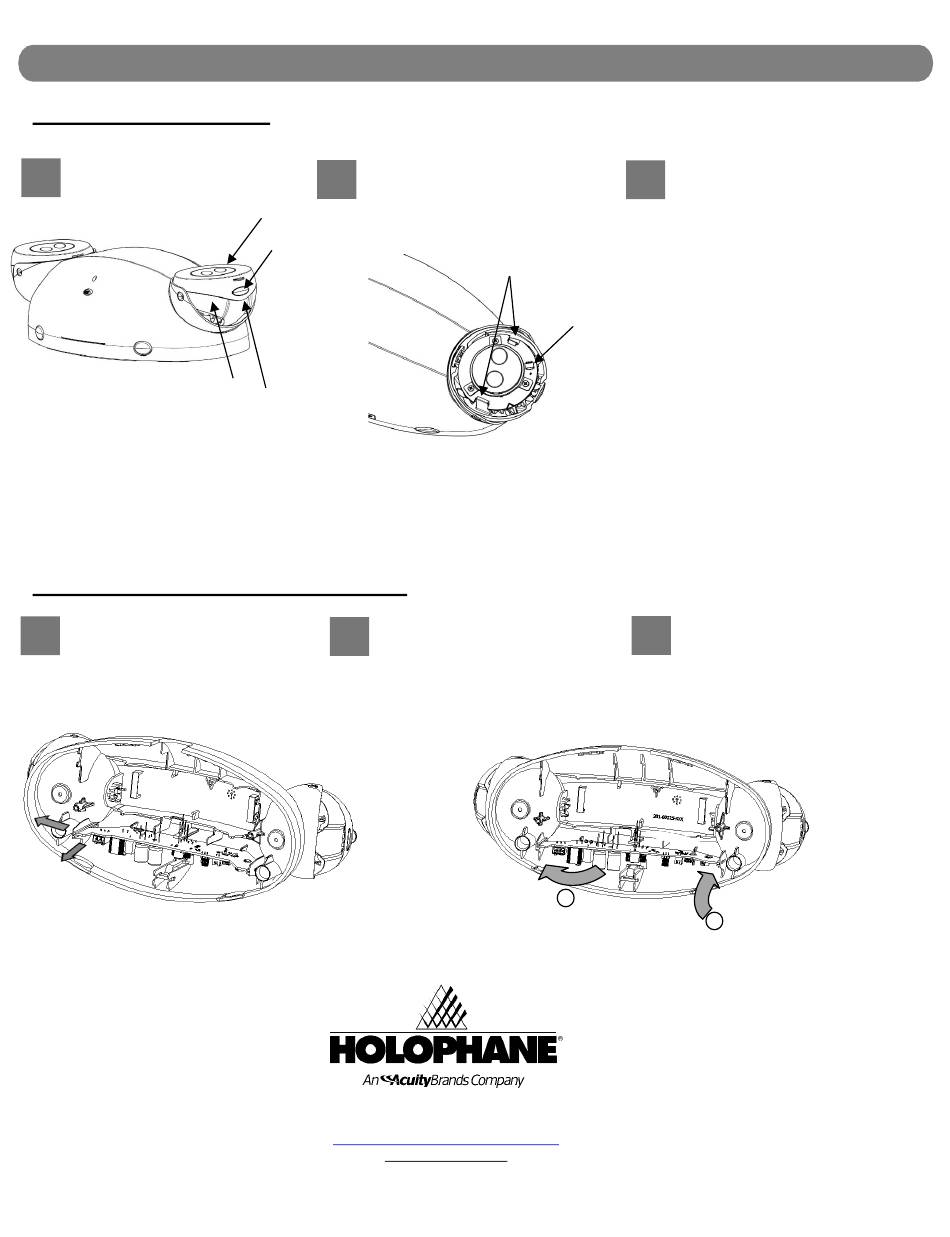

Remove lamp bezel as shown below.
1
CHARGER BOARD REPLACEMENT
With the unit oriented as in the below
1
view, flex the channel outward to
release and remove it. Unplug the
battery, lamps, and other connections
at the left end of the charger board
TESTING and MAINTENANCE (CONTINUED)
Gently bend the snap at each side of
2
the collar to release the lamp
assembly.Unplug the connector from
the lamp assembly.
Bezel
Collar button
Collar
Carefully flex this
edge free from
collar button
Re-connect all components to the
2
new charger board, routing wires
as before. For insertion of PCB,
insert right side of PCB first,
followed by left side (click should
be heard).
LIFE SAFETY SOLUTIONS
techsupport-lighting@acuitybrands.com
www.Holophane.com
Release snaps gently
Connector
2
TEL: 740-345-9631
Route the lamp wires through one of
3
the center spaces under the new
lamp assembly, and replace it firmly
under the snaps on the collar,
making sure the wires are not
pinched. Plug the lamp connector
and replace the bezel
Make sure all wires are routed as
3
before, so as not to interfere with
proper assembly of the housing
onto the mounting plate.
Reassemble the unit (see also step
5 and 6, page 4).
