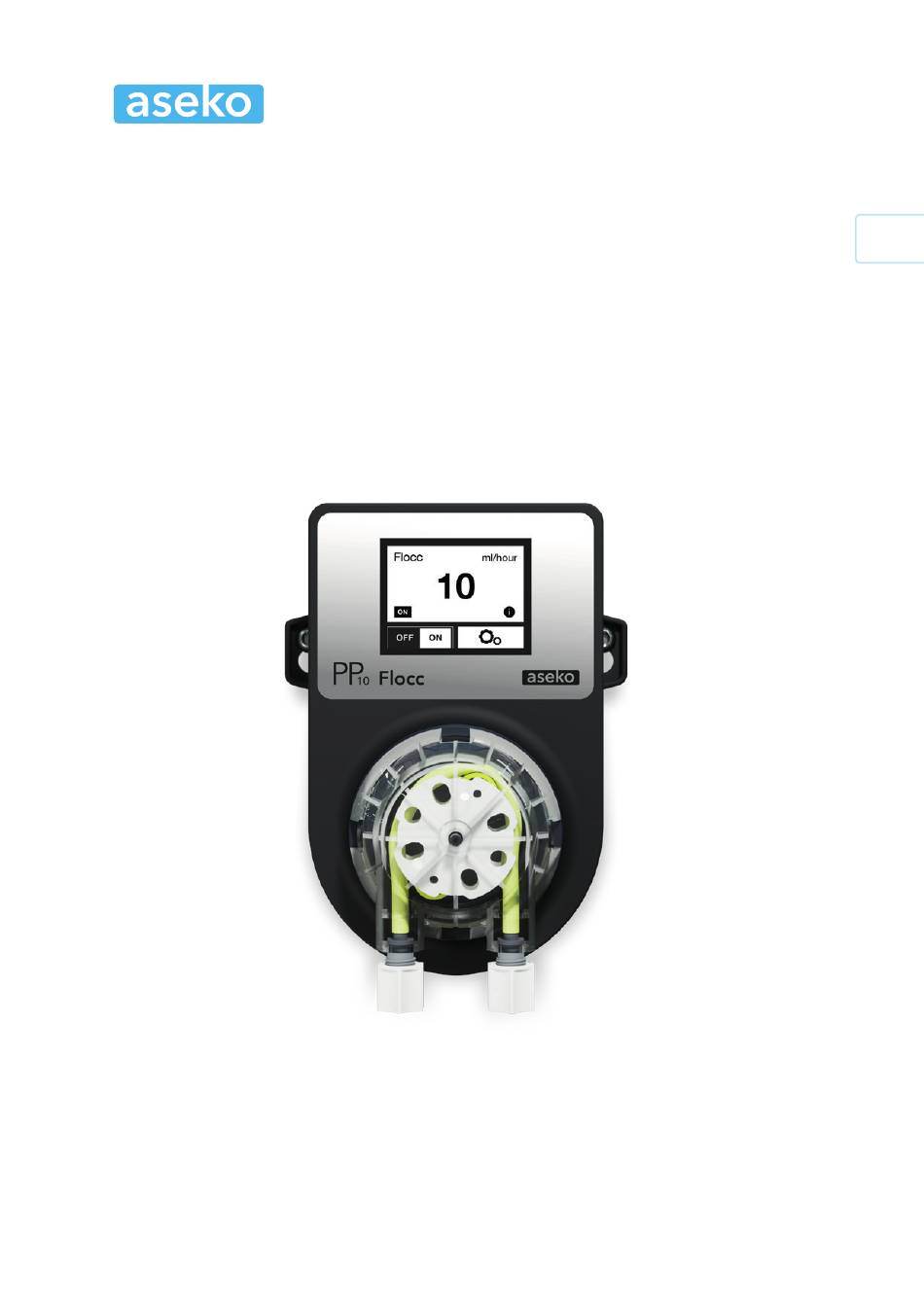

- Page 1 USER MANUAL PP10 Flocc PROGRAMMABLE PERISTALTIC PUMP FOR SLOW CONTINUOUS DOSING www.asekopool.com...
-
Page 2: General Safety Information
General safety information This user manual contain basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. Additionally, all further safety information in this document absolutely must be observed. - Page 3 The chemicals used with the PP10 must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protective safety equipment when handling the pH and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).
- Page 4 What’s in the box PP10 Flocc #13260 Peristaltic pump #12117 Injection valve Suction tube weight #12005 #12023 Dowels and screws PE Tube 1/4” (6.35 mm) transparent #12008...
-
Page 5: Optional Accessories
Optional accessories Inserting DN50 plug 1/4” threaded Coagulation mixer #12134 # 30001 ASEKO Pool Tester #12170 ASEKO original chemicals FLOC+C 5l FLOC+C 20l #12138 #12139... -
Page 6: Technical Description

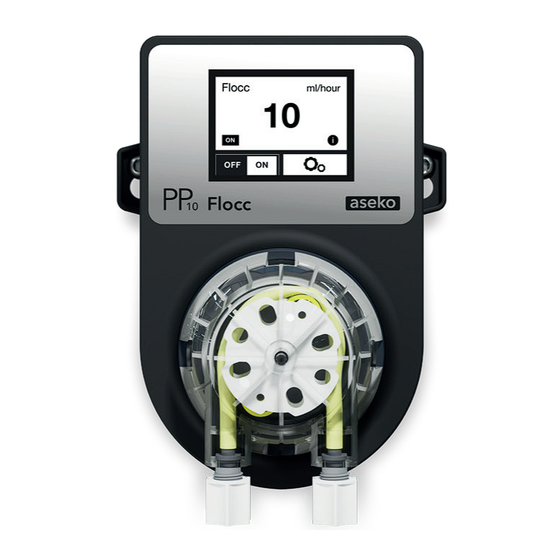

PP10 Flocc Effective coagulation and flocculation happens only with continuous dosing. The peristaltic pump PP10 Flocc is designed to dose FLOC+C but also other flocculants and coagulants. Especially for treatment of the swimming pool water and hot tubs. The pump enables to preset the dosing volume per hour. - Page 7 40 cm 40 cm from +5 °C to +40 °C. 40 cm Direct sunlight, high humidity and dust may lead to damage to PP10 Flocc. 40 cm 40 cm • Before installing, ensure that pool water is chemically clean and free...
- Page 8 Max 8 m Max 8 m Sampling point Coagulation mixer FROM POOL Besgo TO POOL Heating...
- Page 9 Connect the FLOC+C INJECTION VALVE to the pipe before the coagula- T-joint tion mixer and before the filter. To connect reagents from cans to the PP10 Flocc and from the PP10 Flocc to the injection valves use PE Tube 1/4 “(6.35 mm) #12008, which is part of the packaging.
- Page 10 Orientation in the menu When the mains cable is plugged in, the touch display of the device lights up. Dosing mode Dosed amount The pump status – ON. OFF - Dosing is turned OFF. Enter the settings. ON - Dosing is turned ON. Back to home screen...
-
Page 11: Initial Setup
Initial setup PP10 is switched on by connecting to the power supply. PP10power supply must be connected together with the power supply of the circulation pump. Switching off the circulation pump must switch off the PP10, otherwise incor- rect dosing would occur. Turn on the unit Select prefered language. - Page 12 Errors Agent run out • Check liquid levels on a regular basis, refill in time. Dosing pump does not dose • Leakage in connection of PE tubes or they are damaged. • Failure of dosing pump. Check whether pump is running. If so, check the hose inside the pump for damage or breakage and replace it, if required.
- Page 13 PP10 maintenance To ensure the optimum efficiency, perform visual checks and maintenance of PP10 on a regular basis. #12073 Replacement tube kit for PP Pump hose replacement To prevent the pump from failing, it is recommended to replace the hose #12073 every 24 months.
- Page 14 Storage of the PP10 Flocc Disconnect the PP10 Flocc mains cable from the 230 V / 50 Hz socket. Move the PP10 Flocc unit in a place where the temperature is between +5 - +40 °C and the humidity does not exceed 70%.
- Page 15 Enhancement of filtering efficiency activated filter media ® AFM is direct substitute for filter sand. It doubles efficiency of the existing filtration system. AFM is resistant to biological pollution and formation of ® so-called bio-film. coagulation mixer ® ZPM increases effects of coagulation and flocculation for transition of smaller dissolved solids (turbidity) to larger particles that can be removed by filtering.
- Page 16 USER’S MANUAL PP10 www.asekopool.com...
