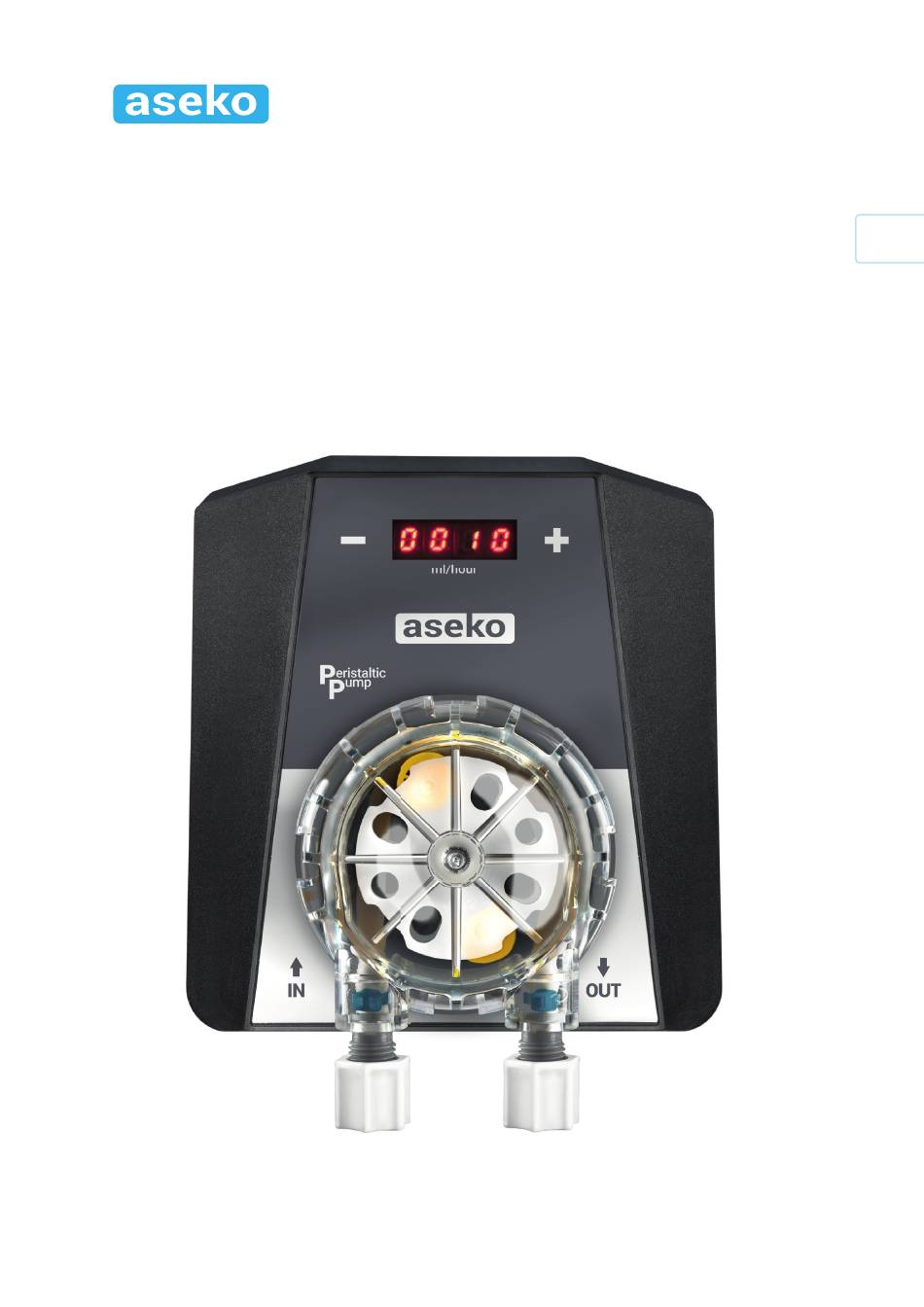

- Page 1 USER MANUAL PP10 PROGRAMMABLE PERISTALTIC PUMP FOR SLOW CONTINUOUS DOSING www.asekopool.com...
-
Page 2: General Safety Information
General safety information This user manual contain basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. Additionally, all further safety information in this document absolutely must be observed. - Page 3 The chemicals used with the ASIN Aqua must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protective safety equipment when handling the pH and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).
-
Page 4: What's In The Box
What’s in the box PP10 #13260 PP10 #13260 Peristaltic pump #12117 Peristaltic pump #12117 Injection valve 2 pcs Suction tube weight 2 pcs #12005 #12023 Dowels and screws PE Tube 1/4” (6.35 mm) transparent #12008... -
Page 5: Optional Accessories
Optional accessories Inserting DN50 plug 1/4” threaded Coagulation mixer #12134 # 30001 # 30001 ASEKO original chemicals FLOC+C 5l FLOC+C 20l #12138 #12139... -
Page 6: Technical Description
The PP10 12V variant has no display and continuously doses 10 ml / m. PP10 12V is designed for connection to the ASIN Aqua Profi control system. - Page 7 PP10 is to be wall mounted in dry and dust-free environment with 40 °C temperature ranging from +5 °C to +40 °C. For mounting, use holes that are accessible after opening the front cover of the PP10. Select location so that 40 °C 5 °C free space at least 40 cm in all directions and height above fl...
- Page 8 Pool Chemicals Connection At this step is necessary to connect the injecting valves of chemicals to the dosing pump and dosed agent. Place the injecting valve in the T-joint, blinded with the DN50 G1/4” threaded plug #12134. Cut the PE tube at 90 ° angle to ensure proper fi tting. •...
- Page 9 Max 8 m Max 8 m Sampling point Coagulation mixer FROM POOL Besgo TO POOL Heating...
-
Page 10: Initial Start
Initial start PP10 is switched on by connecting to the power supply. PP10power supply must be connected together with the power supply of the circulation pump. Switching o the circulation pump must switch o the PP10, otherwise incor- rect dosing would occur. - Page 11 Errors Agent Run Out • Check liquid levels on a regular basis, refi ll in time. Dosing Pump does not Dose • Leakage in connection of PE tubes or they are damaged. • Failure of dosing pump. Check whether pump is running. If so, check the hose inside the pump for damage or breakage and replace it, if required.
- Page 12 • Insert the lubricated hose into the cassette. • Place the cover cassette back on PP10 and turn it clockwise to lock it. • Use new nuts, which are part of the replacement hose set, for connection of the PE tube.
- Page 13 Enhancement of fi ltering effi ciency activated fi lter media ® AFM is direct substitute for fi lter sand. It doubles e ciency of the existing fi ltration system. AFM is resistant to biological pollution and formation of ® so-called bio-fi lm. coagulation mixer ®...
- Page 16 USER’S MANUAL PP10 www.asekopool.com...
