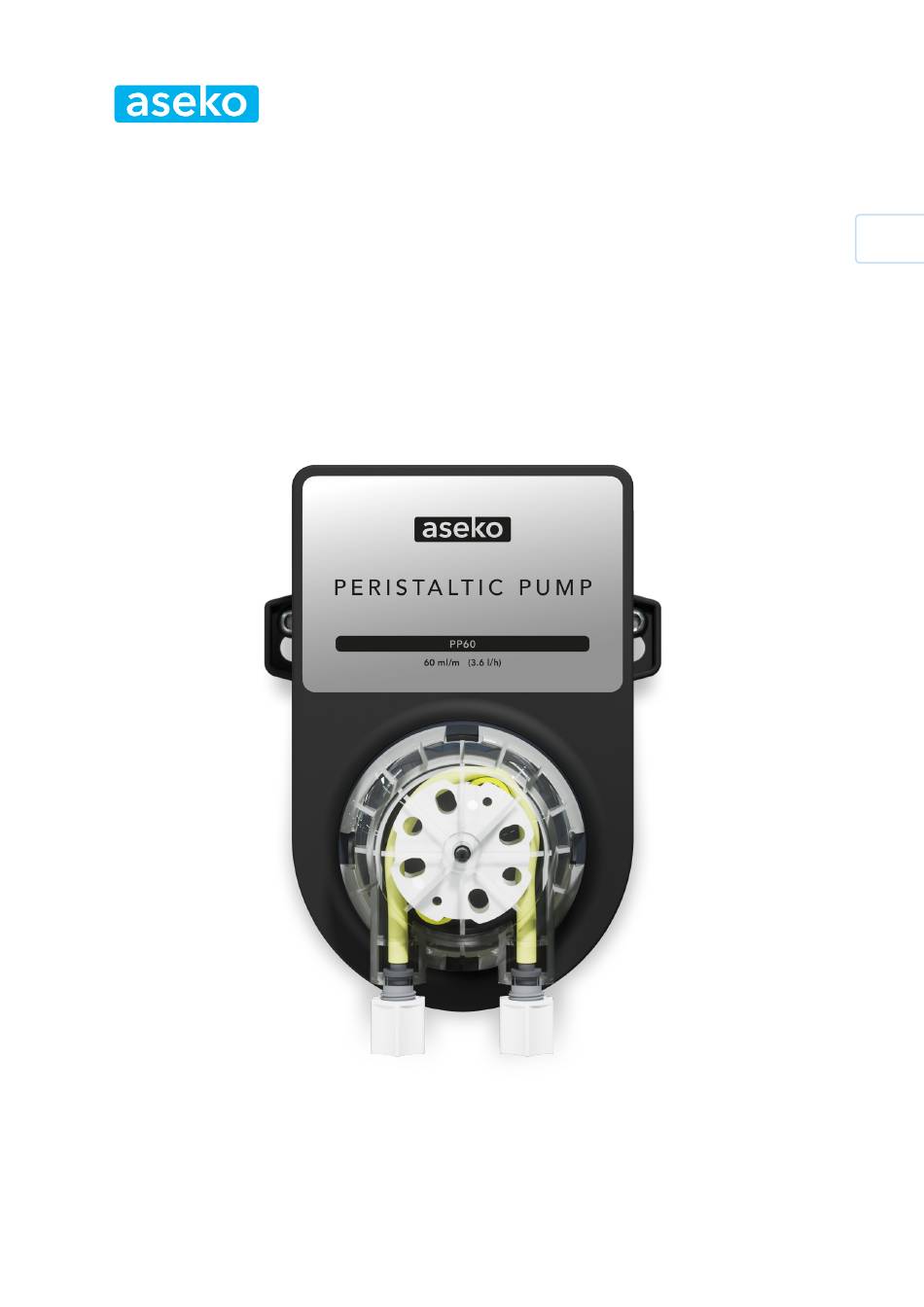

- Page 1 USER MANUAL PP60 230V PERISTALTIC PUMP 60 ml/min. (3,6 l/h) www.asekopool.com...
-
Page 2: General Safety Information
General safety information This user manual contain basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. Additionally, all further safety information in this document absolutely must be observed. - Page 3 The chemicals used with the PP60 must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protective safety equipment when handling the pH and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).
- Page 4 What is in the box PP60 Peristaltic pump PP60 - 60 ml/min #12093 Injection valve 2 pcs Suction tube weight #12005 #12023 Dowels and screws PE Tube 1/4” (6.35 mm) transparent #12008...
-
Page 5: Optional Accessories
Optional accessories Inserting DN50 plug 1/4” threaded Photometer #12134 #13076 ASEKO Pool Tester #12170 ASEKO original chemie Volume 20 l CHLOR Pure 20l #12075 OXY PURE #13038 ALGICID #12156 FLOC+C 20l #12139 Volume 5 l ALGICID #12157 FLOC+C #12138 CHLOR Pure 5l #12138... -
Page 6: Technical Description
Peristaltic Pump PP60 The peristaltic pump PP60 is suitable for dosing of aggressive chemicals e.g. acids, lyes and disinfection agents, especially for the treating of the pool water. Technical description Power supply 12 / 24 V Power consumption 7 VA Sicherung T32 mA Kategorie... -
Page 7: Installation
Installation PP60 should be wall mounted in dry and dust-free environment with temperature ranging from +5 °C to +40 °C. To mount the device, use the 40 °C mounting holes that are accessible after opening the front cover of the device. - Page 8 PP60 230V Max 8 m Max 8 m...
- Page 9 Pool Chemicals Connection Screw the injection valve in the glue head D50 with thread G1 / 4 “ #12134, glued to the T-piece. Tighten the injection valve into the head by hands Plug with D = 50 with only. Do not use pliers or other tools. thread 1/4“...
-
Page 10: Initial Start
Initial start Recommendation: Run the device in clean water without any pool products. Recommendation: Test the connections of the connecting pipes. After starting the device, dosing starts. Visually check for leaks at any joint. After switching off the device, check that the liquid in the PE tube does not fall back. -
Page 11: Maintenance
Maintenance To ensure the optimum efficiency, perform visual checks and maintenance #12073 Replacement tube kit for PP 60 of PP60 pH on a regular basis. Pump hose replacement To prevent the pump from failing, it is recommended to replace the hose #12073 every 24 months. - Page 12 USER MANUAL PP60 230V www.asekopool.com...
