- Page 1 USER MANUAL PP60 PP60 PROGRAMMABLE PERISTALTIC PUMP FOR CONTINUOUS DOSING www.asekopool.com...
-
Page 2: General Safety Information
General safety information This user manual contain basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. Additionally, all further safety information in this document absolutely must be observed. - Page 3 The chemicals used with the ASIN Aqua must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protective safety equipment when handling the pH and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).
- Page 4 PP60 #13260 PP60 #13260 Peristaltic pump #12117 Peristaltic pump #12117 Injection valve Injection valve SAUNA Suction tube weight (PP60 PRG) (PP60 PRG SAUNA) #12023 #12005 #12005 #12007 Dowels and screws PE Tube 1/4” (6.35 mm) PE Tube 1/4” (6,35mm) - black...
-
Page 5: Optional Accessories
Optional accessories Inserting DN50 plug 1/4” threaded Fotometr #12134 # 13076 ASEKO original chemicals volume 20 l CHLOR Pure 20l #12075 OXY PURE #13038 ALGICID #12156 volume 5 l ALGICID #12157 CHLOR Pure 5l #12138 OXY PURE #13039... -
Page 6: Technical Description

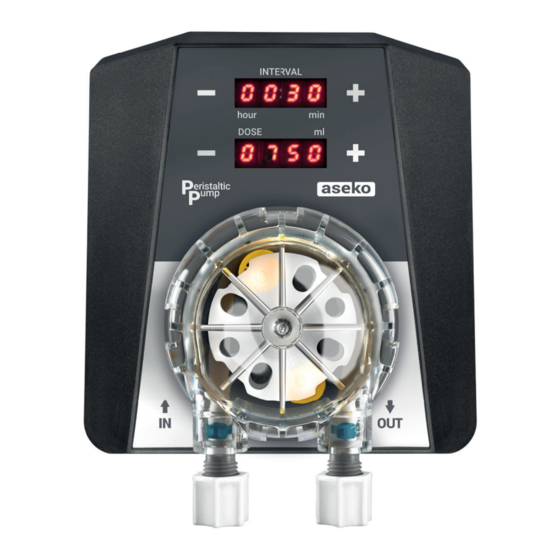

Peristaltic pump PP60 The peristaltic pump PP60 is suitable for dosing of aggressive chemicals e.g. acids, lyes and disinfection agents, especially for the treating of the pool water. Technical description Power supply 230 V / 50 Hz (or 12/24 V) - Page 7 PP60 Installation 40 °C 5 °C PP60 is to be wall mounted in dry and dust-free environment with 40 °C temperature ranging from +5 °C to +40 °C. To mount the device, use the mounting holes that are accessible after opening the front cover of the 40 °C...
- Page 8 Pool Chemicals Connection At this step is necessary to connect the injecting valves of individual chemicals to the dosing pumps and dosed agents. Place the injecting valve in the T-joint, blinded with the DN50 G1/4” threaded plug #12134. Cut the PE tube at 90 ° angle to ensure proper fi tting. •...
- Page 9 Max 8 m Max 8 m Sample point Coagulation mixer FROM POOL Besgo TO POOL Heating...
-
Page 10: Initial Start
Initial start The PP60 PRG is started by plugging the cable into the socket. The pow- er supply must be shared with the power supply to the circulation pump. Switching o the circulation pump must switch o the PP60 PRG, otherwise incorrect dosing into standing water would occur. - Page 11 Error messages Agent Run Out • Check liquid levels on a regular basis, refi ll in time. Dosing Pump does not Dose • Leakage in connection of PE tubes or they are damaged. • Failure of dosing pump. Check whether pump is running. If so, check the hose inside the pump for damage or breakage and replace it, if required.
- Page 12 • Insert the lubricated hose into the cassette. • Place the cover cassette back on PP60 and turn it clockwise to lock it. • Use new nuts, which are part of the replacement hose set, for connection of the PE tube.
- Page 16 USER MANUAL PP60 www.asekopool.com...
