- Page 1 USER’S MANUAL PP60 Redox PERISTLATIC PUMP FOR REDOX MEASURING AND CHLORINE DOSING www.asekopool.com...
-
Page 2: General Safety Information
General safety information This user manual contain basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. Additionally, all further safety information in this document absolutely must be observed. - Page 3 The chemicals used with the PP60 Redox must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protective safety equipment when handling the pH and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).
- Page 4 What’s in the box Redox probe Long Life #12016 Peristaltic pump #12117 Redox probe Long Life Injection valve Suction tube weight #12023 #12016 #12005 Measuring Water Valve 2 pcs Dowels and screws PE Tube 1/4” (6.35 mm) transparent #12006 #12008...
- Page 5 Accessories Redox buffer 650 Redox buffer 475 Photometer Glue head 1/4” #12134 # 13076 #12091 #12063 ASEKO Pool Tester #12170 Original aseko chemicals CHLOR PURE 20l CHLOR PURE 5l #12075 #12059...
-
Page 6: Technical Information

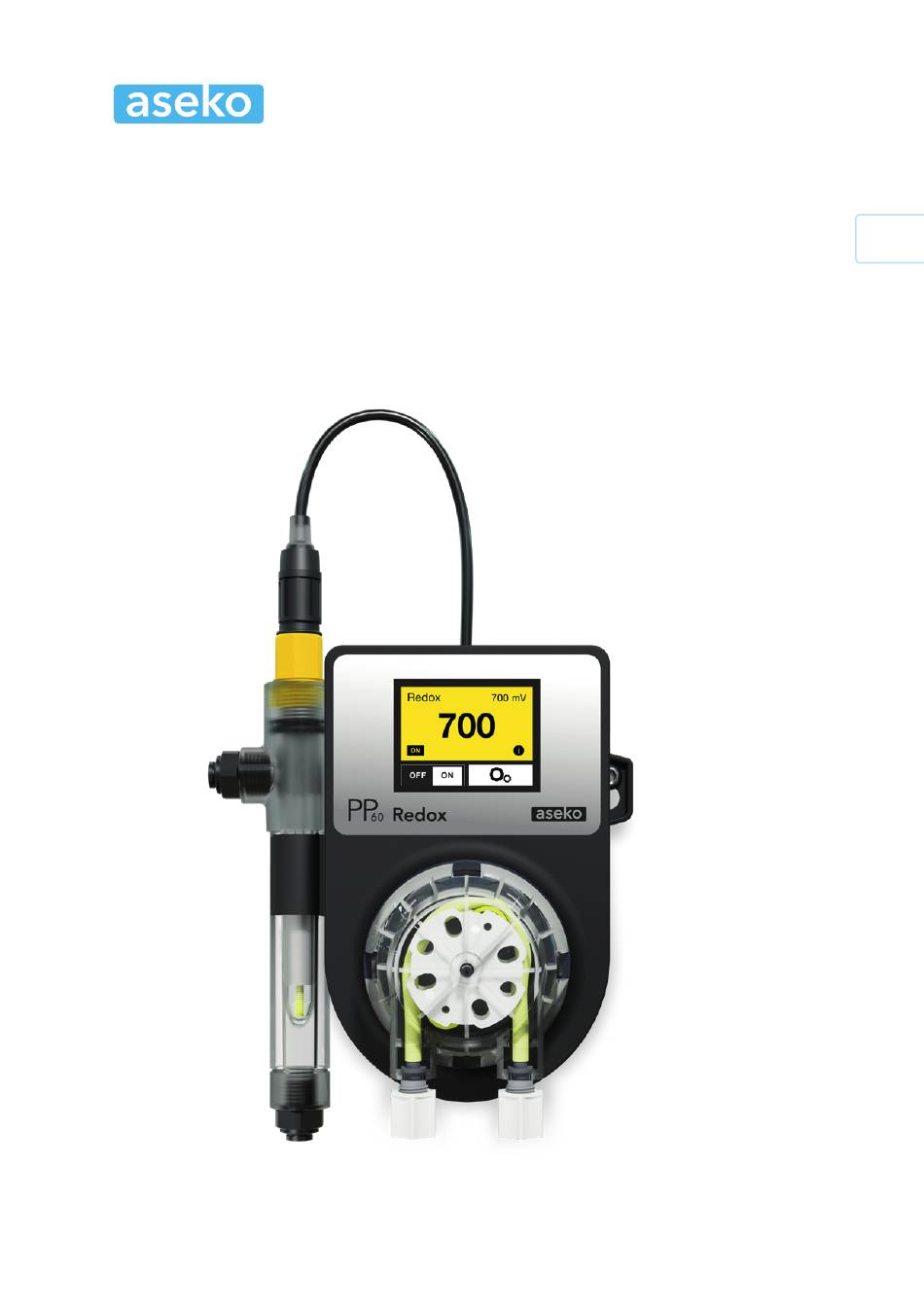

Peristaltic pump PP60 Redox PP60 Redox automatically regulates the redox value of the pool water by dosing of chlorine. Redox value is measured by a Redox probe Long Life. The Redox value is shown on the touch display. The touchscreen also serves to set all the necessary parameters. -
Page 7: Probe Installation
Probe installation Carefully insert the Redox probe into the housing. Hand tighten or use the attached plastic wrench socket for probes. Connect the connector and lock it by tightening a connector ring. After probes have been inserted, slightly tightened and connectors have been connected, PP60 Redox is ready for connection to the water system of your pool. - Page 8 POOL WATER INLET Max pressure 1 Bar THE WATER OUTLET CAN BE Sampling point REALISED: for callibration Coagulation mixer 1. downstream of filtration 2. to the non-pressure (overflow tank) FROM POOL Besgo TO POOL Heating...
- Page 9 Pool Water Connection Measuring Water valve #12005 Screw the measuring water valve in the glue head D50 with thread G1 / 4 “#12134, glued to the T-piece. Tighten the measuring water valve into the head by hands only. Do not use pliers or other tools. Glue head D50 with thread 1/4“...
- Page 10 Max 8 m Max 8 m Sampling point Coagulation mixer for callibration FROM POOL Besgo TO POOL Heating...
- Page 11 Pool Chemicals Connection Plug with Screw the injection valve in the glue head D50 with thread G1 / 4 “ #12134, D = 50 with glued to the T-piece. Tighten the injection valve into the head by hands thread 1/4“ only.
- Page 12 Orientation in the menu When the mains cable is plugged in, the touch display of the device lights up. Required Value. Measured Value. By pressing this value enter the required Redox value menu Device status OFF - Dosing is turned OFF. Enter the settings.
-
Page 13: Initial Setup
Initial setup PP60 Redox is switched on by connecting to the power supply. Turn on the unit Select prefered language. Enter the settings and in the language menu select one of available languages. Test the connections tightness. In the settings menu, select Test dose. The display shows the dose in ml. - Page 14 Optimal required Redox value For the correct functionality of the REDOX probe, you must observe the following conditions: pH of the pool water The pH value should be between 6.8 and 7.5. The pH of the pool water must be stabilized. If the pH value fluctuates, the value of the Redox changes accordingly.
-
Page 15: Error Messages
Error messages Maximum hourly disinfection dose 20 ml/m³ per hour exceeded without reaching the target value. If this error pops up, check the following: 1. Agent Run Out • Check liquid levels on a regular basis, refill in time. 2. Dosing Pump does not Dose •... - Page 16 PP60 Redox maintenance To ensure the optimum efficiency, perform visual checks and maintenance of PP60 Redox on a regular basis. Pump Hose Replacement #12073 Replacement tube kit for PP 60 To prevent the pump from failing, it is recommended to replace the hose #12073 every 24 months.
- Page 17 Winterizing - storage during winter The device and all accessories must be dismantled, winterized and moved to a suitable location. To disassemble and winterize the PP60 Redox, follow the instructions below. Storing of pool chemicals, connecting PE tube and dosing pumps •...
- Page 20 USER’S MANUAL PP60 Redox www.asekopool.com...
