- Page 1 USER MANUAL PP60 PRG PROGRAMMABLE PERISTALTIC PUMP FOR CONTINUOUS DOSING www.asekopool.com...
-
Page 2: General Safety Information
General safety information This user manual contain basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. Additionally, all further safety information in this document absolutely must be observed. - Page 3 The chemicals used with the ASIN Aqua must be handled in a safe manner to prevent damage or personal harm. Aseko recommends you always use personal protective safety equipment when handling the pH and chlorine agents. Refer to the Materials Safety Data Sheet (MSDS).
- Page 4 What’s in the box PP60 PRG #13260 Peristaltic pump #12117 Injection valve Injection valve SAUNA Suction tube weight (PP60 PRG) (PP60 PRG SAUNA) #12023 #12005 #12007 Dowels and screws PE Tube 1/4” (6.35 mm) transparent 10m (PP60 PRG) #12008...
-
Page 5: Optional Accessories
Optional accessories Inserting DN50 plug 1/4” threaded Photometer #12134 #13076 ASEKO Pool Tester #12170 ASEKO original chemicals Volume 20 l CHLOR Pure 20l #12075 OXY PURE #13038 ALGICID #12156 Volume 5 l ALGICID #12157 CHLOR Pure 5l #12138 OXY PURE #13039... -
Page 6: Technical Description

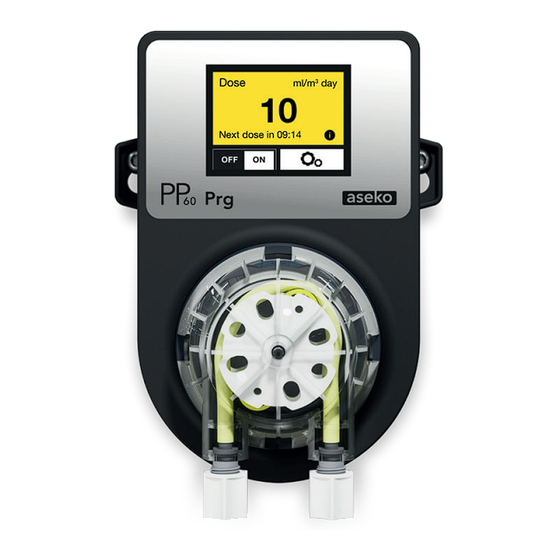

Peristaltic pump PP60 The PP60 PRG peristaltic pump is used for dosing aggressive chemicals (acids, alkalis, and disinfectants), especially for the treatment of pool water and for dosing fragrant essences into saunas and steam baths. The pump allows setting the dosing periodicity and the dosing quantity. - Page 7 PP60 Installation 40 °C 5 °C PP60 is to be wall mounted in dry and dust-free environment with 40 °C temperature ranging from +5 °C to +40 °C. To mount the device, use the mounting holes that are accessible after opening the front cover of the 40 °C 5 °C device.
- Page 8 Max 8 m Max 8 m Sampling point Coagulation mixer for callibration FROM POOL Besgo TO POOL Heating...
- Page 9 Pool Chemicals Connection Plug with Screw the injection valve in the glue head D50 with thread G1 / 4 “ #12134, D = 50 with glued to the T-piece. Tighten the injection valve into the head by hands thread 1/4“ only.
- Page 10 Orientation in the menu When the mains cable is plugged in, the touch display of the device lights up. Dosing mode Dosed amount. The pump status – ON. OFF - Dosing is turned OFF. Enter the settings. ON - Dosing is turned ON. Back to the home screen Movement in the menu...
-
Page 11: Initial Setup
Initial setup PP60 PRG is switched on by connecting to the power supply. Turn on the unit Select prefered language. Enter the settings and in the language menu select one of available languages. Test the connections tightness. In the settings menu, select Test dose. -
Page 12: Maintenance
Maintenance To ensure the optimum efficiency, perform visual checks and maintenance of PP60 on a regular basis. Pump Hose Replacement #12073 Replacement tube kit for PP 60 To prevent the pump from failing, it is recommended to replace the hose #12073 every 24 months. In doing so, proceed as follows: •... - Page 13 +0 - +40 °C. Storage of the PP60 PRG Disconnect the PP60 PRG Home mains cable from the 230 V / 50 Hz socket. Move the PP60 PRG unit in a place where the temperature is between +5 - +40 °C and the humidity does not exceed 70 %.
- Page 16 USER MANUAL PP60 PRG www.asekopool.com...
