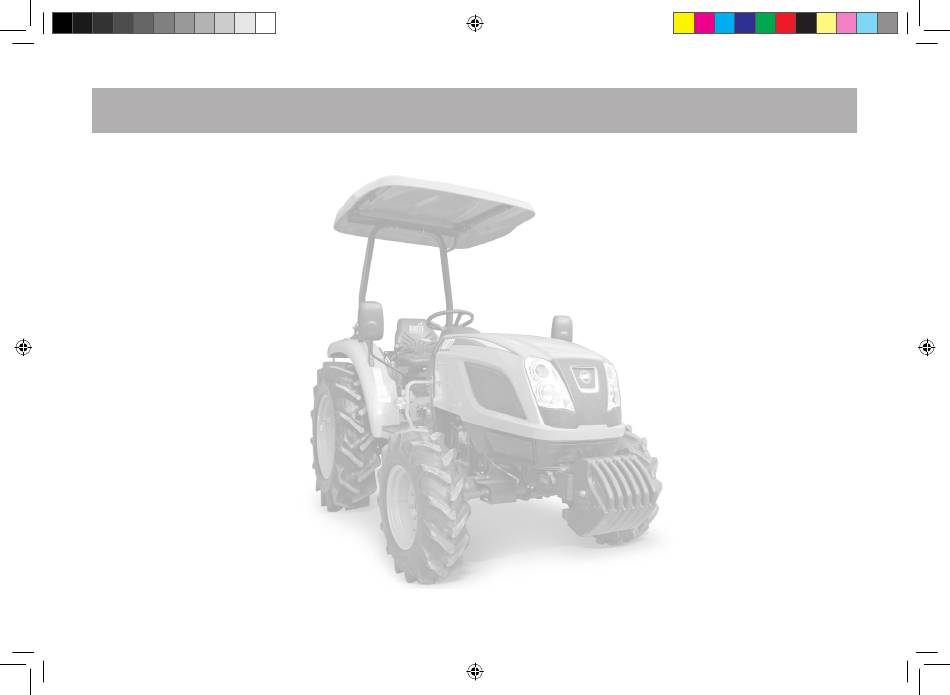

Congratulations, and welcome to the fabulous world of NS4710 / NS6010 / NS4710H / NS5310H / NS6010H owner-
ship, where serious work is made fun again!
This versatile tractor is a culmination of the entire tractor and diesel knowledge gained by the Daedong IND. Co., LTD
over the years since 1947 and has been designed with the finest materials and under rigid quality control standards set
forth by the KIOTI Engineering Department.
Knowledge of tractor operation is essential for many years of dependable service and reliability. To help new owner's fa-
miliarize themselves with the KIOTI NS4710 / NS6010 / NS4710H / NS5310H / NS6010H, it is the policy of KIOTI trac-
tor to provide an owner's manual which includes helpful information about tractor safety, operation and maintenance. If
the information you seek is not found in this manual, your KIOTI tractor dealer will be happy to help you.
Please feel free to contact DAEDONG IND. CO.,LTD / DAEDONG-USA, INC. with your questions/concerns.
< NOTE >
Make sure to read this manual carefully and keep it handy for future reference.
When leasing or transferring this tractor, deliver this manual together with the tractor.
The specifications in this manual are subject to change without notice.
TE170 (NS4710, NS6010, NS4710H, NS5310H, NS6010H)- -00.indd 1
FOREWORD
2021-03-11
8:23:52
