8

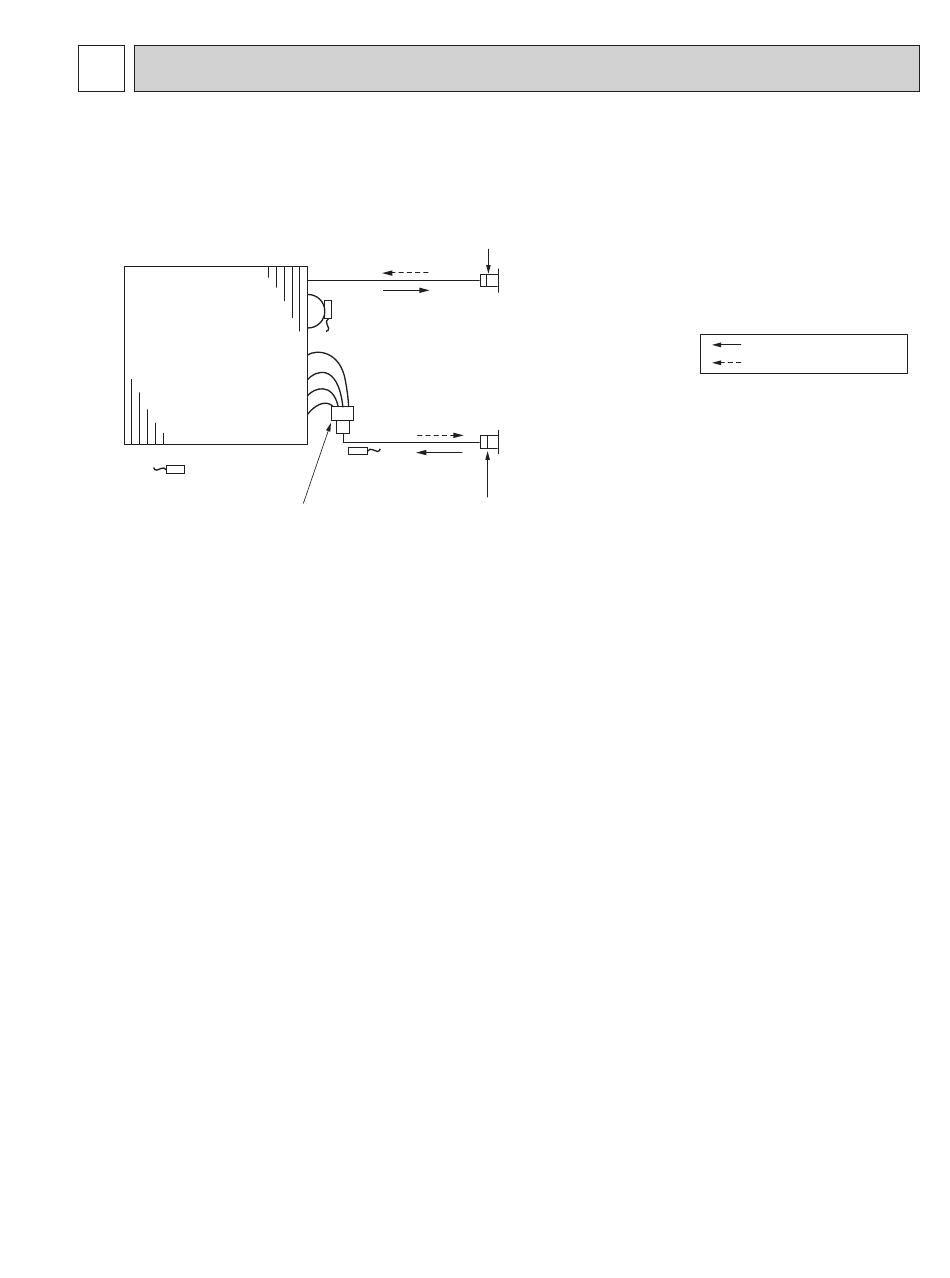

REFRIGERANT SYSTEM DIAGRAM

PCA-A24KA8
PCA-A30KA8
Heat exchanger
Room temperature
thermistor (TH1)
TCH113
PCA-A36KA8
Condenser/evaporator
temperature thermistor
(TH5)
Pipe temperature
thermistor/liquid
(TH2)
Distributor
with strainer 1/2
#50/#50
PCA-A42KA8
Strainer
#50
Refrigerant GAS pipe connection
(Flare)
Refrigerant LIQUID pipe connection
(Flare)
Strainer
#50
13
Refrigerant flow in cooling
Refrigerant flow in heating
