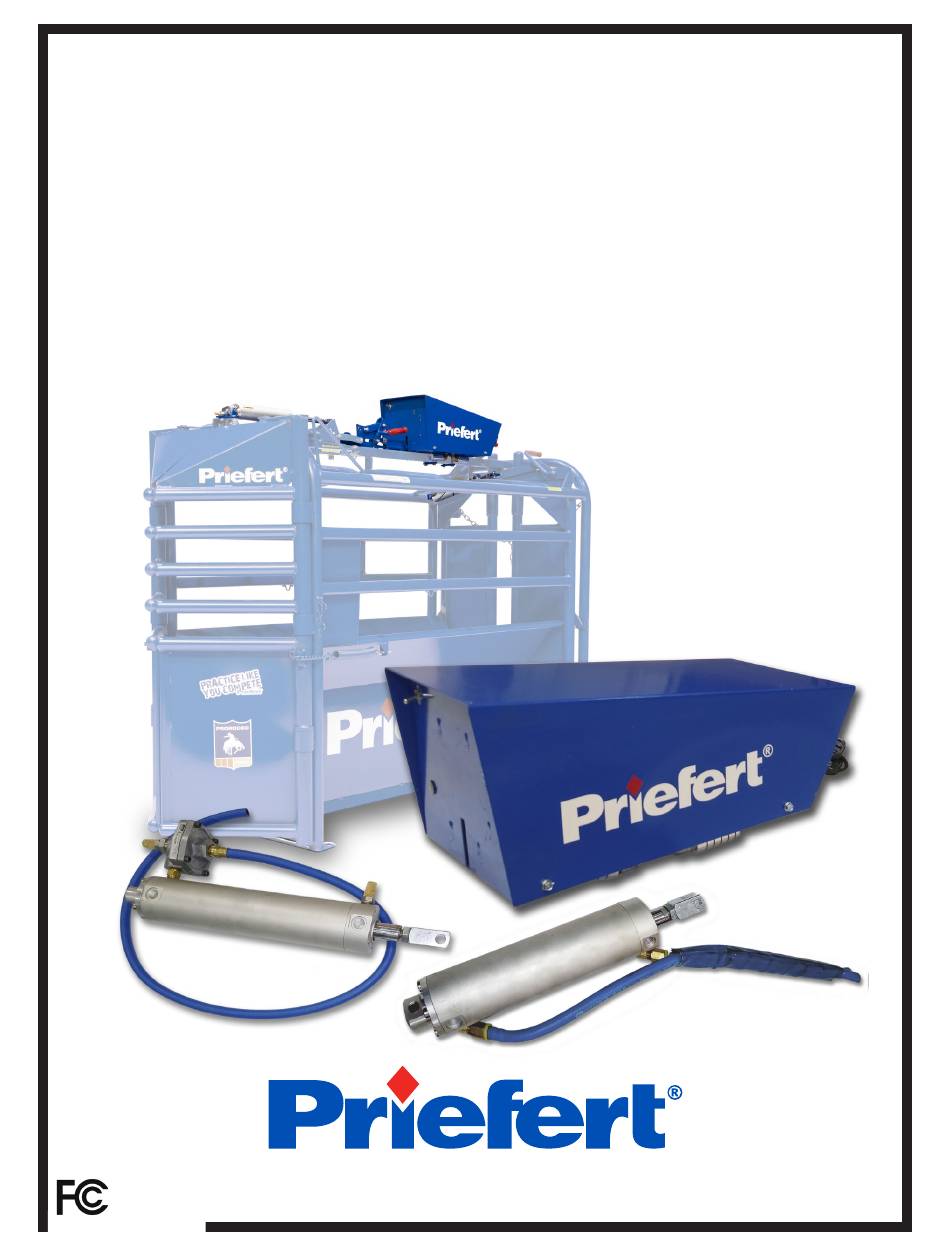

- Page 1 RC22 AI Box Installation Instructions Converts Manual Roping Chute to Fully Automatic www.priefert.com 800-527-8616 AI_RC22_AIBox-1123.indd...
- Page 2 The RC22 AI Box allows the roper to spend more time roping, and less time reloading the chute. As an added feature, a dial on the chute’s control box The information contained herein was current at the time of printing.
- Page 3 Thoroughly read and understand the installation, operation, references and move depending on a handlers position relative to their point of balance. other material supplied with the RC22. If the installer or operator cannot read This principle can be used to calmly and easily be encourage livestock through crowding pens, chutes, and squeezes.
-
Page 4: Features
Features • Directly Fits the RC22M. • Incorporates a Laser-Eye and remote control action. • Remote control is compact and easily fits in a pocket. • Virtually eliminates the need for extra chute help • Simple installation. • Retains original manual release mechanism. •... -
Page 5: Table Of Contents
Table Of Contents Congratulations Using This Manual Customer Service Safety Alert Symbols Signal Words ..............iii Livestock Safety . -
Page 6: Ai Box Installation
RC22 Automatic Control Box Installation Step 1 - Remove Gate Return Handles Start by pushing Trip Latch Handle to release front gate. With impact or ratchet and wrench, remove bolts holding gate return handles. (Fig. 1). Locate and replace with Handle Replacement Straps. -
Page 7: Step 4 - Attach Control Box
Step 4 - Attach Control Box Locate two (2) 3" Mounting Plates and four (4) 21/2" Bolts and Nuts. Slip a Bolt through one of the Mounting Plates and through base of AI Box. Thread a Nut over the end. Do Not Tighten yet. -
Page 8: Step 7 - Install Headgate Cylinder
Step 7 - Install Headgate Cylinder Assembly Locate and attach the Cylinder Linkage Bracket to the spring brake assembly of the Headgate with two (2) Cylinder Linkage Bolts and Nuts (Fig. 20). Tighten with impact or ratchet and wrench. Locate and attach regulator-end of Headgate Cylinder Assembly to Linkage Bracket with Clevis Pin and secure with Cotter Pin (Fig. -
Page 9: Operating Instructions
3.1 cfm at 90 psi, with a 4 gallon tank. Step 3: Connect electrical cord to standard 110/125 volt, grounded outlet. NOTICE: Priefert Manufacturing Recommends using a dedicated Air Compressor to prevent damage of contamination to the ACB Compressed Air System. -
Page 10: Appendix
Jill Webster Ph.D., & Mark Gonzalez; Livestock Safety; Agricultural Systems Technology and Education, Utah State University Extension; Utah State University , <http://extension.usu.edu/files/publications/factsheet/AHS-11.pdf> Suggested References Priefert assumes no liability for the use or misuse of information provided in the following references: PRCA, prorodeo.com; Rodeo Terminology, 2021 https://www.prorodeo.com/prorodeo/rodeo/rodeo-terminology The Team Roping Journal;... -
Page 11: Warranty
Proper venue for any lawsuits arising from or related to this limited warranty shall be only in Titus County, Texas. Priefert may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall be deemed to be a waiver of any other term. - Page 12 AI_RC22_AIBox-1123.indd...
