Horse Walker Operation Instructions
Display Panel
Charger Indicator
Stops
Horse Walker
Key Features on the Touch Screen Control Panel:
• 25 second "ramp up" time from start to the desired speed
setting helps ease horse into a walk.
• 25 second "ramp down" time from engage to full stop.
• Remote control that allows the operator to Start/Stop,
change direction (Forward/Reverse), as well as increase
or decrease speed; all with a push of a button.
• Convenient switch to allow low impedance electrical
stimulus to drop panels, encouraging horses to keep
pace, which can be turned off as horses become
accustomed to routines.
• Customized programming to set-up automated exercise
routines. Each routine can be programmed with up to
12 steps for changing pace, direction, etc.
• Flexibility to choose Programmed Routines or use the
Manual option.
Additional Features of the Touch Screen
The Start Screen appears after powering up the control panel.
Pressing the "MENU" button accesses the functions of the Walker.
After 30 minutes, the display screen goes to screen-saver.
Touching returns to the last screen opened.
15

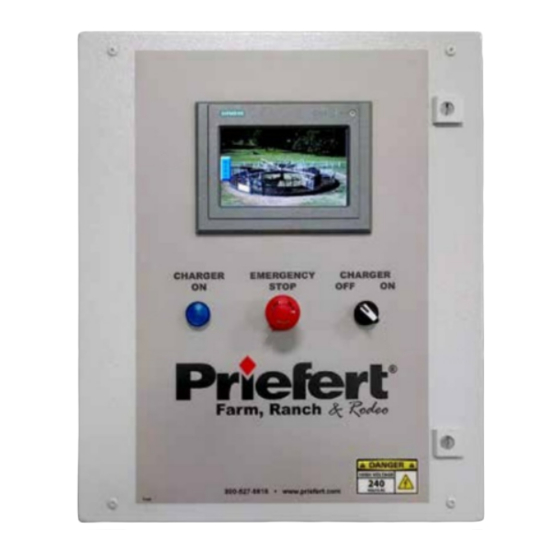

TOUCH SCREEN CONTROL PANEL
Charger ON/OFF
v5-0118
Advertisement
Table of Contents
Related Manuals for Priefert Horse Walker
Summary of Contents for Priefert Horse Walker
- Page 1 Horse Walker Operation Instructions TOUCH SCREEN CONTROL PANEL Display Panel Charger Indicator Charger ON/OFF Stops Horse Walker Key Features on the Touch Screen Control Panel: • 25 second “ramp up” time from start to the desired speed setting helps ease horse into a walk.
- Page 2 Section 1: MANUAL CONTROL Tab: This tab displays the options for Manual Operation. The Time and Speed of operation must be selected first • Time can be set by touching 15 minutes , 30 minutes 60 minutes . Touching button again will increase the time to a maximum of 60 minutes.
- Page 3 Routine. Touch END to cancel the Routine. • Priefert has provided a default Routine as an example of how to set-up a simple warm-up. This or any Routine can SELECT ROUTINE be revised to meet specific requirements. The next section provides instructions to set-up a Routine.
- Page 4 Currently this performs no function. • Priefert Manufacturing is constantly advancing the funtionality of its products. As improvements are made, Priefert will update our manuals to reflect these revisions. More information can found on the web at: http://www.prieferthorsewalkers.com/ or by calling toll-free: 1-800-527-8616 during regular business hours..
