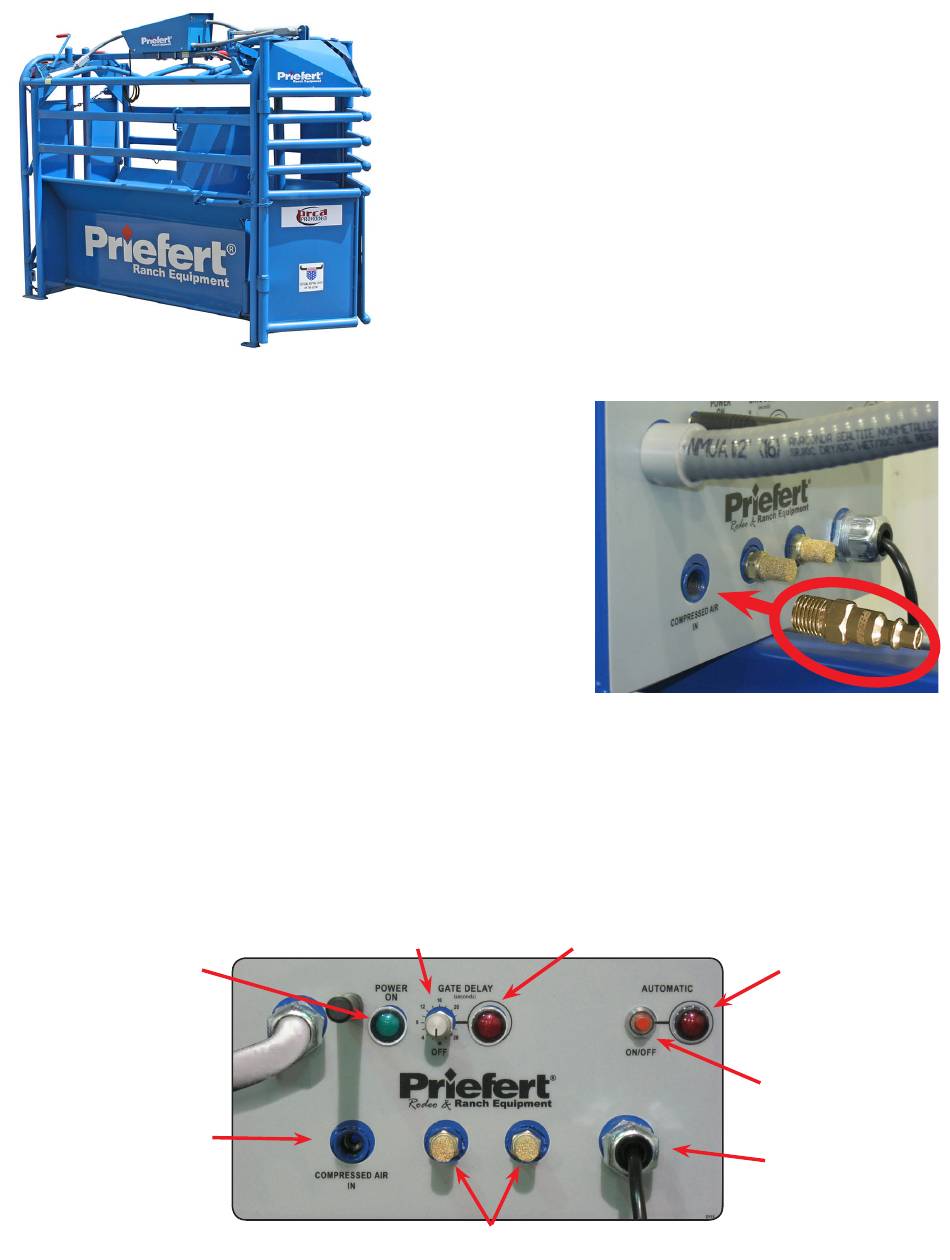

Priefert RC98SCOREAI Operating Instructions

Step 1: Install a standard 1/4" NPT, male, quick-connect air fitting
into hole marked air supply at back of the Automatic
Control Box (ACB). Be sure that the fitting is the correct
size for the air line you intend to use. (See Diagram 1)
Step 2: Connect air supply to fitting at the back of (ACB).
Set regulator on air compressor at 90 psi.
Proper performance requires a minimum of 2hp air compressor
that will produce 3.1 cfm at 90 psi, with a 4 gallon tank.
Step 3: Connect electrical cord to 110 volt outlet.
NOTICE: Priefert Manufacturing Recommends using a dedicated Air Compressor to prevent damage
from contamination to the Compressed Air System. Use Clean & Dry Compressed Air Supply.
Drain Compressor & Air Tanks Daily.
MAIN POWER
INDICATOR
COMPRESSED AIR
CONNECTION
(See Step 1)
Congratulations on purchasing Priefert's new "SCORE" Chute.
This is the "Ultimate Training Chute". In the fully automatic mode,
the rider can train his horse to respond to the rider's que, NOT the
sound of the chute or the action of the steer. Having a well trained
horse is the key element for success, and the Score Chute helps
Roping Chute Hook-Up
SEE ATTACHED NOTICE
Automatic Control Box
GATE DELAY SETTING
AIR DISCHARGE MUFFLERS
Score Chute
Operating Instructions
(RC98SCOREAI)
keep your horse competition ready.
DIAGRAM 1 - Insert Fitting
(Male, 1/4" NPT Quick-Connect Shown)
GATE DELAY INDICATOR
AUTOMATIC MODE
INDICATOR
AUTOMATIC MODE
ON/OFF SWITCH
110 VOLT
POWER CORD
