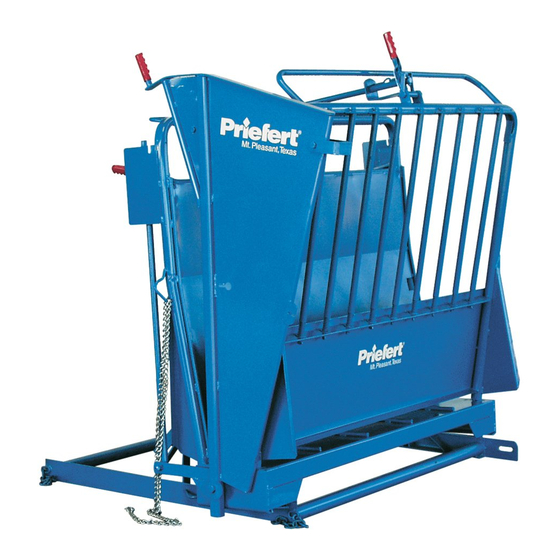

- Page 1 CALF TABLE REVERSAL INSTRUCTIONS CALF TABLE (CT) SHOWN W/ STANDARD HEADGATE CONFIGURATION. CALF TABLE (CT) SHOWN W/ REVERSED HEADGATE CONFIGURATION.
- Page 2 CALF TABLE REVERSAL INSTRUCTIONS Trigger Box Cotter Key Slip Rod Spring Step 1: Remove the Cotter Key from the Slip Rod and slide the rod out of the hole. Step 2: Latch Handle Slide the other end of the rod out of the Latch Handle to remove it completely from the assembly.
- Page 3 CALF TABLE REVERSAL INSTRUCTIONS 1/2”x1” Bolt Headgate Guide Step 4: Remove the (2) 1/2”x1” bolts attaching the Headgate Guide to the Headgate. Step 5: Remove the Headgate Guide from the assembly. Headgate...
- Page 4 CALF TABLE REVERSAL INSTRUCTIONS 5/8”x3½” Bolt (CT) Floor Washer Headgate Step 6: Remove the 5/8”x3½” bolt and Washer attaching the Headgate to the (CT) Floor. Step 7: Remove the Headgate from the assembly, and move it to the other side of the Calf Table.
- Page 5 CALF TABLE REVERSAL INSTRUCTIONS Headgate Guide Headgate 5/8”x3½” Bolt (CT) Floor Washer 1/2”x1” Bolt Step 8: Insert the 5/8”x3½” bolt and washer into the Headgate and secure it to the (CT) Floor. Step 9: Align the holes in the Headgate Guide with the holes in the Headgate and secure it with the 1/2”x1”...
- Page 6 Slide the Slip Rod into the hole in the Latch Handle. Insert the Slip Rod into the hole at the bottom of the Headgate, and Secure it with the Cotter Key. This concludes the Calf Table Reversal Process. Thank you for choosing a Priefert ™ Product.
