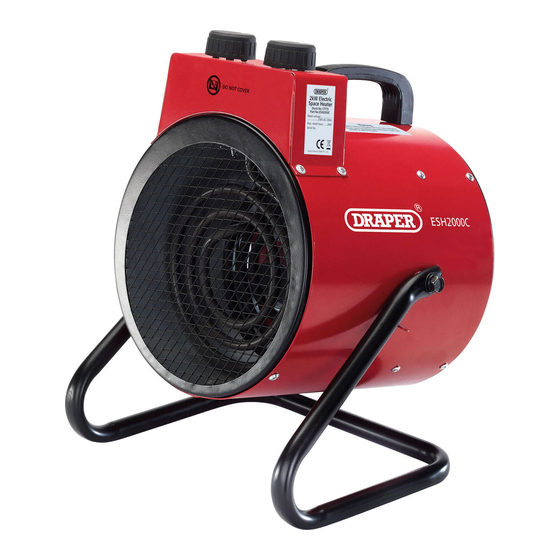

INSTRUCTIONS FOR
2kW Electric
Space Heater
Stock No.17775
Part No.ESH2000C
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper ESH2000C
Summary of Contents for Draper ESH2000C
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ...............2 COPYRIGHT NOTICE....................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ......................5 HANDLING & STORAGE ..................5 HEALTH & SAFETY INFORMATION GENERAL HEATER SAFETY WARNING ..............6-7 CONNECTION TO THE POWER SUPPLY..............8 TECHNICAL DESCRIPTION IDENTIFICATION ....................9... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
4.1 SCOPE This heater is intended for garage/workshop use, for domestic and light commercial use only. Any other application is considered misuse. 4.2 SPECIFICATION Stock no..........................17775 Part no..........................ESH2000C Rated voltage ...........................230V Rated input..........................2000W Rated frequency........................50Hz Current............................9A Fuse ............................10A Position settings: 0 ...............................Off... -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION 5.1 GENERAL HEATER SAFETY d) Remove any adjusting key or wrench before turning the heater on. A wrench or a key left WARNING attached to a rotating part of the heater may result in personal injury. WARNING: Read all safety warnings and all instructions. - Page 7 HEALTH & SAFETY INFORMATION 7) Use in environments with permanent presence Due to the high surface and exhaust of people. temperatures, adults and children must observe clearances to avoid burns or clothing ignition. The space heaters can only be used in Do not touch.
-
Page 8: Connection To The Power Supply
HEALTH & SAFETY INFORMATION 5.2 CONNECTION TO THE POWER SUPPLY Make sure the power supply information on the machine’s rating plate are compatible with the power supply you intend to connect it to. If a replacement plug is to be fitted this must be carried out by a qualified electrician. The damaged or incomplete plug, when cut from the cable shall be disabled to prevent connection to a live electrical outlet. -
Page 9: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Element Transport handle Operation control dial Stand Thermostat control dial Guard... -
Page 10: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the tool. -
Page 11: Preparing The Space Heater
PREPARING THE SPACE HEATER NOTE: These heaters are designed for small enclosed spaces like small offices, home garages etc. They work on the principle of high air flow - not high air temperature. Always position the fan so that it stands upright on a firm surface and at a safe distance from flammable objects and away from any potentially wet or damp environments. -
Page 12: Maintenance And Storage
MAINTENANCE AND STORAGE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your heater in good working condition. The motor must be correctly ventilated during the heater’s operation. For this reason avoid blocking the air inlets. If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard Remove the plug from the socket before carrying out any adjustment, servicing or... -
Page 13: Explanation Of Symbols
10. EXPLANATION OF SYMBOLS 10.1 EXPLANATION OF SYMBOLS WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Warning! Read instruction manuals before operating and servicing this equipment. -
Page 14: Disposal
11. DISPOSAL 11.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 15 NOTES...
- Page 16 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST PJKC0616...
