BASENGREEN, YOUR RELIABLE POWER

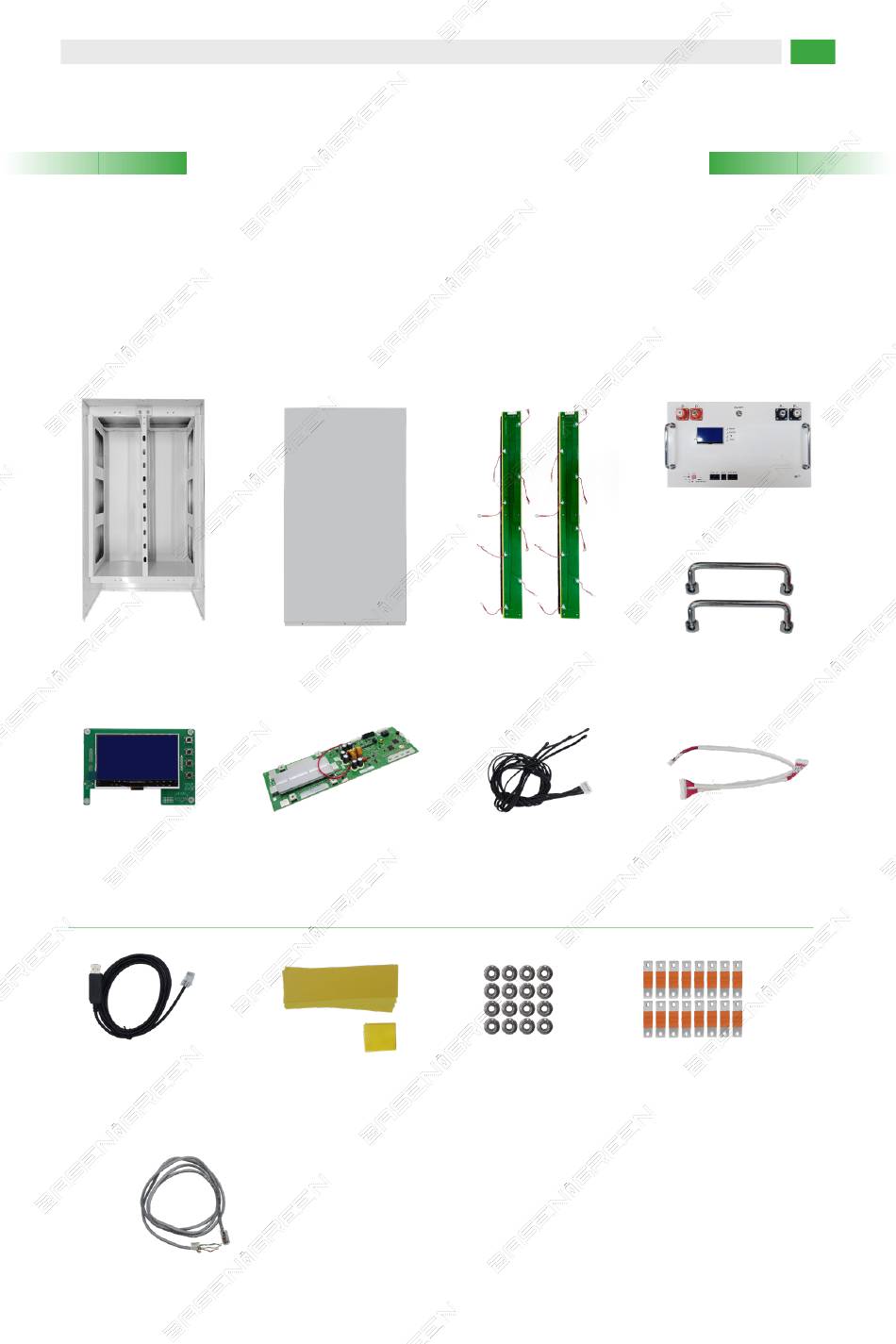

Packing list
Please check the product carefully after receiving it, if any accessories are missing,
please contact BASEN.
A
(Pre-installed)
Shell*1
F
(Pre-installed)
LCD Display*1
J
USB-RS485
communication cabl*1
N
Inverter communication cable*1
48230KITS/48300KITS
Assembly Instructions
B
(Pre-installed)
Cover plate*1
G
(Pre-installed)
BASEN GREEN
16S 200A BMS*1
K
Fiberglass
Insulation plate*20
C
(Pre-installed)
Balance bars*2
H
(Pre-installed)
Temperature
NTC leads*1
L
M
Screws*16
Flexible busbar*16
01
D
(Pre-installed)
Front plate*1
E
(Pre-installed)
Handle*2
I
(Pre-installed)
16S voltage
acquisition cable*1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BASENGREEN 48230KITS
Summary of Contents for BASENGREEN 48230KITS
- Page 1 BASENGREEN, YOUR RELIABLE POWER 48230KITS/48300KITS Assembly Instructions Packing list Please check the product carefully after receiving it, if any accessories are missing, please contact BASEN. (Pre-installed) Front plate*1 (Pre-installed) (Pre-installed) (Pre-installed) (Pre-installed) Shell*1 Cover plate*1 Balance bars*2 Handle*2 (Pre-installed) (Pre-installed)
- Page 2 BASENGREEN, YOUR RELIABLE POWER WARNING: If any parts are missing, damaged or worn, stop using this KITS. Repair the KITS with manufacturer supplied parts. IMPORTANT: Read these instructions carefully before beginning assembly. Failure to follow these instructions may result in serious injury.
- Page 3 BASENGREEN, YOUR RELIABLE POWER Put the cells into the case, connect the cells with the flexible busbars (M), the temperature NTC leads (H) and the balance bars(C) as shown in figure 3, and the cells should be divided by fiberglass insulation plate (K), as shown in figure 3.
- Page 4 BASENGREEN, YOUR RELIABLE POWER Put the BMS front plate(D) on, plug the voltage acquisition lead P+ lead to the main positive, and B- lead to the main negative, then put the B+ lead on, and stick the temperature NTC leads(H) on the cells by heat proof tape as shown in figure 4.
- Page 5 BASENGREEN, YOUR RELIABLE POWER Check every connection, the voltage between the main positive and the negative is >52V, then turn the button on, the LCD and the indicator work out, then the assembly operation is completed, as shown in figure 5.
- Page 6 BASENGREEN, YOUR RELIABLE POWER...
- Page 7 BASENGREEN, YOUR RELIABLE POWER Download the APP(Android only, the IOS are developing), click the Bluetooth name to check the status. How to switch the communication protocol. Open the PC software and follow the path: INFO—Parallel Group Display—CAN Type/RS485 Type—Read—Choose the protocol—Set...
- Page 8 BASENGREEN, YOUR RELIABLE POWER Communication compatible list:...
- Page 9 Need additional information? Just Contact BASEN! BASENGREEN YOUR RELIABLE POWER Fax: (+86)0755-84737145 Tex: (+86)130 0887 9993 Email: info@Basengroup.com Website: www.basenpower.com Shenzhen Basen Technology Co., Ltd. Add: Room 303,Building 3, 1980 Culture and Technology Industrial Park, Donghuan Road,Longhua District,Shenzhen...
