Summary of Contents for BASENGREEN BR-RM-LV 6KWH

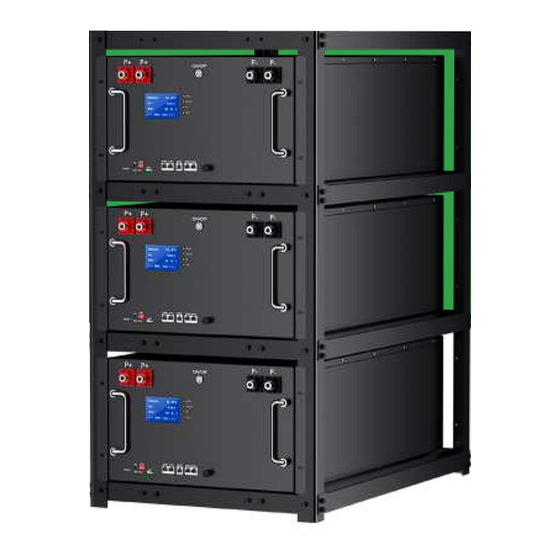

- Page 1 Rack Mounted Battery Pack Installation & Operation Manual BR-RM-LV 6KWH BR-RM-LV 11.77KWH BR-RM-LV 15.36KWH...
-
Page 2: Table Of Contents
Content 1. Preface ________________________________________________________________________________________ 01 2. Label Explanation _____________________________________________________________________________ 02 3. Product Description___________________________________________________________________________ 03 4. Product Advantages __________________________________________________________________________ 03 5. Product Technical Parameters________________________________________________________________ 04 5.1 Specification_______________________________________________________________________________ 04 5.2 Interface Overview ________________________________________________________________________ 05 5.3 Battery Management System _____________________________________________________________ 06 5.3.1 Overcharge Protection________________________________________________________________ 06 5.3.2 Overdischarge Protection ____________________________________________________________ 06 5.3.3 Overcurrent Protection _______________________________________________________________ 06 5.3.4 Over Temperature Protection ________________________________________________________ 06... -
Page 3: Preface
This manual will provide detailed product information and installation instructions for users of the wall-mounted series products of SHENZHEN BASENGREEN TECHNOLOGY CO.LTD (hereinafter referred to as BASENGREEN). Please read this manual carefully, and put this manual in a place where you can install, operate, and obtain it conveniently. -
Page 4: Label Explanation
BASENGREEN, YOUR RELIABLE POWER 2. Label Explanation The label contains the following information Guangdong Basengreen New Energy Co.,Ltd Rechargeable LiFePO4 Battery Product Name Product Model BR-RM-LV 6KWH Battery Voltage Operation Range 43.2Vdc-58.4Vdc Maximum Charge Current 100A Maximum Discharge Current 100A Rated Capacity 120Ah/51.2V/6144Wh... -
Page 5: Product Description
BASENGREEN, YOUR RELIABLE POWER Guangdong Basengreen New Energy Co.,Ltd Rechargeable LiFePO4 Battery Product Name Product Model BR-RM-LV 15.36KWH Battery Voltage Operation Range 43.2Vdc-58.4Vdc Maximum Charge Current 200A 200A Maximum Discharge Current 300Ah/51.2V/15360Wh Rated Capacity Ingress Protection IP55 Protective Class CE UN38.3 IEC62619... -
Page 6: Product Technical Parameters
BASENGREEN, YOUR RELIABLE POWER e. Wide Working Temperature: -20℃ to 60℃, excellent high-temperature discharge performance. f. Convenient: Modular design, small size and lightweight, easy to install and maintain. 5. Product Technical Parameters 5.1 Specification Item Specifications BR-RM-LV BR-RM-LV BR-RM-LV Model 6KWH 11.77KWH... -
Page 7: Interface Overview
BASENGREEN, YOUR RELIABLE POWER 5.2 Interface Overview 3 6 7 Position Item Description The positive terminal of the battery, can be connected to the positive pole of the inverter through a cable for DC output. The negative terminal of the battery, can be connected to the negative pole of the inverter through a cable for DC output. -
Page 8: Battery Management System
BASENGREEN, YOUR RELIABLE POWER LCD Screen Display battery voltage, SOC, temperature, etc. Power switch The switch for turn on/turn off the battery pack. 5.3 Battery Management System（BMS） 5.3.1 Overcharge Protection When the voltage of any single cell or whole battery pack is higher than the set value during the... -
Page 9: Installation And Configuration
BASENGREEN, YOUR RELIABLE POWER 6. Installation and configuration 6.1 Packing a. After receiving the battery, open the box to check the battery surface if get any broken, crack,s or other bad phenomena; if get that, please do not install, and need to contact the supplier, and wait for the supplier's reply before proceeding to the next step. - Page 10 BASENGREEN, YOUR RELIABLE POWER Wiring Diagrams for One Pack Positive Cable Negative Cable Communication Cable to the inverter Communication Positive Cable Negative Cable Cable Wiring Diagrams for Parallel Connection...
-
Page 11: Connection
BASENGREEN, YOUR RELIABLE POWER 7. Connection 7.1 Precautions Before Connecting The Inverter a. Use a multi-meter to measure whether connection of the positive and negative cables are conducting, and check whether that connections are loose. b. The battery should be switched off before wiring to ensure that there is no DC output from the battery. -
Page 12: Precautions Before Connecting The Inverter With The Battery Pack In Parallel
BASENGREEN, YOUR RELIABLE POWER 7.2 Precautions Before Connecting The Inverter with The Battery Pack in Parallel a. Use a multi-meter to measure whether connection of the positive and negative cables are conduct- ing, and check whether that connections are loose. -
Page 13: Dip Code Switch Definition And Setting
BASENGREEN, YOUR RELIABLE POWER 7.3 Dip Code Switch Definition and Setting ADD switch is a 4-bit/8-bit DIP switch to manually distribute the communication address of parallel batteries. The BMS will only recognize the DIP address once it is reset, so please reset the BMS when the DIP address is changed (the BMS must be reset in the standby state). -
Page 14: Operation
BASENGREEN, YOUR RELIABLE POWER 8-bit Battery pack Master1 Slave 2 Slave 3 Slave 4 Slave 5 Slave 6 2 3 4 5 6 7 8 2 3 4 5 6 7 8 2 3 4 5 6 7 8 2 3 4 5 6 7 8... - Page 15 BASENGREEN, YOUR RELIABLE POWER LED Indicator Status Charging Status Capacity Indicator ● ● ● ● ● ● 0～16.6% Light Light 16.6～33.2% Light Light Light 33.2～49.8% Light Light Light Light Light 49.8～66.4% Light Light Light Light Light 66.4～83.0% Light Light Light...
- Page 16 BASENGREEN, YOUR RELIABLE POWER Specification Battery capacity LED Normal/warning/ Status protection ● ● ● ● ● ● ● ● Sleep Power off ALL OFF Normal Flash1 Stand by Warning Flash1 Normal Flash2 Warning (Not including Flash2 temperature ) ALM OFF when...
-
Page 17: Operation Of Upper System
BASENGREEN, YOUR RELIABLE POWER 9. Operation of Upper System BASEN 48V battery pack supports to connect with our upper system to monitor the status of the battery and modify the communication protocol, please contact our sales representative or visit our website to get the latest upper system software. -
Page 18: Operation Of The Communication Protocol Switch
BASENGREEN, YOUR RELIABLE POWER 9.2 Operation of The Communication Protocol Switch Connect to the upper system and follow the path: INFO—Parallel Group Display—CAN Type/RS485 Type—Read—Choose the protocol—Set... -
Page 19: Communication Compatible List
BASENGREEN, YOUR RELIABLE POWER 9.3 Communication Compatible List... -
Page 20: Storage
BASENGREEN, YOUR RELIABLE POWER 10. Storage a. External terminals of the battery pack are insulated and protected. b. If the battery pack is stored for a long period of time without use, it is recommended that it be charged 30%-60%, and it is prohibited to store it completely uncharged. - Page 21 BASENGREEN, YOUR RELIABLE POWER Attention! a. It is forbidden to use or place the battery under high temperatures (in the hot sun or in a very hot car), otherwise, it may cause the battery to overheat, catch fire or fail to function, and shorten its life; the recommended temperature for long-term battery storage is 10-45°C;...
- Page 22 Need additional information? Just Contact BASEN! BASENGREEN YOUR RELIABLE POWER Fax: (+86)0755-84737145 Tex: (+86)130 0887 9993 Email: info@Basengroup.com Website: www.basenpower.com Shenzhen Basen Technology Co., Ltd. Add: Room 303,Building 3, 1980 Culture and Technology Industrial Park, Donghuan Road,Longhua District,Shenzhen...
