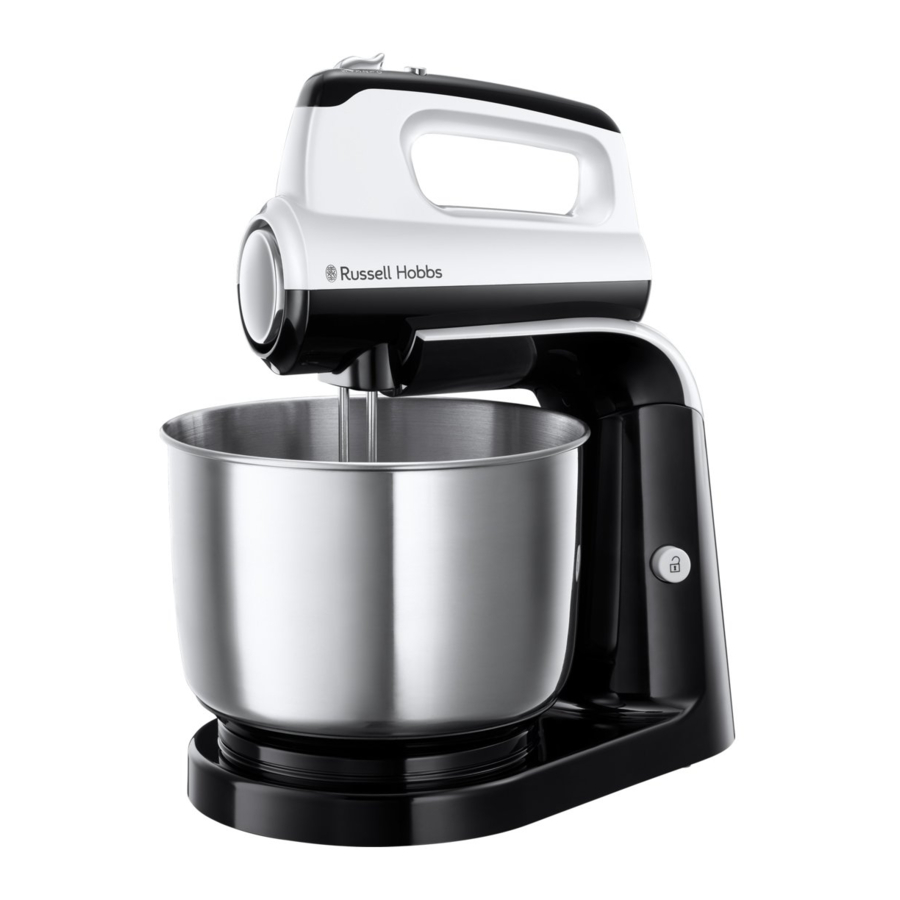

Russell Hobbs 24680-56 - Hand Stand Mixer Manual

PARTS

1. Drive heads (underneath)
2. Mixer lock button
3. Pips
4. Flange
5. Whisks
6. Plastic knob
7. Hooks
8. Speed control
9. Turbo button
10. Eject button
11. Bowl
12. Arm
13. Arm release

Dishwasher safe

FITTING THE WHISKS/HOOKS

1. Switch off (0) and unplug the mixer before fitting or removing the whisks/hooks.
2. Turn each whisk or hook to align the pips on the shaft with the slots in the drive head, then push it into the drive head till it clicks into place.
3. Each whisk/hook must be fitted into a specific drive head.
4. Insert the one with the flange into the left-hand drive head (looking up from under the mixer fig. A).

5. Use both whisks or both hooks, don't mix them.

REMOVING THE WHISKS/HOOKS

1. Switch off (0) and unplug the mixer, then shake any excess mixture into the mixing bowl.
2. Hold both whisks/hooks, to prevent them jumping out, and press . This will eject them from the drive heads

USING THE UNIT

1. Move the speed control to 0.
2. Put the plug into the power socket.
3. Move the speed control to the speed you require (1 to 5).
4. Pressing the turbo button will over-ride the speed set by the speed control, and give you a burst of high speed. It only works when the motor is already running (1 to 5).
5. Move the speed control to 0 to switch off.

• Generally, large quantities, thick mixes, and a high ratio of solids to liquids suggest longer timings and slower speeds.
• Smaller quantities, thinner mixes, and more liquids than solids suggest shorter timings and higher speeds.
• Use the whisks for beating/aerating light dough and batter.
• Use the hooks for mixing heavier dough (e.g. bread, fruit-cake).
• When making dough, use the mixer only for mixing the ingredients. Don't use it for kneading. You'll overload it and damage the motor.
• If the motor starts to labour, add more liquid to the mix, if possible, or switch off and carry on by hand.

USING THE STAND AND BOWL

1. Sit the bowl on the stand.
2. Fit the whisks/hooks to the mixer.
3. Push the mixer down and back, into the hollow top of the arm. You'll hear it click into place.
4. To raise/lower the arm, press and hold the arm release, reposition the arm, then release the arm release.
5. To remove the mixer from the arm, press forward, towards the mixer and lift the mixer up and forward.

• When the motor is running, the motion of the beaters will turn the bowl to reach all the ingredients.
• To enhance the mixing process further, you might like to try rotating the bowl gently in the opposite direction.

CARE AND MAINTENANCE

1. Switch the appliance off (O) and unplug it.
2. Clean the outside surfaces of the appliance with a damp cloth.

Wash the whisks and hooks in hot soapy water, or in the cutlery basket of your dishwasher.

IMPORTANT SAFEGUARDS

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.

Follow basic safety precautions, including:
This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved.
Children must not use or play with the appliance.
Keep the appliance and cable out of reach of children.
Misuse of the appliance may cause injury.
Unplug the appliance before assembly, disassembly, or cleaning.
Don't leave the appliance unattended while plugged in.
If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.
Don't immerse the appliance in liquid.

• Keep fingers, hair, clothing and kitchen utensils clear of the whisks/hooks.
• Don't use accessories or attachments other than those we supply.
• Don't use the appliance for any purpose other than those described in these instructions.
• Don't use the appliance if it's damaged or malfunctions.
• Don't run the motor continuously for more than 3 minutes, it may overheat. After 3 minutes switch off for at least 3 minutes, to recover.

HOUSEHOLD USE ONLY

For recipes, please visit http://eu.russellhobbs.com/recipes/

www.russellhobbs.com
