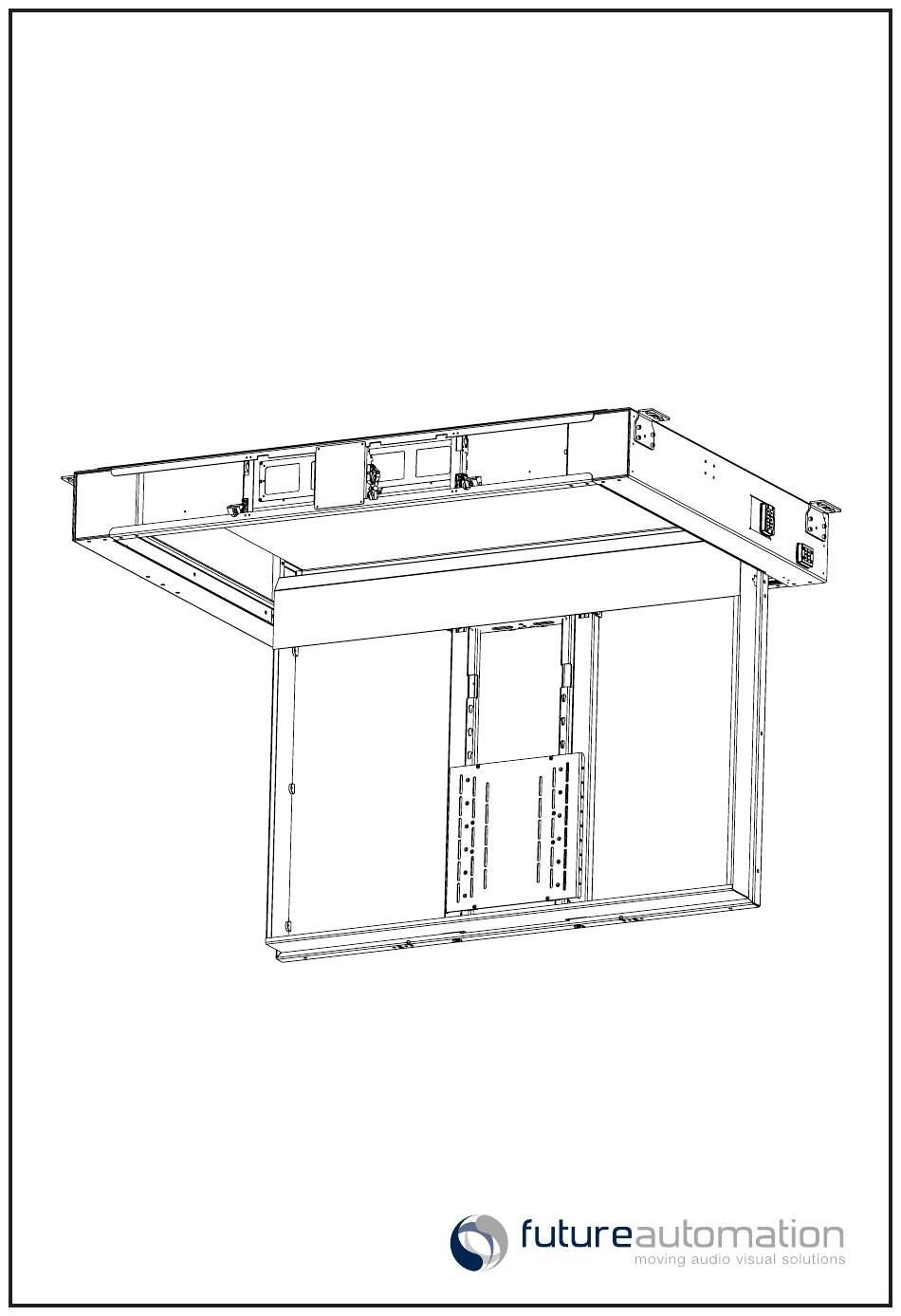

- Page 1 CHR-M / MO Marine Ceiling Hinge Range Installation Instructions Issue 001...
-
Page 2: Safety Disclaimer
Clean only with a dry cloth and always unplug any electrical items being used in conjunction with this product before cleaning. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Table Of Contents
Removing Trim Panels Mount Plate Removal Screen and Mount Plate Installation Mechanism Control General Control Infrared (IR) Contact Closure RS232 Mechanism Adjustments Hinging Tray Levelling Hinging Tray Positioning Contact Information Page 3 of 26 // Installation Instructions - CHR-M / MO... -
Page 4: Product Warranty
• Compensation for loss of use of the product, and consequential loss of any kind. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation. Customer Support - Contact Details... -
Page 5: Package Contents
5.2 - Mains Power Lead - Installed in Mechanism 5.3 - Infra-Red Control Lead -Installed in Mechanism 5.4 - CAT5 Lead with RJ45 Connector 5.5 - Screen Fixings Pack (Multi-pack of Bolts, Spacers and Washers) Page 5 of 26 // Installation Instructions - CHR-M / MO... -
Page 6: Installation Instructions
THE MOTOR DRIVE SYSTEM WILL CONTINUE TO MOVE UNTIL A LIMIT SWITCH IS CONTACTED. KEEP HANDS AND ANY OBJECTS CLEAR OF MECHANISM DURING OPERATION TO REDUCE RISK OF DAMAGE OR INJURY. Mounting Options Option 1 - Beam Mounting Option 2 - Stud Hanging Page 6 of 26 // Installation Instructions - CHR-M / MO... -
Page 7: Mechanism Installation - Beam Mounting
Surounding Ceiling Panels (Removable ) Max. 65.0mm [2.6"] This allows for 3mm Min. 65.0mm [2.6"] Ceiling Finish shim which can be Max. 70.0mm [2.8"] changed for finer height adjustment. Page 7 of 26 // Installation Instructions - CHR-M / MO... -
Page 8: Mechanism Installation - Stud Mounting
To hang mechanism on studs fixed securely to the ceiling above, suitable fixings should be used (Not Provided). Mechanism mount plates allow up to 12mm [0.5"] diameter fixings to be used and can be rotated 180° for shorter fixings. Page 8 of 26 // Installation Instructions - CHR-M / MO... -
Page 9: Cable Routing - Marine Outdoor
NOTE: Control cables should be routed to the mechanism and tested before installing TV. CABLES CAN BE ROUTED FROM BOTH SIDES Peel back corner of Front Seal Strip to reveal join in mount strip. Page 9 of 26 // Installation Instructions - CHR-M / MO... - Page 10 Peel back corner of Front Seal Strip to reveal join in mount strip. • Remove 3 x M5 Countersink Bolts from lower edge of Trim Panel. (3mm Allen Key) Page 10 of 26 // Installation Instructions - CHR-M / MO...
- Page 11 Trim panel can be lowered to unhook top edge and moved out of the mechanism, to gain access to the inside of the mechanism to run cables. • Reverse procedure to reinstall panels. Page 11 of 26 // Installation Instructions - CHR-M / MO...
-
Page 12: Cable Routing - Marine Indoor
NOTE: Control cables should be routed to the mechanism and tested before installing TV. CABLES CAN BE ROUTED FROM BOTH SIDES Removing Trim Panels 3 x M5 x 12mm CSK bolts Page 12 of 26 // Installation Instructions - CHR-M / MO... - Page 13 Remove 2 x M5 x 12mm Pozi Machine Screws. • Loosen 1 x M6 Hex (10mm Spanner) on each side. Remove lower front cover. • Remove 2 x M5 x 12mm Pozi Machine Screws. Page 13 of 26 // Installation Instructions - CHR-M / MO...
-
Page 14: Mount Plate Removal
Once unlocked, the mount plate will lift up approximately 20mm [0.8”] and can be pulled forward away from the hinging tray. Display cables can now be routed through the mechanism. Page 14 of 26 // Installation Instructions - CHR-M / MO... - Page 15 Installation Instructions Page 15 of 26 // Installation Instructions - CHR-M / MO...
-
Page 16: Screen And Mount Plate Installation
[0.8"] from lower edge of tray. Ensure plate is secure and lock plate in place as shown in Mount Plate Removal Adjust height of TV on mount Section. plate to suit Page 16 of 26 // Installation Instructions - CHR-M / MO... -
Page 17: Mechanism Control
Replacing Mechanism Batteries The standard Future Automation Infrared (IR) remote control required x2 AAA batteries to operate. These are provided with the mechanism in the Accessories Pack. These batteries can be replaced as the per the image below. -
Page 18: Infrared (Ir)
IMPORTANT Only buttons indicated above are functional with the product. Any other button press will STOP the mechanism. Page 18 of 26 // Installation Instructions - CHR-M / MO... -
Page 19: Contact Closure
MOMENTARY SHORT TO GROUND (PIN 3), DEVICE WILL MOVE TO LED 2 DEVICE OUT OUT POSITION. MOMENTARY SHORT TO GROUND (PIN 3), DEVICE WILL MOVE TO IN LED 1 DEVICE IN POSITION. Page 19 of 26 // Installation Instructions - CHR-M / MO... -
Page 20: Rs232
Carriage Return (Enter / ASCII 13) Device fully OUT position fa_preset Carriage Return (Enter / ASCII 13) Device alternative OUT position fa_stop Carriage Return (Enter / ASCII 13) Device STOP (At any position) Page 20 of 26 // Installation Instructions - CHR-M / MO... -
Page 21: Mechanism Adjustments
To adjust the tray requires basic tools and a tool supplied with the mechanism. Tools required • 4mm Allen Key • 10mm Spanner/ Socket Set • 17mm Spanner (PROVIDED WITH MECHANISM) • Spirit Level or Straight Edge Page 21 of 26 // Installation Instructions - CHR-M / MO... - Page 22 - 1/4 Turn Bolt CCW 6. Adjust Height of Tray Using Cam Adjuster 6a. Rotate UP DOWN 1/2 turn = 2.5mm [0.1"] 6b. Rotate DOWN 1/2 turn = 2.5mm [0.1"] Page 22 of 26 // Installation Instructions - CHR-M / MO...
-
Page 23: Hinging Tray Positioning
Hinging Tray Positioning Adjustments can be made to the tray position within the ceiling. The CHR is designed to have a 7mm [0.28"] shadow gap on all sides. [0.28"] [0.28"] Page 23 of 26 // Installation Instructions - CHR-M / MO... - Page 24 Left to Right Tools required 10mm Socket/ Spanner a. Loosen 2 M6 Hex Bolts - 1 turn b. Move tray as needed c .Tighten 2 M6 Hex Bolts - 1 turn Page 24 of 26 // Installation Instructions - CHR-M / MO...
- Page 25 (5mm Allen Wrench / Key) Rotate socket on each side as needed. 1 CW Turn = 1mm Up 1 CCW Turn = 1mm Down DOWN - CCW / CCW Page 25 of 26 // Installation Instructions - CHR-M / MO...
-
Page 26: Contact Information
Email: info@futureautomation.net Office Hours: Office Hours: Mon - Fri 8:00 to 17:30 GMT Mon - Fri 7:00 to 17:00 EST Saturday & Sunday - Closed Saturday & Sunday - Closed Page 26 of 26 // Installation Instructions - CHR-M / MO...
