Installation Instructions

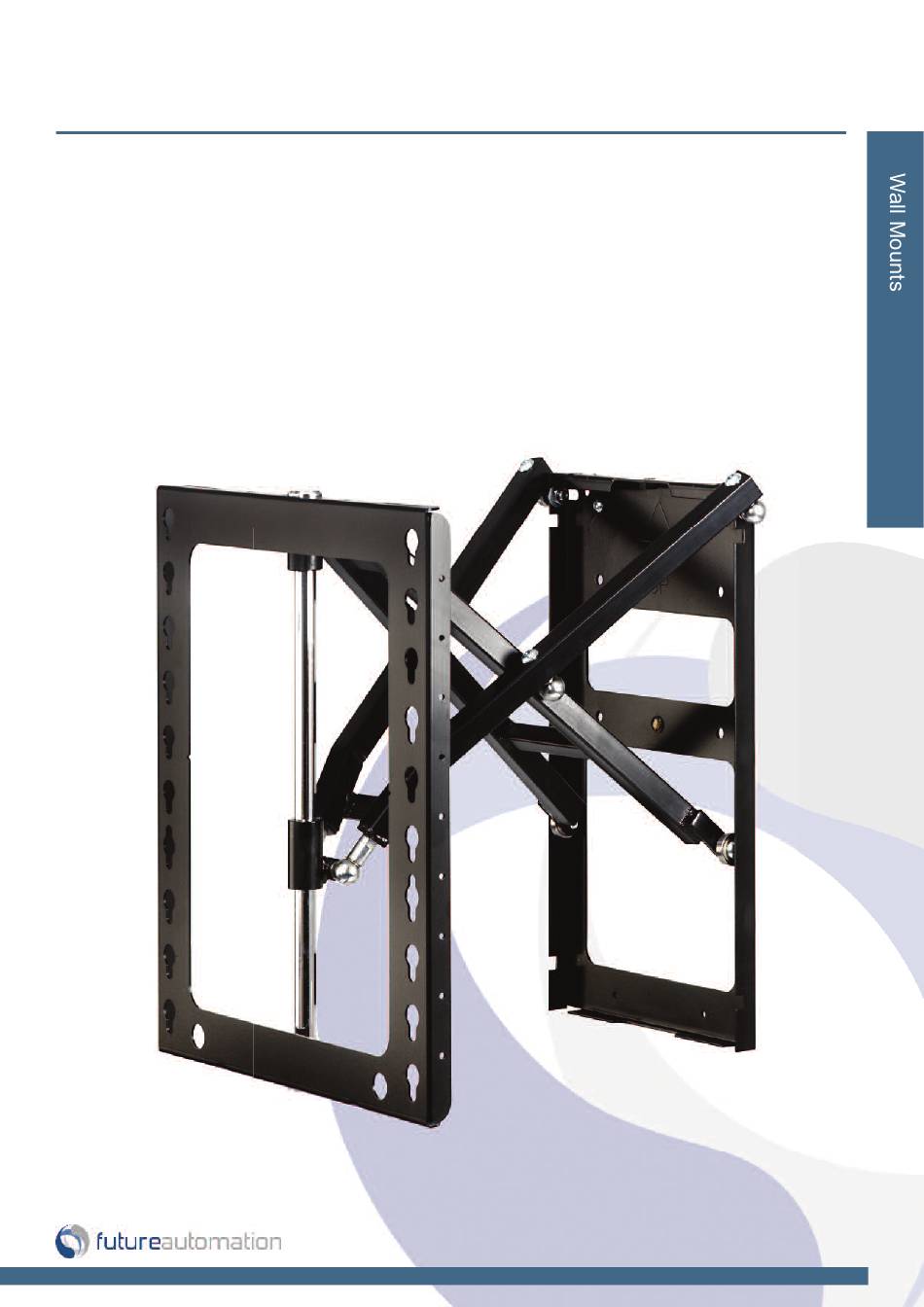

PS-VESA - Plasma Swivel Bracket
Design Highlights
-Unique Scissor Design Allows Easy One Handed Operation
-Solid Steel Construction Holds Screen Securely
-Dedicated VESA Mounting Points
-Bi-Directional Swivel up to 60 Degrees in Either Direction
Thank you for choosing
futureautomation
email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
ISSUE 001
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Future Automation PS-VESA Series
Summary of Contents for Future Automation PS-VESA Series
- Page 1 Installation Instructions PS-VESA - Plasma Swivel Bracket Design Highlights -Unique Scissor Design Allows Easy One Handed Operation -Solid Steel Construction Holds Screen Securely -Dedicated VESA Mounting Points -Bi-Directional Swivel up to 60 Degrees in Either Direction Thank you for choosing futureautomation email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565 ISSUE 001...
-
Page 2: Safety Information
Exceeding the weight capacity can result in serious personal injury or damage to equipment. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Table Of Contents
PS-VESA - Plasma Swivel Bracket Contents Page Introduction Safety Information Contents Contents Tool Indicator Icons Installation Parts List Package Contents Stage 1 Before You Start Check Removing the Cross Plates From the Mount Plate Stage 2 Adjustment & Mounting Stage 3 Screen Mounting Stage 4 Mounting the Screen to the Bracket... -
Page 4: Contents
Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation. -
Page 5: Parts List
PS-VESA - Plasma Swivel Bracket Nuts & Bolts Multipack: Package Contents A range of nuts, bolts, washers and spacers to help add in the 1 - Wall Bracket mounting for your screen 1.1 - Wall Plate 1.2 - Scissor Arms 1.3 - Mount Plate 1.4 - Cross Plate PS-VESA42 Plasma Swivel Bracket for 37”... -
Page 6: Before You Start Check
PS-VESA - Plasma Swivel Bracket Before You Start Prior to installation check the following: -The product is in good condition -No damage to any parts -The bracket is in the closed position Removing the Cross Plates From the Mount Plate The product is supplied with the cross plates attached to the bracket. -
Page 7: Adjustment & Mounting
PS-VESA - Plasma Swivel Bracket Adjustment and mounting Firstly, place the screen face down on a flat suitable surface, such as carpeted floor. Take care not to damage the screen. Flat Surface If the screen has a VESA 400 bolt pattern you can secure the mount plate straight onto the back of the screen. -
Page 8: Screen Mounting
PS-VESA - Plasma Swivel Bracket Screen Mounting If the screen has mounting points which are recessed, it will be necessary to use some of the provided spacers, in order to attach the uprights to the screen. It is also recommended that a minimum of 15mm of bolt thread is screwed into the case of the screen, without bottoming out. -
Page 9: Mounting The Screen To The Bracket
PS-VESA - Plasma Swivel Bracket Mounting the Screen to the Bracket Mount the screen over the bracket and locate the mount plate over the centre bar. Secure the screws through the caps and mount plate into the centre bar, top and bottom. -
Page 10: Screen Positioning
PS-VESA - Plasma Swivel Bracket Screen positioning Take this opportunity to measure the distance from the top of the screen down to the top mounting holes of the wall plate. This will be useful when gauging the position of the screen, and hence the position of the holes in the wall. -
Page 11: Fitting The Bracket To The Wall
PS-VESA - Plasma Swivel Bracket Fitting the Bracket to the Wall Firstly, remove the screen and screen mount from the bracket. Make sure that the mount plate is still left connected to the rear of the screen. Bearing in mind the relative distance from the top of the screen to the top mounting holes, place the wall plate against the wall, and mark where the... -
Page 12: Fixing The Screen & Mount Plate To The Bracket
Take care when using the PS bracket. If there ever seems to be a fault of some kind with the mechanism, please consult Future Automation immediately. Do not force, or apply excessive loads to any part of the mechanism. Page 11 of 12 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... - Page 13 PS-VESA - Plasma Swivel Bracket A general technical overview of the PS-VESA Plasma Swivel Bracket PS-VESA 42 PS-VESA 50 Product Dimensions 450x70x510mm [17.7x2.8x20.1"] 450x70x610mm [17.7x2.8x24"] (W,D,H) Weight (Kg) 9Kg [19.8lb] 10Kg [22lb] Movement Extention From Wall 420mm [16.5"] 530mm [20.9"] Angle Right Angle Left Max Screen Weight...
- Page 14 Future Automation Unit 2 Kimpton Enterprise Park Claggy Road Kimpton Hertfordshire SG4 8HP United Kingdom Tel: +44 (0) 1438 833 577 Fax: +44 (0) 1438 833 565 Email: info@futureautomation.co.uk www.futureautomation.co.uk...
