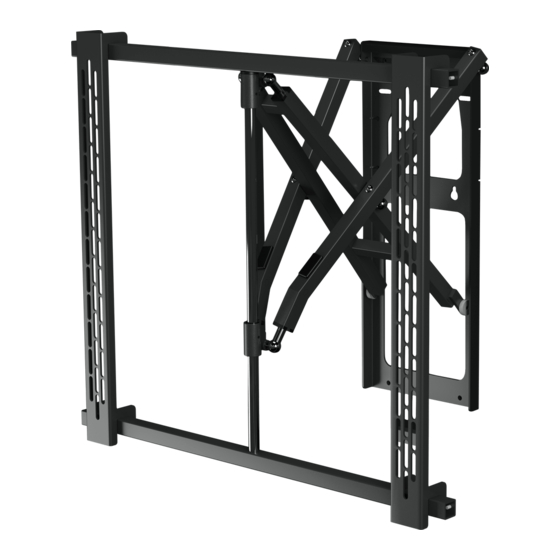

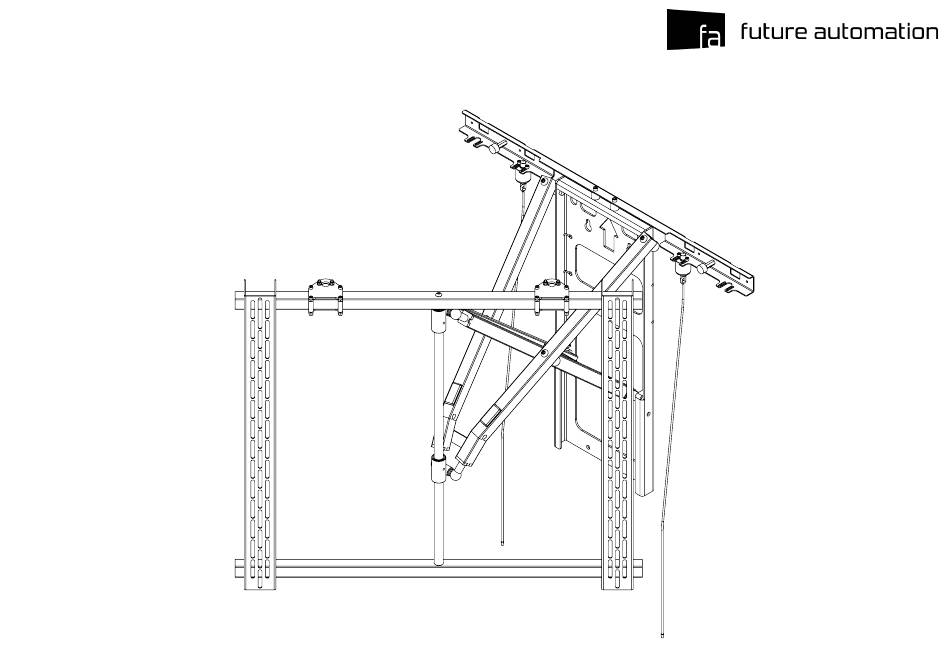

- Page 1 PS80-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET TECHNICAL SHEET UK +44 (0) 1438 833577 US +1 (603) 742 9181 ISSUE 003 FUTUREAUTOMATION SHEET 1...
-
Page 2: Specification
PS80-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET SPECIFICATION MEASUREMENTS Product Dimensions 795mm (31 5/16") x 900mm (35 7/16") x 91mm (3 9/16") Screen Sizes 65" - 110" Maximum Weight Capacity 120Kg (265 lb) Maximum Extension From Wall 569mm (22 3/8") Minimum Depth From Wall 91mm (3 9/16") -
Page 3: Screen Angles
PS80-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET SCREEN ANGLES The views below show the approximate maximum swivel angles achievable for varying screen sizes. 75" 85" 34° 40° 100" 28° TECHNICAL SHEET UK +44 (0) 1438 833577 US +1 (603) 742 9181... - Page 4 PS80-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET CABLE ROUTING AND SOCKET LOCATION All cables should enter the bracket at the top of the Wall Plate, run down each of the Wall sockets should be ideally placed as shown outside outer Scissor Arms and attach to the rear of the Screen Frame.
-
Page 5: General Dimensions
PS80-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET GENERAL DIMENSIONS 35 7/16" CLOSED FULL EXTENSION 32 3/8" 3 9/16" 22 3/8" MAX VESA WIDTH 30 5/8" 31 5/16" MAX VESA HEIGHT TECHNICAL SHEET UK +44 (0) 1438 833577 US +1 (603) 742 9181... -
Page 6: Mounting Dimensions
PS80-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET MOUNTING DIMENSIONS 8 11/16" Make sure the wall that the bracket is being mounted to is secure and strong enough to support the bracket and screen. 7 1/16" 5 1/8" 3/8"... - Page 7 PS80-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET MARINE LOCK Intended to enable easy servicing by pulling on two cords to release the spring loaded catches at the top of the bracket. The cords would be attached at the bottom back edge of the screen before pushing the bracket back into place.
- Page 8 PS80-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET SCREEN MOUNTING The marine lock can be located in an inner or outer postion to allow the uprights to be located at any desired bolt width pattern up to maximum width 822mm [32.36"]. The inner and outer positions are shown below in VESA 400 and 800 widths.
- Page 9 PS80-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET MARINE CATCH CABLE ROUTING No Cable Routing Bosses used 4 x Cable Routing Bosses are provided to route the 2 Cables hang below marine catch cords to the outer edges of the screen...
- Page 10 MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET ADDITIONAL ACCESSORIES CABLE ROUTING BOSS KIT BALL & SOCKET KIT RUBBER POST KIT PS80-M Extension INCLUDED with the PS80-M Bracket Sets of 4 x Ball and Socket Catches to Sets of 4 x Rubber screen Posts to be...
