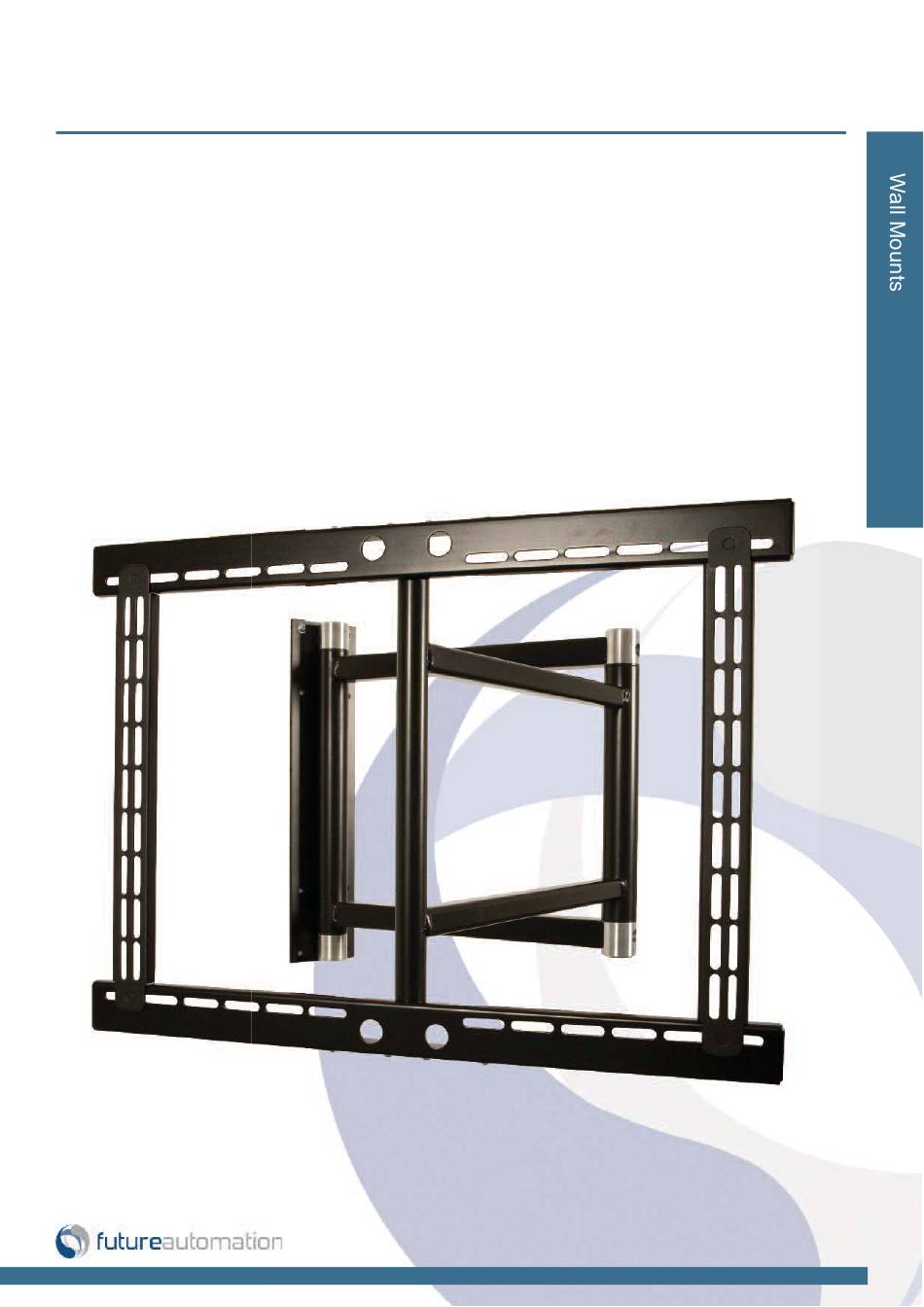

Installation Instructions
DA - Double Arm Bracket
Design Highlights
-Solid Steel Construction Holds Display Securely
-Bi-Directional Swivel up to Over 90 Degrees in Either Direction
-Custom Cut Arms to any Length up to 500mm Per Arm
-Brushed Aluminium Caps for Superb Aesthetic Finish
-Any Colour Finish of Arms Available Upon Request
Thank you for choosing
futureautomation
email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565
ISSUE 001
Advertisement
Table of Contents
Related Manuals for Future Automation DA
Summary of Contents for Future Automation DA
- Page 1 Installation Instructions DA - Double Arm Bracket Design Highlights -Solid Steel Construction Holds Display Securely -Bi-Directional Swivel up to Over 90 Degrees in Either Direction -Custom Cut Arms to any Length up to 500mm Per Arm -Brushed Aluminium Caps for Superb Aesthetic Finish...
-
Page 2: Safety Information
Exceeding the weight capacity can result in serious personal injury or damage to equipment. Future Sound & Vision trading as Future Automation intend to make this and all documentation as accurate as possible. However, Future Automation makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. -
Page 3: Table Of Contents
DA - Double Arm Bracket Contents Page Introduction Safety Information Contents Contents Tool Indicator Icons Installation Parts List Package Contents Stage 1 Removing The Uprights Before You Start Check Stage 2 Vertical Height Alignment Stage 3 Adjusting The Uprights Stage 4... -
Page 4: Contents
Any damage to products during transit that is not checked and notified as “unchecked” or “damaged” upon receipt of delivery. Any part of your system that needs to be replaced during a warranty repair becomes the property of Future Automation. -
Page 5: Parts List
DA - Double Arm Bracket Nuts & Bolts Multipack: Package Contents A range of nuts, bolts, washers and spacers to help add in the 1 - Bracket mounting for your screen 1.1 - Wall Plate 1.2 - Customized Arms 1.3 - Cross Members 1.4 - Uprights... -
Page 6: Removing The Uprights
DA - Double Arm Bracket Removing the Uprights Before you start, check the following: -The product is in good condition -No damage to any parts -Wiring is all secure -The unit is in the closed position The uprights should be attached to the frame. -
Page 7: Vertical Height Alignment
DA - Double Arm Bracket Vertical height alignment Firstly place the screen down onto a flat surface with the back penel facing up making sure that the screen does not get damaged in any away time. When flat place the uprights down into position and carefully bolt to the screen. -
Page 8: Adjusting The Uprights
DA - Double Arm Bracket Adjusting the Uprights The uprights are designed to have different size slots. 7mm slots are for smaller bolts and 9mm slots are for larger bolts. If the mounting points are recessed on the Recess back of the screen, it will be nessary to use the spacers which have been provided. -
Page 9: Mounting The Bracket
DA - Double Arm Bracket Mounting The Bracket Mount the bracket to a secure solid wall, make sure that the bracket is level and at the correct height for viewing when the screen is attached. Page 8 of 12 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... -
Page 10: Mounting The Screen
DA - Double Arm Bracket Mounting The Screen Mount the screen with the uprights back on to the DA bracket and secure in place using the previously removed nuts. Wall ommitted for clarity Page 9 of 12 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565... -
Page 11: Bracket Movement
DA - Double Arm Bracket Bracket Movement Examples of positions that can be created Wall Mount DA - Trouble shooting For information on our products please refer to our web site - www.futureautomation.co.uk or for questions on installations and our product range please... -
Page 12: Technical Overview
DA - Double Arm Bracket A general technical overview of the DA Double Arm Bracket Product Dimensions Variable x95x325mm (W,D,H When Closed) [Variable x3.7x12.8"] Weight (Kg) Variable Maximum Weight (Kg) 50Kg [110.2lb] Standard Colour Black Max Rotation Control Of 3rd... - Page 13 DA - Double Arm Bracket Notes... Page 12 of 12 // email info@futureautomation.co.uk tel: +44 (0) 1438 833577 fax: +44 (0) 1438 833565...
- Page 14 Future Automation Unit 2 Kimpton Enterprise Park Claggy Road Kimpton Hertfordshire SG4 8HP United Kingdom Tel: +44 (0) 1438 833 577 Fax: +44 (0) 1438 833 565 Email: info@futureautomation.co.uk www.futureautomation.co.uk...
