Summary of Contents for Future Automation PS32-M

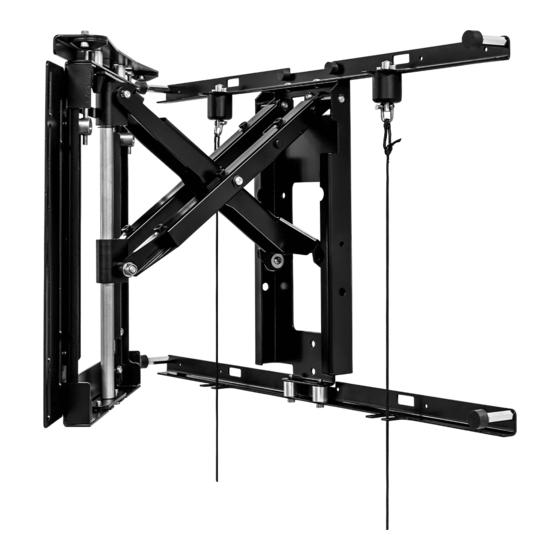

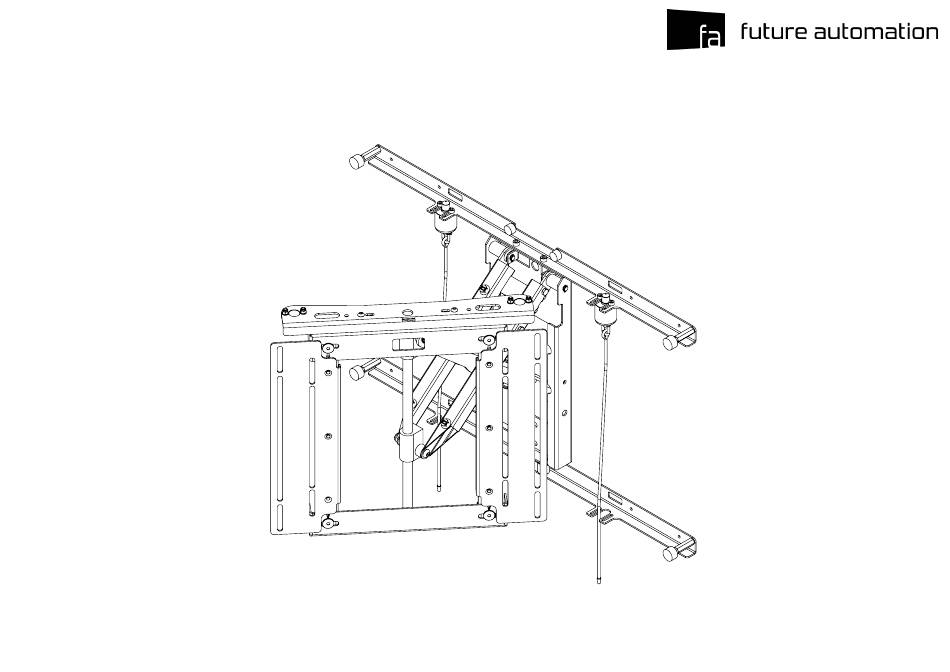

- Page 1 PS32-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET TECHNICAL SHEET UK +44 (0) 1438 833577 US +1 (603) 742 9181 ISSUE 003 FUTUREAUTOMATION SHEET 1...
- Page 2 PS32-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET SPECIFICATION MEASUREMENTS Product Dimensions 437mm (17 3/16") x 700mm (27 9/16") x 56mm (2 3/16") Screen Sizes 32" - 55" Maximum Weight Capacity 60Kg (132 lb) Maximum Extension From Wall 300mm (11 13/16") Minimum Depth From Wall 56mm (2 3/16")
-
Page 3: Screen Angles
PS32-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET SCREEN ANGLES The views below show the approximate maximum swivel angles achievable for varying screen sizes. NOTE: The maximum swivel angle achievable is 50° regardless of screen size 32" 43" 34°... - Page 4 PS32-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET CABLE ROUTING AND SOCKET LOCATION Wall sockets should be ideally placed as shown outside Route the screen cables as shown below ensuring sufficient slack at of the bracket footprint to maximise space for cable routing moving points and secure in place using the integrated cable tie points.
-
Page 5: General Dimensions
PS32-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET GENERAL DIMENSIONS 27 9/16" CLOSED FULL EXTENSION 2 3/16" 11 13/16" 13 7/16" 17 3/16" MAX VESA HEIGHT TECHNICAL SHEET UK +44 (0) 1438 833577 US +1 (603) 742 9181 ISSUE 003... -
Page 6: Mounting Dimensions
PS32-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET MOUNTING DIMENSIONS Make sure the wall that the bracket is being mounted to is secure and strong enough to support the bracket and screen. 4 15/16" 9/16" 5/16" 1 3/8" 6 5/16"... - Page 7 PS32-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET 35mm MARINE LOCK Spacer Intended to enable easy servicing by pulling on two cords to 2 3/16" min. release the spring loaded catches at the top of the bracket. 2 1/2" max.
-
Page 8: Screen Adjustment
PS32-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET SCREEN ADJUSTMENT The angle of the screen can be fine tuned to horizontal by adjusting The PS brackets uprights can be reversed to offer VESA 100, 200, the 2 POZI bolts on top of the screen frame 300 &... - Page 9 PS32-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET MARINE CATCH CABLE ROUTING No Cable Routing 4 x Cable Routing Bosses are provided to route the 2 Bosses used marine catch cords to the outer edges of the screen Cables hang below...
-
Page 10: Additional Accessories
PS32-M MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET ADDITIONAL ACCESSORIES CABLE ROUTING BOSS KIT BALL & SOCKET KIT RUBBER POST KIT Sets of 4 x Ball and Socket Catches to Sets of 4 x Rubber screen Posts to be...
