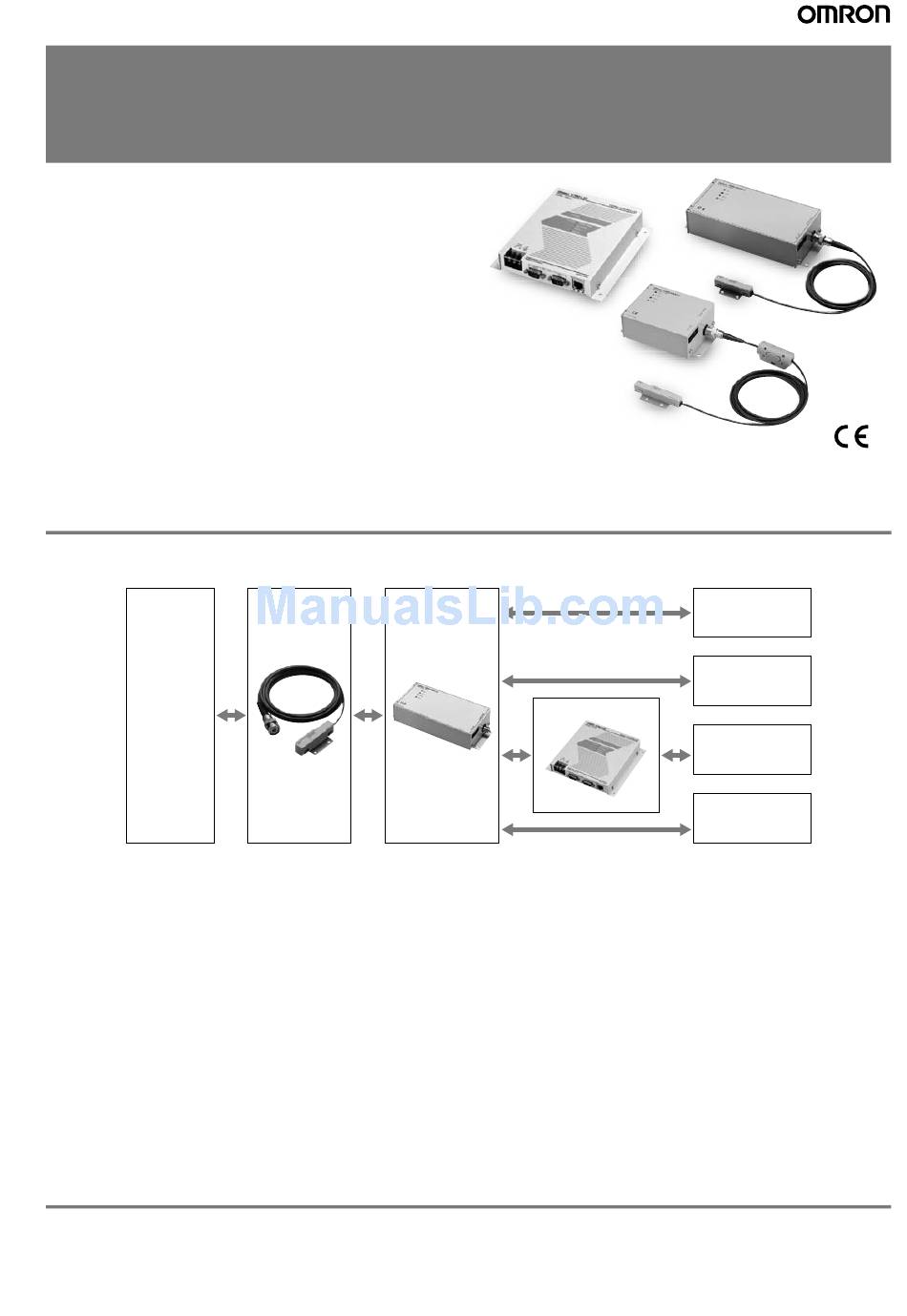

Electromagnetic Inductive RFID System
V640 for Semiconductor Industry
Enables reading and writing
transponders for various Semiconductor
applications, such as FOUPs (Front-
Opening Unified Pods), reticles, and
pods.
• Conforms to Carrier Reader/Writer-related SEMI stan-
dards; SEMI E99, E4, and E5.
• Antenna dimensions conform to SEMI E15.1.
• Reads/writes data embedded in a 32-mm Glass Multipage
Transponder (RI-TRP-DR2B/-WR2B).
• Noise measurement function for detecting proper place-
ment of Antenna.
• Shielded antenna reduces influence of surrounding metal.
• Lineup incudes compact models designed for long-range
communications.
• CE marking/FCC approvals

System Configuration

■ Standard Models
ID Tag
RI-TRP-DR2B
RI-TRP-WR2B
(32-mm Glass
Transponder)
Texas
Instruments
Electromagnetic Inductive RFID System
Amplifier Unit
CIDRW Head
V640-HS61
V640-HAM11-V2
CIDRW Controller
V700-L22
V640 for Semiconductor Industry
RS-232C host device
via dedicated 1:1
protocol
RS-232C host device
via ASCII protocol
RS-232C host device
via SECS I/II protocol
RS-485 host device
via ASCII protocol
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V640 and is the answer not in the manual?

Questions and answers

Related Manuals for Omron V640

Summary of Contents for Omron V640

  • Page 1: System Configuration

    • Conforms to Carrier Reader/Writer-related SEMI stan- dards; SEMI E99, E4, and E5. • Antenna dimensions conform to SEMI E15.1. • Reads/writes data embedded in a 32-mm Glass Multipage Transponder (RI-TRP-DR2B/-WR2B). • Noise measurement function for detecting proper place- ment of Antenna.
  • Page 2 RS-485 host device via ASCII protocol Note: 1. Use of the V700-L11 ID Link Unit enables the Amplifier Unit to be removed/installed while the CIDRW System remains turned ON in the event of a malfunction or during maintenance. 2. Use the V700-L22 CIDRW Controller when using SECS communications protocol.

  • Page 3: Table Of Contents

    Power Supply Connector (1) Power Supply Connector Pins (3) RS-485 Port Connector (1) (See Note.) Note: V640-A90 includes all of these accessories as a set. To purchase individual accessories, contact the manufacturers below directly. To Purchase Individual Accessories Name Model...

  • Page 4: Cidrw Head

    20 M Ω min. (at 100 VDC) between the connector terminals and the case Insulation resistance Dielectric strength 1,000 VAC (50/60 Hz, 1 minute) between the connector terminals and the case (leakage current: 5 mA max.) Vibration resistance 10 to 150 Hz, 0.20-mm double amplitude, 15-m/s...
  • Page 5 35% to 85% (with no condensation) Degree of protection IEC60529: IP20 Ground at a resistance of less than 100 Ω . If grounding is not performed properly, transmission specifica- Ground tions may be adversely affected by the surrounding environment. Weight Approx.

  • Page 6: Applicable Semi Standards

    The Carrier ID Reader Writer (CIDRW) System is an RFID system that conforms to SEMI standards. The V700-L22 CIDRW Controller, the V640- HAM1@ Amplifier Unit, the V640-HS6@ CIDRW Head, and a Texas Instruments ID Tag can be used to configure a Carrier ID Reader Writer (CI- DRW) System that conforms to the following standards: •...
  • Page 7 Dimensions Note: All units are in millimeters unless otherwise indicated. Amplifier Unit V640-HAM11-V2 (30.5) (15.8) (17.8) (13) (12) 46 56 80 (12) (18.2) 55.5 (32.5) Four operation indicator lamps DIP switch (4.5) (11.6) Four, 4.5 dia. (mounting holes) (1.5) Mounting Hole Dimensions 175±0.5...

  • Page 8: Cidrw Controller V700-L22

    Mounting Hole Dimensions Antenna center 4-M3 or 3.5 dia. 20±0.2 29.2 21±0.2 V640-HS62 Four, 3.5 dia. (mounting holes) 3.011-dia. coaxial cable, length 1.9 m Connector Antenna center Mounting Hole Dimensions Antenna center 4-M3 or 3.5 dia. 30 20 12 10 28 max.
  • Page 9 V640 for Semiconductor Industry Electromagnetic Inductive RFID System...
  • Page 10 V640 for Semiconductor Industry Electromagnetic Inductive RFID System...
  • Page 11 V640 for Semiconductor Industry Electromagnetic Inductive RFID System...

  • Page 12: Read And Understand This Document

    The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the uses listed may be suitable for the products: •...

This manual is also suitable for:
