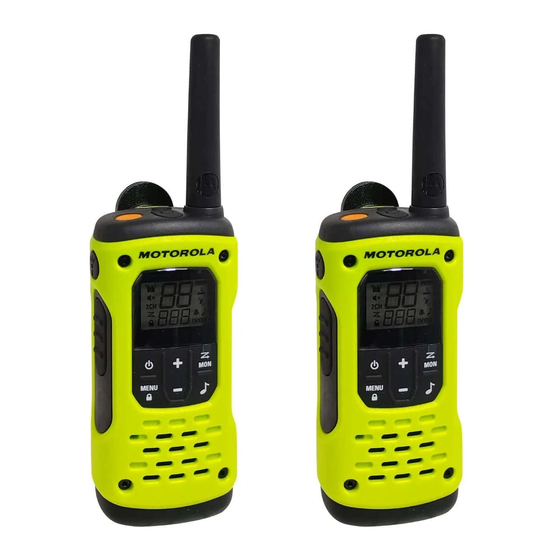

- Page 1 TALKABOUT Two-Way Radio T600PE/T600BR User Guide *MN009864A01* JANUARY 2024 MN009864A01-AA © 2024 Motorola Solutions, Inc. All Rights Reserved.
-
Page 2: Intellectual Property And Regulatory Notices
License Rights The purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal nonexclusive, royalty-free license to use that arises by operation of law in the sale of a product. -
Page 3: Table Of Contents
MN009864A01-AA Contents Contents Intellectual Property and Regulatory Notices..............2 Chapter 1: Radio Overview....................4 Chapter 2: Radio Set-Up...................... 7 2.1 Installing and Charging Batteries....................... 7 2.2 Inserting and Removing the Belt Clip....................7 2.3 Turning the Radio On and Off......................8 2.4 Channels and Sub Codes........................8 2.5 Navigating the Menu Pages.......................8 2.5.1 Operations in the Menu Screen................... -
Page 4: Chapter 1: Radio Overview
MN009864A01-AA Chapter 1: Radio Overview Chapter 1 Radio Overview This section describes the buttons and functions available on the radio. Figure 1: Radio Overview Label Item Label Item Antenna Volume/Adjust Flashlight Button Call Tone PTT Button Easy Pairing Power Button Screen Menu/Lock Emergency Button... - Page 5 MN009864A01-AA Chapter 1: Radio Overview Figure 2: Radio Display Overview Label Item Label Item Channel Easy Pairing Dual Channel Keypad Tone Monitor Silent Tone (Vibrate Alert) Scan Roger Tone Dual Scan Mute Lock Call Tone Sub Code VOX or iVOX Battery Table 1: Buttons and Functionality Buttons...
- Page 6 MN009864A01-AA Chapter 1: Radio Overview Buttons Functionality ● Broadcast the channel and sub code settings by pressing and holding the Easy Pairing button on Radio A until you hear a double beep. NOTE: You can copy from one radio to multiple radios simultaneously. Call Tone Send call tone (ring tone) to other radios by pressing the Call Tone button.
-
Page 7: Chapter 2: Radio Set-Up
NOTE: ● You can use Alkaline AA batteries. ● Motorola Solutions recommends that you use only the battery that comes with your radio. Otherwise, your radio might sink. Inserting and Removing the Belt Clip Procedure: To insert or remove the belt clip, refer to the following images:... -
Page 8: Turning The Radio On And Off
When sub code is set to zero, radio does not block any signals. Everything that is picked up on the channel is sent to the speaker. Motorola Solutions recommends setting your sub code to zero if you are using T600 series radios with radios that do not support the sub code feature. For detailed instructions on... -
Page 9: Operations In The Menu Screen
MN009864A01-AA Chapter 2: Radio Set-Up Home Start/Stop Monitor function Start/Stop Scan function Change Channel setting Change Sub Code setting Menu Change Call Tone setting Change VOX (Voice Operated Transmission) setting Change Dual Watch Channel setting and enter Dual Watch mode Change Dual Watch Sub Code setting and enter Dual Watch mode Change Vibrate Alert Setting Change Keypad Tone Setting... -
Page 10: Talking Or Transmitting
MN009864A01-AA Chapter 2: Radio Set-Up Menu Page Use the + or - button to perform the following actions: Talk Confirmation Tone Setting Turn the Talk Confirmation Tone on or off. This tone is transmitted when you release the PTT button, similar to saying "Roger" or "Over."... -
Page 11: Adjusting Speaker Volume
MN009864A01-AA Chapter 2: Radio Set-Up Adjusting Speaker Volume Procedure: Press the + or - button from the home screen. Headset Usage ● When a headset is connected to the radio, the radio speaker is disabled. Wear the connected headset to monitor and receive messages. -
Page 12: Chapter 3: Additional Information
MN009864A01-AA Chapter 3: Additional Information Chapter 3 Additional Information This chapter explains the features of your radio. Internal Voice Operated Transmission (iVOX)/Voice Operated Transmission (VOX) The microphone detects if you are talking when using iVOX or VOX. If you are talking, the radio triggers the transmission automatically. -
Page 13: Ip-67 Waterproof Rating
To maintain audio quality, if the radio is submerged in water, shake the radio briskly to remove water trapped inside the speaker grille and microphone port. Motorola Solutions recommends rinsing the radio with fresh water if the radio is exposed to salt water to preserve the life of the radio. -
Page 14: Push-To-Talk Time-Out Timer
MN009864A01-AA Chapter 3: Additional Information Push-to-Talk Time-Out Timer To avoid airwave traffic congestion, transmission ends after one minute even if the PTT button is still pressed. You can reset the timer by releasing the PTT button briefly. 3.10 Channels and Frequencies This section shows the channels and its frequencies available for the radio. -
Page 15: Chapter 4: Licensing Information
MN009864A01-AA Chapter 4: Licensing Information Chapter 4 Licensing Information Brazil The frequency general use is subject to the Resolution nº 680 and to the Act nº 14448, Item 15–Radio Communication Equipment of General Use. It is not required use license in Brazil. See the Anatel site for more information at http://www.anatel.gov.br. -
Page 16: Chapter 5: Safety And General Information
National and international regulations require manufacturers to comply with the RF energy exposure limits for portable two-way radios before they can be marketed. Your Motorola Solutions two-way radio is designed, manufactured, and tested to comply with all applicable national and international regulations for human exposure to radio frequency electromagnetic energy. -
Page 17: Operating Instructions
1 inches (2.5 cm) away from the nose or lips. Antenna should be kept away from the eye. ● When worn on the body, always place the radio in a Motorola Solutions-approved clip, holder, holster, case, or body harness for this product. ●... -
Page 18: Operational Warnings
CAUTION: Use only Motorola Solutions approved batteries. ● Risk of explosion if the battery is replaced by an incorrect type. ● Charge your battery using the approved Motorola Solutions charger. ● Use the battery in accordance with its water and/or dust Ingress Protection (IP) rating. ●... -
Page 19: Safety Instructions For Power Supply
Do Not Substitute Options or Accessories The Motorola Solutions communications equipment certified as intrinsically safe by the approving agency (FM, UL, CSA, CENELEC) is tested as a complete system which consists of the listed agency approved portable, approved battery, and approved accessories or options, or both. This approved portable and battery combination must be strictly observed. -
Page 20: Chapter 6: Warranty
This warranty extends only to the first consumer purchaser, and is not transferable. What will MOTOROLA SOLUTIONS, INC. do? Motorola Solutions, Inc, will replace any Products or Accessories that do not conform to this warranty. We may use functionally equivalent Products or Accessories. - Page 21 ● Other acts which are not the fault of Motorola Solutions. Use of Non-Motorola Sol- Defects or damage that result from the use of Non-Motorola Solutions utions branded Products branded or certified products, accessories, software or other peripheral and Accessories: equipment.
- Page 22 Call the telephone number designated above for the Product with which they are used. You will receive instructions on how to ship the Products or Accessories at your expense, to Motorola Solutions or a Motorola Solutions Authorized Repair Center. To obtain service, you must include the following: ●...
