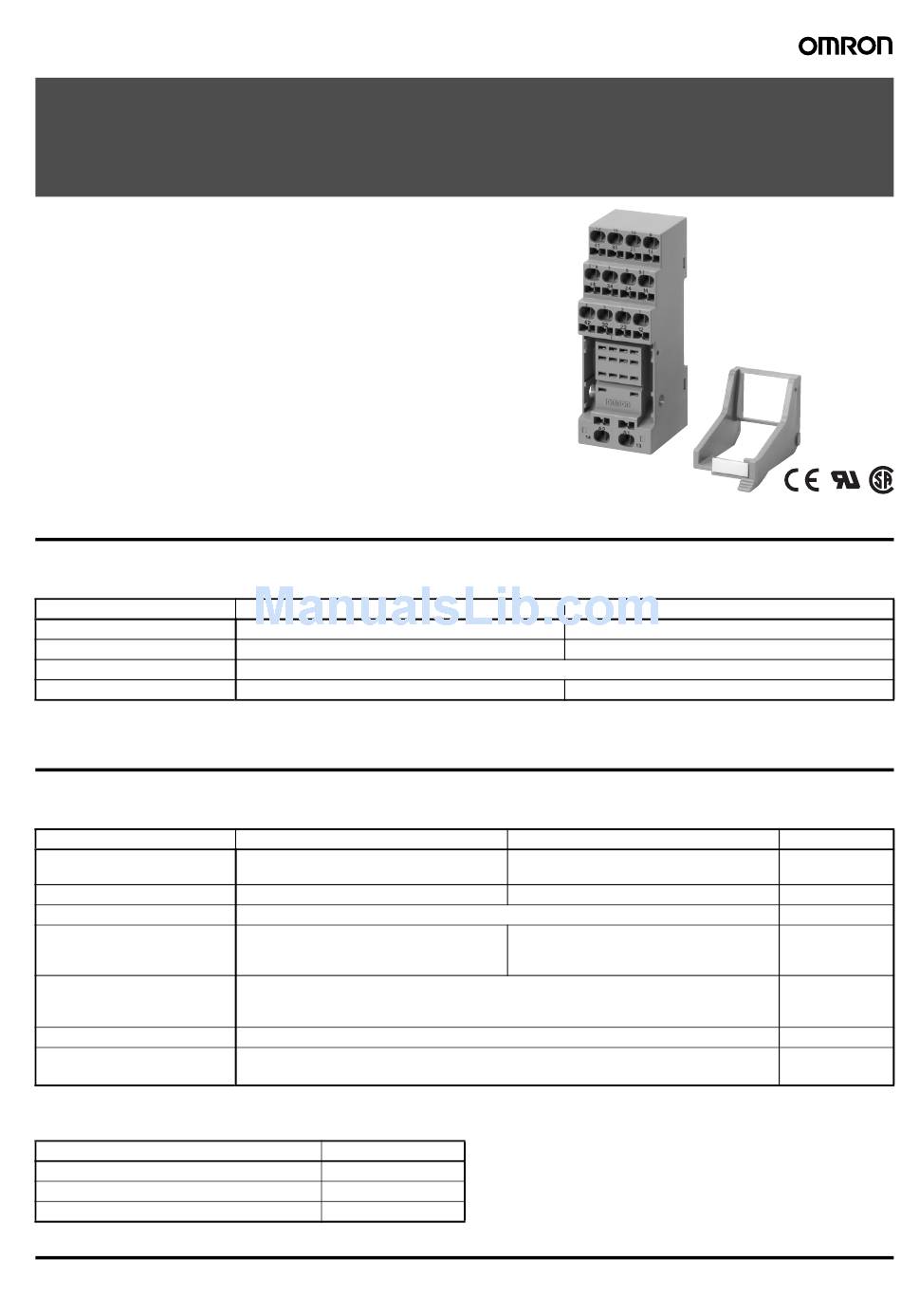

Page 1
Screwless Clamp Terminal Socket PYF@@S • Screwless clamping greatly contributes to reducing wiring time. • No over or under tightening of cable connection so better con- tact reliability is achieved. • Double wiring possible on all the terminals, and easy bridge and branch connections.
PYF14S PYF08S Common contacts Make contacts Break contacts Coil Note: In case MY2 relay will be used in combination with PYF14S terminals 21, 22, 24 and 31, 32, 34 are not connected. Mounting Height (With Lever) PYF14S PYF08S 73.6 typ.
(AEF. 3 × 75E) Examples: VESSEL No. 9900-(-)2.5 × 75 (No. 9900-(-)3 × 100) WAGO 210-119 WIHA 260/2.5 × 40 (260/3 × 50) *Chamfering the tip of the driver improves insertion when used as an exclusive tool. PYF@@S Screwless Clamp Terminal Socket...
Applicable Wire Type Solid wires, stranded wires, flexible wires, or wires with ferules can Note: 1. If the outer diameter D of the wire is less than 2.2 mm and be used. the exposed conductor length is less than 8 mm potentially bad connection might occur in case wire is pushed to far in- (See note 1.) <...
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. In the interest of product improvement, specifications are subject to change without notice. Cat. No. J122-E2-04-X...
