- Page 1 USER MANUAL U1 Voice PCM Sch./Ref. 1722/16 Version: V1.4 Code: SRD-UME1722/16-0918-V1.4...
- Page 2 Preface Thank you for choosing Urmet product. This manual is the user manual of U1 series digital system U1 Voice PCM (Ref. 1722/16). Please read this manual carefully before using the U1 Voice PCM. Disclaimer Although all contents in this manual have been checked carefully, biases and errors may exist in it.
-
Page 3: Table Of Contents
1.3.1 Front view ................5 1.3.2 Rear view ................6 Chapter 2 Configuration ................7 2.1 U1 Voice PCM matches with U1 Voice 7” IP Monitor ...... 7 2.2 Card management ................8 2.3 Key synchronization ................. 9 2.4 Unlock time setting ................. 10 2.5 Withdrawing defense linkage ............ -
Page 4: Chapter 1 Product Overview
IS IN YOUR LIFE Chapter 1 Product overview This product is U1 Voice PCM of U1 series digital building intercom system. It adopts standard Category 5 cable connection to achieve communication with U1 Voice 7” IP Monitor or U1 Voice Switch Board, and supports IC access control. -
Page 5: Camera

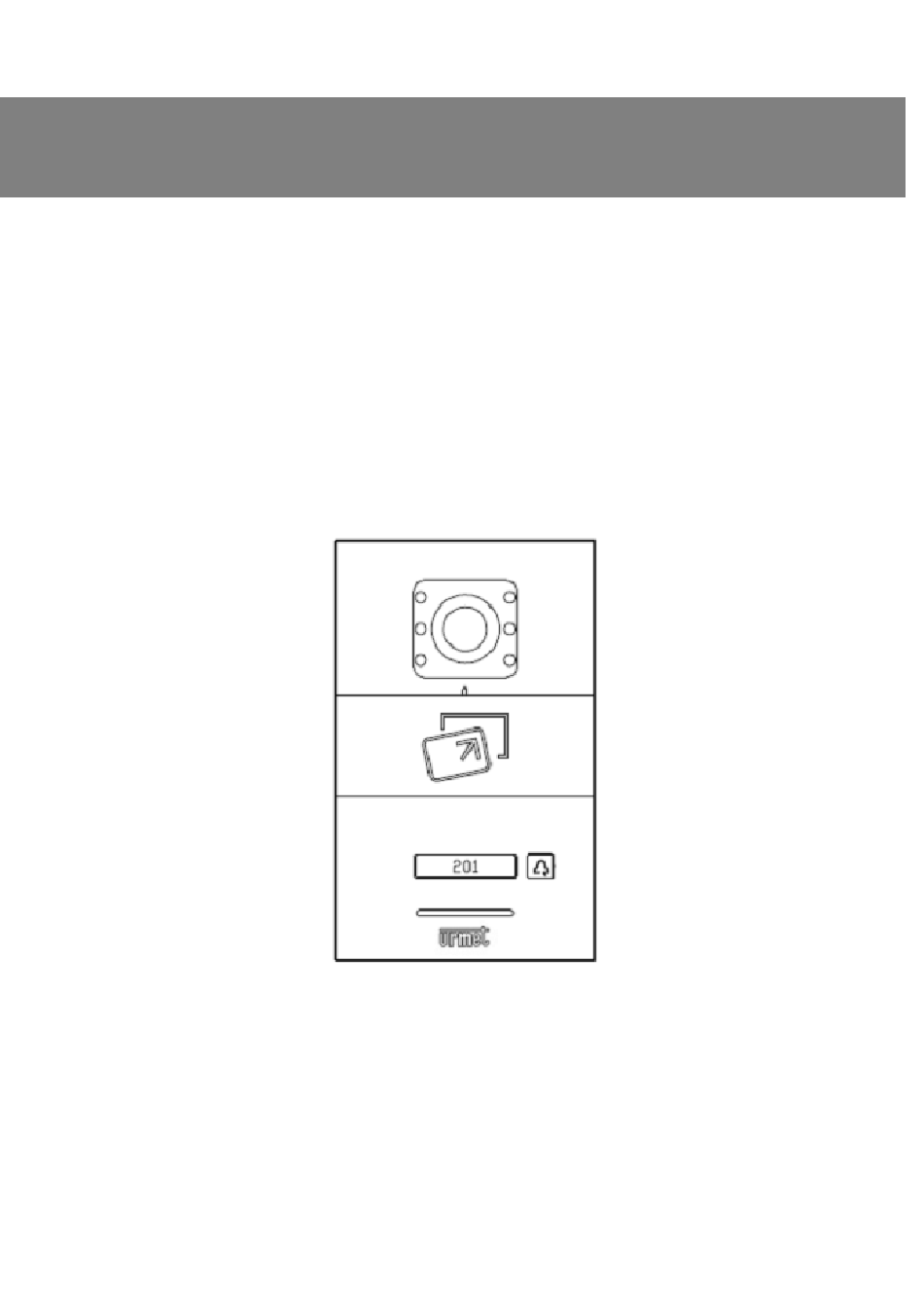

IS IN YOUR LIFE 1.2.2 Camera Type: CMOS Pixel: 30W Viewing angle: diagonal 95° Minimum illumination: 0 lux Focal length: 2.2mm Fill light mode: white light 1.3 Description of appearance and interface 1.3.1 Front view Figure 1.1 Front view Camer Fill light Microphone Card swiping area... -
Page 6: Rear View
IS IN YOUR LIFE 1.3.2 Rear view Figure 1.2 Rear view Interface description RJ45 network interface: connection line interface, connect 24V non-standard PoE switch; NO COM NC: Normally open/normally closed interface; GS GS-GND: Door status detection interface; UNLOCK: Indoor unlock interface; GND DC+: Independent power supply interface. -
Page 7: Chapter 2 Configuration
2. Press the Ring button 2 seconds of PCM, within 3 minute after power on, until 3 beeping sounds are heard. Then press the U1 Voice PCM key once again, the U1 Voice PCM beeps once and enters into configuration state. -
Page 8: Card Management
2.2 Card management Figure 2.2 Card management interface After entering into the interface, select the U1 Voice PCM to be operated and conduct relevant operations. The specific functions represented by the icons at the bottom of the interface are shown below: : Delete all registered cards;... -
Page 9: Key Synchronization
U1 Voice PCM. In this circumstance, only the U1 Voice PCM status bar of the U1 Voice 7” IP Monitor is highlighted, the U1 Voice PCM status bar of other U1 Voice 7” IP Monitors shows grey. -
Page 10: Unlock Time Setting
Figure 2.5 Key synchronization process interface Figure 2.6 Successful key synchronization interface 2.4 Unlock time setting Enter into the U1 Voice PCM management interface to set the unlock time. Unlock time setting range is 5~30 seconds. -
Page 11: Withdrawing Defense Linkage
Figure 2.7 Door opening alarm interface 2.7 Door status alarm tone Tick the door status alarm tone. When the time that the U1 Voice PCM spends on the door opening detection exceeds 120 seconds, the alarm prompt tone shall sound automatically, prompting the resident to close the door. -
Page 12: Tamper Alarm
Tamper alarm is the alarm given when the U1 Voice PCM is disassembled under force. The alarm will prompt the administrator that the U1 Voice PCM of a certain resident is being damaged. The alarm prompt of the U1 Voice Switch Board is shown below: Figure 2.8 Tamper alarm interface... -
Page 13: Chapter 3 Operating Instructions
Unlock via card swiping Unlock by pressing the registered card close to the card swiping area on the U1 Voice PCM. Unlock via U1 Voice 7” IP Monitor When the resident is being called or the resident is monitoring the U1 Voice PCM, the U1 Voice 7”... -
Page 14: Chapter 4 Installation
IS IN YOUR LIFE Chapter 4 Installation 4.1 Installation steps First step: installation of the box embedded in wall; Dimension (W/H/D): 103*178*43mm Clip Second step: Clip the door phone into the box embedded in wall Wall and fix it with screws. embedded in wall Screw... -
Page 15: Recommended Installation Height
IS IN YOUR LIFE 4.2 Recommended installation height Ground U1 Voice Call Module：the top of the product is 1.64 meters above the ground. Embedded Box：the top of the product is 1.63 meters above the ground. -
Page 16: Notes
IS IN YOUR LIFE Notes 1. Please keep the equipment away from strong magnetic field, hot and moist environments; Be away from Be away from Be away from magnetic field hot environment moisture 2. Protect the equipment from falling down on the ground or being subject to high impact;... -
Page 17: Appendix1 Figure Index
Appendix1 Figure index Figure 1.1 Front view .................... 5 Figure 1.2 Rear view ..................... 6 Figure 3.1 U1 Voice PCM configuration interface ..........7 Figure 3.2 Card management interface ..............8 Figure 3.3 Card swiping prompt interface ............. 9 Figure 3.4 Successful card registration interface ..........9 Figure 3.5 Key synchronization process interface ..........
