10ft Gable Traditional Apex Windowless Workshop Building Instructions
Please print and read the instructions carefully
RANGEs Covered:
6000
Covers Multiple Sizes:
12x10, 16x10
20x10
BEFORE
YOU
START
and please retain for future reference
Please note that all images are for illustration purposes only.
For Queries and Help please contact Product Support: 01636 858 377
1) Take 5
yourself with the
minutes
parts, QTy's and
and have
Sizes on the
a coffee.
PACKING LIST.
Covers All 10ft Gable Sizes
3) Read the
2) Reacquaint
instructions
thoroughly and
then re-read if
necessary.
Boarded Door
Covered
CODE:
INS-0038
V1.0-301015
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Billyoh INS-0038
Summary of Contents for Billyoh INS-0038
- Page 1 Covers Multiple Sizes: 12x10, 16x10 20x10 Covers All 10ft Gable Sizes CODE: BEFORE 3) Read the 2) Reacquaint 1) Take 5 INS-0038 instructions yourself with the minutes thoroughly and parts, QTy’s and and have START then re-read if Sizes on the a coffee.
- Page 2 IMPORTANT SAFETY NOTICES GENERAL RECOMMENDATIONS Thank you for purchasing this building. We hope you will be delighted with your new building for many years to come. These instructions have been written as a guide to assembling this building and will provide you with an overview of GARDEN BUILDINGS: THESE PRODUCTS ARE INTENDED FOR DOMESTIC AND OUTDOOR USE ONLY.
-
Page 3: Trouble Shotting Guide
For buildings that are bought without CARDBOARD to protect oors please go to this webpage to the glazing when download the NO FLOOR GUIDE which xing WINDOW will guide you in building a base for your CLOAKING STRIPS,WINDOW oorless building: BEADING or WINDOW www.billyoh.com/global/guides/NO-FLOOR-GUIDE.pdf CROSSES. - Page 4 U2004 6000 Traditional Apex Workshop 10ft Gables 20x10 12x10 (P) 2ft (P) 4ft (P) 4ft (P) 2ft (P) 3ft (P) 3ft (P) 4ft (P) 4ft (P) 3ft (P) 3ft 586mm 1172mm 1172mm 1172mm 1172mm 586mm 879mm 879mm 879mm 879mm 16x10 (P) 4ft (P) 4ft (P) 4ft...

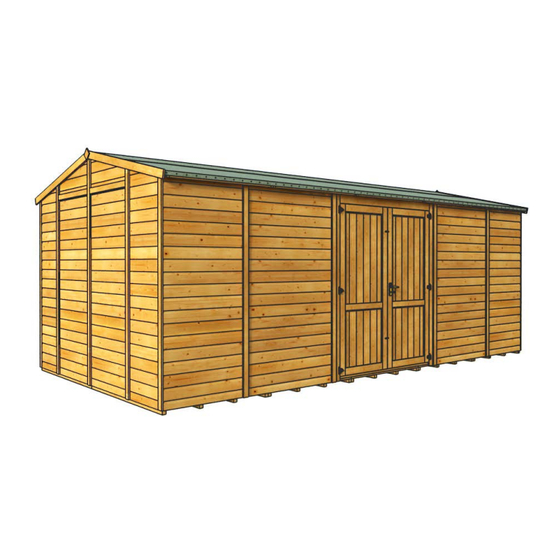

- Page 5 Exploded View - 20x10 Traditional Apex Windowless Workshop Central Double Door Roof Panel (RTG) Roof Felt (Comes in roll(s)) Finial (FI) Roof Truss Fascia Board (TRU) (FB) Panel Gable Centre (PGC) Panel Gable Right (PGR) Cloaking Strip (CSP) Double Door (DD) Plain Panels (PP) Plain...
- Page 6 Exploded View - 16x10 Traditional Apex Windowless Workshop Central Double Door Roof Panel (RTG) Roof Felt (Comes in roll(s)) Finial (FI) Roof Truss Fascia Board (TRU) (FB) Panel Gable Centre (PGC) Panel Gable Right (PGR) Cloaking Strip (CSP) Double Door (DD) Plain Panel (PP) Plain...
- Page 7 Exploded View - 12x10 Traditional Apex Windowless Workshop Central Double Door Roof Panel (RTG) Roof Felt (Comes in roll(s)) Finial (FI) Roof Truss (TRU) Fascia Board (FB) Panel Gable Centre (PGC) Panel Gable Right (PGR) Cloaking Strip (CSP) Double Door (DD) Plain Panel (PP) Plain...
- Page 8 01636 858 377 For Queries and Help please call Product Support: Floor Stages Side Side Back Back Flip Floor back over with the S50 x 8 joists running left to right Top View Diagram Wall Panel Stages S50 x 5 Back Place a Plain Panel Plain Panel (PP)
- Page 9 01636 858 377 For Queries and Help please call Product Support: Central Gable Fixing Stage 3ft Plain Panel 3ft Plain Panel 3ft Plain Panel Fix the Gable Central Panel to the top of S50 x 5 S50 x 5 S50 x 4 3ft Plain Panels Truss Fixing Stage Fix additional wall panels.
- Page 10 01636 858 377 For Queries and Help please call Product Support: Fix the Truss Place the Plain Gable Section pieces together next to the Back Plain Panels Back 1497mm Back 833mm S50 x 5 N30 x 12 2250mm Place the Plain Panel on the inside of the Plain Gable Panels S50 x 10 Front...
- Page 11 01636 858 377 For Queries and Help please call Product Support: Front 16x10 Only Front Front 3ft Plain Panel 4ft Plain Panel S50 x 5 S50 x 5 S50 x 5 On 16x10 building this On a 16x10 building this Fix the Door Frames will be 2ft Plain Panel will be a 3ft Plain Panel...
- Page 12 01636 858 377 For Queries and Help please call Product Support: Truss Position Diagram S50 x 8 879mm or 1172mm Side View The distance 879mm or 1172mm is the width of a Roof Sheet. The Truss must be positioned where the Roof Measure from the Panels will meet.
- Page 13 01636 858 377 For Queries and Help please call Product Support: Position the Position the Roof Panel Roof Panel square with the framing square with S70 x 10 and push up to the centre S70 x 10 The Roof Panel should h he Side Panel wid h.
- Page 14 01636 858 377 For Queries and Help please call Product Support: S70 x 10 S70 x 10 S70 x 10 Push the Roof Panel Push the Roof Panel up to the centre. up to the centre. This will require 2 people This will require 2 people make the building ridgid.
- Page 15 01636 858 377 For Queries and Help please call Product Support: Fixing the Door Lock Handle Align Door Lock Handle over the key hole on the inside of to the frame. S30 x 12 S25 x 24 S25 x 2 S25 x 4 Fix the Door Rebate to S30 x 4...
- Page 16 01636 858 377 For Queries and Help please call Product Support: Facia Block Fixing Stage Cloaking Strip Fixing Stage Cut to size Cut to size 1610mm S50 x 16 2100mm 2100mm Felt Fixing Stage 70mm overhang at each end Fold over Corner Tack to hold Length of...
- Page 17 01636 858 377 For Queries and Help please call Product Support: Repeat previous stages Repeat previous stages 100mm for this side for this side For Shingles Roof Covering Only For Shingles Roof Covering Only For Shingles Roof Covering Only Cut the full roll of felt in half lenght ways 100mm Only 1 roll of felt is used...
- Page 18 01636 858 377 For Queries and Help please call Product Support: Facia Fixing Stage Protect your building 20x10 Traditional Apex Windowless Workshop Shown 1800mm Treat after assembly and N30 x 16 N30 x 4 annually to protect Protect your building Protect your building 16x10 Traditional Apex Windowless Workshop Shown 12x10 Traditional Apex Windowless Workshop Shown...
