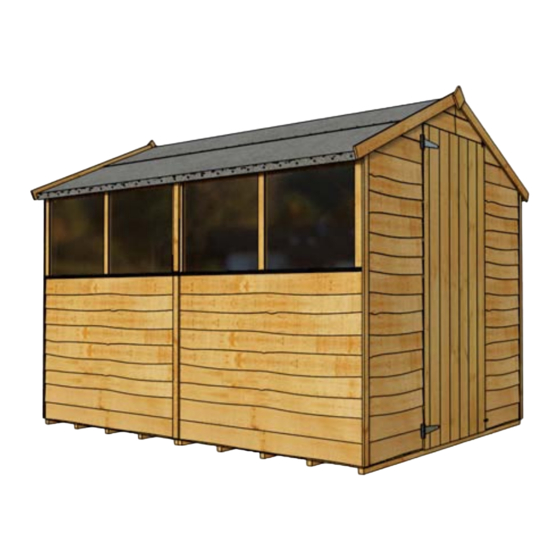

6ft Gable Single and Stable Door Building Instructions
Please print and read the instructions carefully
RANGEs Covered:
20, 30, 300
Covers Multiple Sizes:
3x6, 4x6
6x6, 7x6, 8x6
9x6, 10x6, 12x6
BEFORE
YOU
START
and please retain for future reference
Please note that all images are for illustration purposes only.
For Queries and Help please contact Product Support: 01636 858 377
Covers Windowed Single Door
Cover Windowed and Windowless
Stable Door All 6ft Gable Sizes
1) Take 5
yourself with the
minutes
parts, QTy's and
and have
Sizes on the
a coffee.
PACKING LIST.
All 6ft Gable Sizes
3) Read the
2) Reacquaint
instructions
thoroughly and
then re-read if
necessary.
Covers Windowless Single Door
All 6ft Gable Sizes
Covers Windowed Special Edition
Single Door All 6ft Gable Sizes
CODE:
INS-0001
V1.3-031114
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Billyoh INS-0001
Summary of Contents for Billyoh INS-0001
- Page 1 Cover Windowed and Windowless Single Door All 6ft Gable Sizes Stable Door All 6ft Gable Sizes CODE: BEFORE 3) Read the 2) Reacquaint 1) Take 5 INS-0001 instructions yourself with the minutes thoroughly and parts, QTy’s and and have START...
- Page 2 IMPORTANT SAFETY NOTICES GENERAL RECOMMENDATIONS Thank you for purchasing this building. We hope you will be delighted with your new building for many years to come. These instructions have been written as a guide to assembling this building and will provide you with an overview of GARDEN BUILDINGS: THESE PRODUCTS ARE INTENDED FOR DOMESTIC AND OUTDOOR USE ONLY.
-
Page 3: Trouble Shotting Guide
For buildings that are bought without CARDBOARD to protect oors please go to this webpage to the glazing when download the NO FLOOR GUIDE which xing WINDOW will guide you in building a base for your CLOAKING STRIPS,WINDOW oorless building: BEADING or WINDOW www.billyoh.com/global/guides/NO-FLOOR-GUIDE.pdf CROSSES. - Page 4 U1390 - 20, 30, 300 Classic 6ft - Gables (P) 3ft (P) 3ft 879mm 879mm (P) 3ft (P) 3ft (P) 3ft (P) 3ft 879mm 879mm 879mm 879mm (P) 1ft9 (P) 1ft9 (P) 1ft9 (P) 1ft9 512.5mm 512.5mm 512.5mm 512.5mm 1ft9 1ft9 512.5mm 512.5mm...
- Page 5 Exploded View - 6x6, 7x6, 8x6 Windowed Roof Felt (Comes in roll(s)) Single Door (SD) Stable Door (STD) Roof Sheet Finial (FI) (RSS) Roof Truss Fascia Board (FB) (TRU) Door Gable Top (DG) Back Gable Top (PG) Plain Panel (PP) Cloaking Strip (CS) Window...
- Page 6 Exploded View - 3x6, 4x6 Windowless Single Door Roof Felt (Comes in roll(s)) Finial (FI) Roof Sheet (RSS) Fascia Board (FB) Back Gable Top (PG) Door Gable Top (DG) Cloaking Strip (CS) Front Panel (PP) Single Door (SD) Plain Panel (PP) If Windowed this is a Floor Section ASM (SS or TG) Window Panel (WP)
- Page 7 Exploded View - 8x6 Special Edition Single Door Roof Felt (Comes in roll(s)) Finial (FI) Roof Sheet (RSS) Roof Truss Fascia Board (TRU) (FB) Door Gable Back Gable Top (DG) Top (PG) Cloaking Strip (CS) Front Window Panel (PP) Glazing (GL) Window Panel (WP) Single Door (SD) Floor Section ASM (SS or TG)
- Page 8 Exploded View - 9x6, 10x6, 12x6 Windowed Single Door Roof Felt (Comes in roll(s)) Finial (FI) Roof Sheet (RSS) Roof Truss Fascia Board (FB) (TRU) Door Gable Back Gable Top (DG) Top (PG) Cloaking Strip (CS) Window Glazing (GL) Front Panel (PP) Window Panels (WP) Single Door (SD) If Windowless these...
- Page 9 01636 858 377 For Queries and Help please call Product Support: Floor Stages Lay floor sections with Joists facing upwards Side Back The floor sections will be SS or TG Skip to Stage 3 if your building Flip Floors back over S50 x 4 only requires 1 floor section with Joists on floor...
- Page 10 01636 858 377 For Queries and Help please call Product Support: Windowed Special Edition Only Place the Window Panel Fix additional wall panels. They next to the Back Panel should line up with the floors Place the 2ft Plain Panel next to the Back Panel Back Back...
- Page 11 01636 858 377 For Queries and Help please call Product Support: Truss Fixing Stage Fix the 2 Truss pieces together Use the Door Gable Top (DG) to align the Truss sections (TRU) S50 x 3 3x6 and 4x6 buildings don’t TRU x 2 N30 x 6 require a Truss...
- Page 12 01636 858 377 For Queries and Help please call Product Support: Truss Fitting Stage S30 x 8 S50 x 2 S50 x 6 Fix the Door Gable to the Front Panels and fit the Fixing Brackets S50 x 2 Roof Fixing Stage Roof Sheet Position 995mm Side View...
- Page 13 01636 858 377 For Queries and Help please call Product Support: The Roof Sheet should fit half Position the Roof Sheet way across the Roof Truss square with Position the Roof Sheet first sheet square with the framing. and push up to the centre N30 x 12 The Roof Sheet...
- Page 14 01636 858 377 For Queries and Help please call Product Support: Stable Door Fixing Stage Screw the Wall Hinges Panels to the floor fix to these Braces S30 x 16 Back View of Doors Single Door Fixing Stage S30 x 12 S30 x 8 S25 x 12 S25 x 2...
- Page 15 01636 858 377 For Queries and Help please call Product Support: Window Fixing Stage Windowed Building Only 532mm S30 x 6 CSW x 1 S25 x 2 GL x 1 WS x 1 N30 x 3 Full Side Windows Only Cloaking Strip Fixing Stage Windowed Building Only Do not nail...
- Page 16 01636 858 377 For Queries and Help please call Product Support: Felt Fixing Stage 70mm overhang at each end Tack to hold in place Length of roof + 140mm Felt Felt Felt Front View Fold over (6ft Gables) Eaves 1440mm or (3 PIECES OF FELT) 1500mm Fold over...
- Page 17 01636 858 377 For Queries and Help please call Product Support: Fascia Fixing Stage Protect your building Pilot drill holes first 4x6 Windowless Shown FB x 4 FI x 2 1079mm Treat after assembly and N30 x 12 N30 x 4 annually to protect Protect your building Protect your building...
- Page 18 01636 858 377 For Queries and Help please call Product Support: Protect your building 8x6 Windowed Stable Door Shown Treat after assembly and annually to protect...
