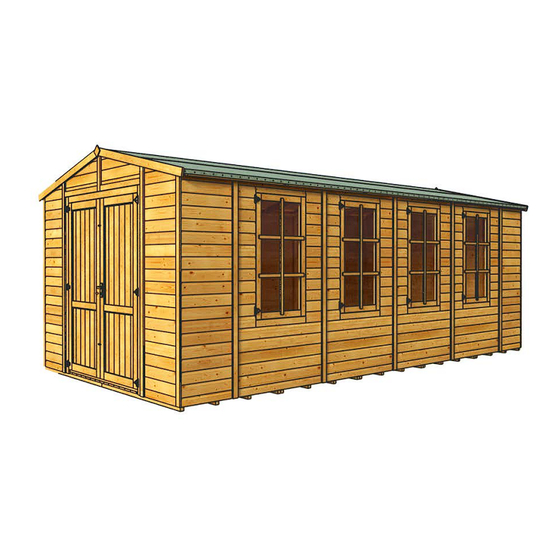

10ft Gable Traditional Apex Door End Windowed Workshop
Please print and read the instructions carefully
RANGEs Covered:
6000
Covers Multiple Sizes:
12x10, 16x10
20x10
BEFORE
YOU
START
Building Instructions
and please retain for future reference
Please note that all images are for illustration purposes only.
For Queries and Help please contact Product Support: 01636 858 377
Covers All 10ft Gable Sizes
1) Take 5
yourself with the
minutes
parts, QTy's and
and have
Sizes on the
a coffee.
PACKING LIST.
3) Read the
2) Reacquaint
instructions
thoroughly and
then re-read if
necessary.
Covers Modern and Georgian
style windows
Boarded Door
Covered
CODE:
INS-0042
V1.0-221015
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Billyoh INS-0042
Summary of Contents for Billyoh INS-0042
- Page 1 Covers Multiple Sizes: 12x10, 16x10 20x10 Covers All 10ft Gable Sizes CODE: BEFORE 3) Read the 2) Reacquaint 1) Take 5 INS-0042 instructions yourself with the minutes thoroughly and parts, QTy’s and and have START then re-read if Sizes on the a coffee.
- Page 2 IMPORTANT SAFETY NOTICES GENERAL RECOMMENDATIONS Thank you for purchasing this building. We hope you will be delighted with your new building for many years to come. These instructions have been written as a guide to assembling this building and will provide you with an overview of GARDEN BUILDINGS: THESE PRODUCTS ARE INTENDED FOR DOMESTIC AND OUTDOOR USE ONLY.
-
Page 3: Trouble Shotting Guide
For buildings that are bought without CARDBOARD to protect oors please go to this webpage to the glazing when download the NO FLOOR GUIDE which xing WINDOW will guide you in building a base for your CLOAKING STRIPS,WINDOW oorless building: BEADING or WINDOW www.billyoh.com/global/guides/NO-FLOOR-GUIDE.pdf CROSSES. - Page 4 U2004 6000 Traditional Apex Workshop 10ft Gables 20x10 12x10 (P) 2ft (P) 4ft (P) 4ft (P) 2ft (P) 4ft (P) 4ft (P) 4ft (P) 4ft (P) 4ft 586mm 1172mm 1172mm 1172mm 1172mm 586mm 1172mm 1172mm 1172mm 16x10 (P) 4ft (P) 4ft (P) 4ft (P) 4ft 1172mm...
- Page 5 Exploded View - 20x10 Traditional Apex Windowed Workshop Gable Double Door End Roof Panel (RTG) Roof Felt (Comes in roll(s)) Finial (FI) Roof Truss Fascia Board (TRU) (FB) Panel Gable Centre (PGC) Panel Gable Right (PGR) Cloaking Strip (CSP) Opening Window Panel (OWP) 2ft Plain Window...
- Page 6 Exploded View - 16x10 Traditional Apex Windowed Workshop Gable Double Door End Roof Panel (RTG) Roof Felt (Comes in roll(s)) Finial (FI) Roof Truss Fascia Board (TRU) (FB) Panel Gable Centre (PGC) Panel Gable Right (PGR) Cloaking Strip (CSP) Opening Window Panel (OWP) Double Window...
- Page 7 Exploded View - 12x10 Traditional Apex Windowed Workshop Gable Double Door End Roof Panel (RTG) Roof Felt (Comes in roll(s)) Finial (FI) Roof Truss (TRU) Fascia Board (FB) Panel Gable Centre (PGC) Panel Gable Right (PGR) Cloaking Strip (CSP) Window Opening Window Double Glazing (GL)
- Page 8 01636 858 377 For Queries and Help please call Product Support: Floor Stages Side Side Back Back Flip Floor back over with the S50 x 8 joists running left to right Top View Diagram Wall Panel Stages S50 x 5 Back Place a Plain Panel Plain Panel (PP)
- Page 9 01636 858 377 For Queries and Help please call Product Support: Central Gable Fixing Stage 3ft Plain Panel 3ft Plain Panel 3ft Plain Panel Fix the Gable Central Panel to the top of S50 x 5 S50 x 5 S50 x 4 3ft Plain Panels Truss Fixing Stage Fix additional wall panels.
- Page 10 01636 858 377 For Queries and Help please call Product Support: Fix the Truss Fix the Door Frames pieces together and Door Threshold 1497mm 833mm S50 x 8 N30 x 12 S50 x 14 2250mm Place the Plain Panel on the Place the Gable Door End Section inside of the Gable Door next to the Back Plain Panels...
- Page 11 01636 858 377 For Queries and Help please call Product Support: Front 16x10 & 12x10 Only Front Front 4ft Window Panel 4ft Window Panel S50 x 5 S50 x 5 S50 x 5 On 16x10 and 12x10 Fix additional window S50 x 8 building this will be panels.
- Page 12 01636 858 377 For Queries and Help please call Product Support: Truss Position Diagram 879mm or 1172mm Screw the Wall Side View The distance 879mm or 1172mm is the width of a Roof Sheet. Measure from the framing to the centre of the Truss Roof Panel Position Position the Roof Panel...
- Page 13 01636 858 377 For Queries and Help please call Product Support: Position the Roof Panel square with S70 x 10 S70 x 10 S70 x 10 and push up to the centre Push the Roof Panel up to the centre. This will require 2 people make the building ridgid.
- Page 14 01636 858 377 For Queries and Help please call Product Support: S70 x 10 S70 x 10 Push the Roof Panel up to the centre. Push the Roof Panel This will require 2 people up to the centre. S70 x 10 make the building ridgid.
- Page 15 01636 858 377 For Queries and Help please call Product Support: Fixing Opening Window Fixing Opening Window centrally to the opening window. Fix the Window Rebate 2 people will be required for this. to the side of the inside of Window frame 1220mm 642mm PP x 12...
- Page 16 01636 858 377 For Queries and Help please call Product Support: Fixing the Door Lock Handle Align Door Lock Handle over the key hole on the inside of Fix the Door Rebate to S30 x 4 the side of the frames S25 x 12 to the frame.
- Page 17 01636 858 377 For Queries and Help please call Product Support: Facia Block Fixing Stage Felt Fixing Stage 70mm overhang at each end Tack to hold Length of in place roof + 140mm Felt Felt 1610mm Felt Felt Front View Fold over (10ft Gables) S50 x 16...
- Page 18 01636 858 377 For Queries and Help please call Product Support: For Shingles Roof Covering Only For Shingles Roof Covering Only Cut the full roll of felt in half lenght ways 100mm Only 1 roll of felt is used Repeat previous stages as a starter layer for the for this side Shingles...
- Page 19 01636 858 377 For Queries and Help please call Product Support: Protect your building Protect your building Protect your building 20x10 Traditional Apex Gable-Door-End 16x10 Traditional Apex Gable-Door-End 12x10 Traditional Apex Gable-Door-End Windowed Workshop Shown Windowed Workshop Shown Windowed Workshop Shown Treat after assembly and Treat after assembly and Treat after assembly and...
