Pcb - KIP 600 Service Manual

4. 1

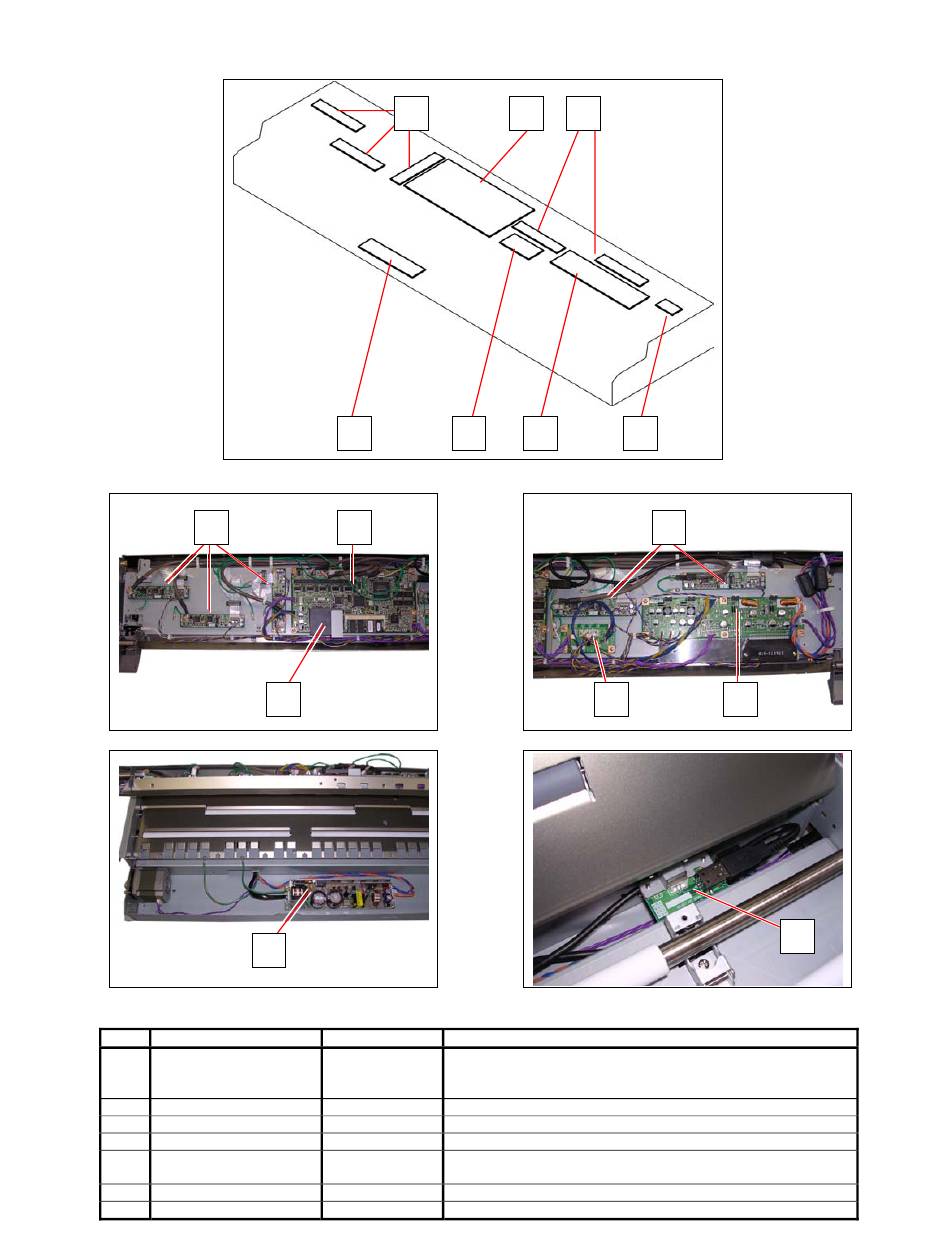

PCB

2
3
Item Name
1 Main PCB
2 CIS Controller Board
3 DC Power Supply
4 Operation Connect PCB
5 Power Board
6 USB Connect PCB
7 Color Module
2
3
1
7
Type Function
Makes several image processes to digital data sent from CIS
Controller Board.
Sends the processed image data to a KIP printer.
3SB-2CCBF Converts analogue data read by CIS to digital data
LPS-75-24 Supplies 24 / 5 / 0VDC
3SB-2POWERH Converts 24VDC to each 12 / 5 / 3.3VDC.
Controls Motor.
1 2
4 5 6
4
4-2
2
5
6
K110sm4e1.doc
