KIP 2300 User Manual
Version A.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIP 2300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KIP KIP 2300

Summary of Contents for KIP KIP 2300

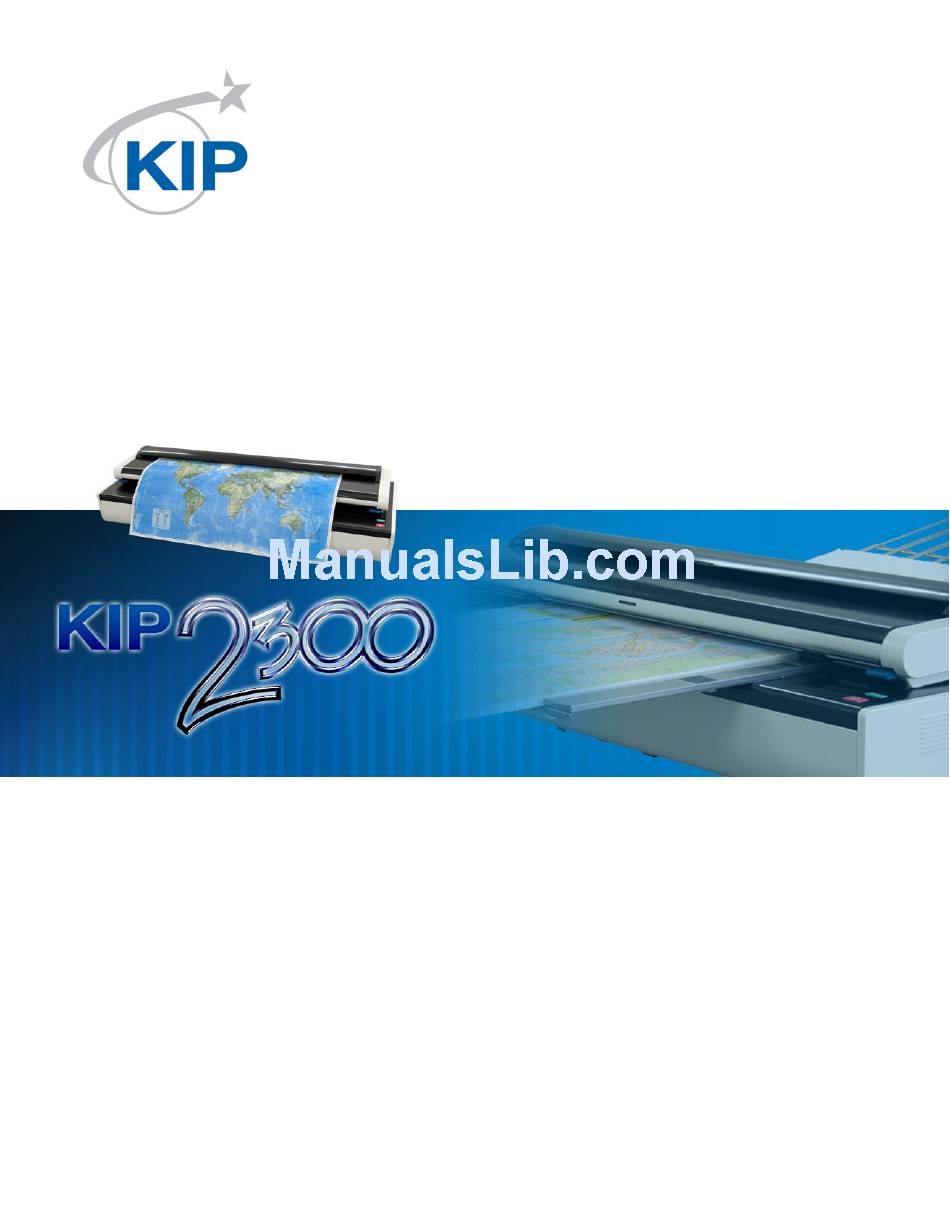

  • Page 1 KIP 2300 User Manual Version A.1...
  • Page 2 We highly appreciate your purchasing our KIP 2300 Image Scanner. This User's Manual contains functional and operational explanation for KIP 2300 Image Scanner. Read this User's Manual carefully before use in order to understand the KIP 2300 Image Scanner completely and to use more efficiently.
  • Page 3 WARNING FOR THE SAFETY (OBSERVE THESE WARNING) Following warnings are very important to use this equipment safely and to prevent the operator from danger and his/her property from being damaged. Hazardous or damage degree is classified and shown as follows when this machine is erroneously used ignoring this USER'S MANUAL.
  • Page 4 WARNING Connect the scanner and Ground with each other surely with the grounding wire. Otherwise, it is dangerous for you if you receive an electric shock or at the time of lightning. If the outlet does not have a Grounding Terminal or if it is impossible to connect, call the vendor or service professional for the installation.
  • Page 5 CAUTION Do not install the machine at the following places. 1. Humidified or dusty place. 2. Unstable floor. (When the machine comes down, it may cause the injury.) Be careful not to catch your hand between Upper Unit and Main Unit when you close the Upper Unit.
  • Page 6 POWER CORD INSTRUCTION The installation of (or exchange to) a power plug which fits in the wall outlet of the installation location shall be conducted in accordance with fallowing: WARNING Selected a power plug which meets the following criteria; The plug has a voltage and current rating appropriate for the product’s rating marked on its name plate.
  • Page 7 Cord Type Standard Rating(minimum) Usually found in SVT 3X18AWG Long <2.4m 7A 125V North America H05VV-F 3X0.75mm 7A 250V European countries Argentina RVV 3X0.75mm 7A 250V China...

  • Page 8: Table Of Contents

    Chapter 1 Before Use page 1. 1 Installation Requirements 1- 2 1. 2 Features 1- 4 1. 3 Specifications 1- 5 1. 4 Name & Function of Each Part 1- 7 1. 4. 1 Front view 1- 7 1. 4. 2 Rear view 1- 9 1.

  • Page 9: Installation Requirements

    1. 1 Installation Requirements The following conditions have to be satisfied when installing the KIP2300 Scanner. 1. Satisfy the following input power condition. Voltage 100 - 240V +6%/-10% Current 6A or higher Frequency 50 or 60Hz. KIP2300 can be connected to the outlet simply so far as the voltage is within 100 - 240V. (+6% and -10% are acceptable) 2.
  • Page 10 Reference Machine Noise Information Ordinance 3. GSGV January 18, 1991 : The maximum sound pressure level is equal or less than 70dB (A) according to ISO 7779. NOTE 1. For U.S.A. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 11 - 4 bit gray mode - Binary (black & white) mode Recognizable of various original widths KIP 2300 Scanner can recognize the following kinds of standard original widths as well as any non-standard widths ranging from 210mm to 1066.8mm (42”). Metric standard original widths : A0, A1, A2, A3, A4, 36”...

  • Page 12: Specifications

    1. 3 Specifications Model KIP2300 Image Scanner Type Desktop scanner Reading sensor 3 CCD Reduction Optical System (3 CCD of RGB 7450 pixels) Optical Resolution Main scanning (horizontal) direction 600dpi Sub scanning (vertical) direction 600dpi Range of Scan Resolution 100 – 2400dpi Scan mode Binary mode 4 bit gray mode...
  • Page 13 Power source Voltage 100 - 120V +6%/-10% 200 - 240V +6%/-10% Note : Scanner accepts any voltage so far as it is within 100-240V +6%/-10%. Frequency 50 or 60Hz Max. power consumption Less than 120W Average power (US : 120V) consumption - During scanning 120W...

  • Page 14: Name & Function Of Each Part

    1. 4 Name & Function of Each Part 1. 4. 1 Front view B O A R D Chapter 1 Before Use...

  • Page 15: Chapter 1 Before Use

    Name Function Upper Original Feeder Upper Original Feeder accepts a sheet type original that is 0.05-1.49mm in thickness. Please set the original with face down. The original fed from here Feeder is ejected to the front side of scanner via Lower Original Feeder. Lower Original Feeder Lower original Feeder accepts not only a sheet type original that is 0.05-1.49 in thickness, but also a board type original that is 1.5-16.0mm in thickness.

  • Page 16: Rear View

    1. 4. 2 Rear view Name Function Rear Counter Rollers Help to transport the original when ejected. USB Terminal USB cable is connected. - Connected to the PC - Type B Connector - 3.3V max HIL Terminal HIL Connector is connected. - Connected to the PC - 3.3V max Inlet...

  • Page 17: Originals Prohibited From Duplication

    1. 5 Specifications for Scan Original 1. 5. 1 Originals Prohibited from Duplication It may be illegal to duplicate or copy certain types of originals and you may be punished by local or regional laws, if copies are made of these types of originals. Please be aware of your local or regional laws and which originals they forbid you to duplicate.

  • Page 18: Specifications For The Scan Original

    1. 5. 2 Specifications for the scan original Original’s thickness which KIP2300 scanner accepts is 0.05 through 16mm. Originals are divided into 2 types such as sheet type and board type in terms of the thickness. - Sheet type : 0.05 through 1.49mm - Board type : 1.50 through 16.0mm Sheet type original Board type original...
  • Page 19 Folded (Leading edge) Uneven thickness Curled (Diameter of curl must be larger than 80mm.) Irregular shape (Not square) K I P K I P Wet (Ink is not dried) Made of metal or cloth Metal Cloth K I P K I P 1-12 Chapter 1 Before Use...
  • Page 20 Patched Clipped or stapled Clipped Stapled K I P K I P Rough surface Rough surface (Carbon paper for example) Punched Dusty Electrically changed Photograph 1-13 Chapter 1 Before Use...
  • Page 21 2- 7 2. 2. 2 Scanning a board type original 2-10 2. 3 Cancellation of Current Scan 2-18 2. 2 Turning OFF the KIP 2300 2-19 2. 5 Auto Power OFF 2-20 2. 6 Removal of Trays 2-21 2. 6. 1...

  • Page 22: Turning On The Kip2300

    2. 1 Turning ON the KIP 2300 1. Prepare a power cable that satisfies the following specifications. 2. Connect the KIP2300 scanner to the outlet via the power cable. WARNING (1) Do not handle the power plug with a wet hand. It may result in receiving an electrical shock.
  • Page 23 5. Scanner gets ready when all the initializations are finished, which is shown by continuous lighting of Power Lamp in green. Power Lamp (lights when ready) B O A R D Chapter 2 Basic Operation...

  • Page 24: Scanning An Original

    2. 2 Scanning an Original 2. 2. 1 Scanning a sheet type original A sheet type original can be fed from both upper and lower original feeders. - Upper original feeder accepts 0.05 to 0.1mm in thickness. - Lower original feeder accepts 0.05 to 1.5mm in thickness. Upper Original Feeder Sheet type original (0.05 through 1.0mm)
  • Page 25 2. The Original Guides will prevent the original from skewing during scanning. Move them onto the Upper Original Feeder (if on the Lower Original Feeder). Then according to the width of scan original, align the inside edge of Original Guides to the concerning size lines on the table. Original Guides 3.
  • Page 26 5. KIP2300 starts scanning automatically or manually according to the operation on the controller software. The original is turned and ejected to the front side via Lower Original Feeder. Chapter 2 Basic Operation...

  • Page 27: Using The Lower Original Feeder

    (2) Using the Lower Original Feeder The thickness of original that the lower original feeder can accept by normal mode is from 0.05 to 1.5mm. 1. Confirm the Lower Original Feeder Indicator is lighting in green. The original can be accepted only when it is lighting in green.
  • Page 28 3. Confirm that the original is face down. 4. Aligning both side edges with the Original Guides, insert the scan original into the Lower Original Feeder until the leading hits the feeding roller. Wait a few seconds with contacting the leading edge to the feeding rollers until the scanner starts transporting.
  • Page 29 5. KIP2300 starts scanning automatically or manually according to the operation on the controller software. NOTE The lower original feeder will transport the original very quickly especially when low scan resolution is selected in the monochrome/gray mode. Be careful not to touch the edge of original during transportation so as not to be harmed.

  • Page 30: Scanning A Board Type Original

    2. 2. 2 Scanning a board type original An original thicker than 1.5mm needs to be scanned in the board original mode, and it also needs to be fed into the Lower Original Feeder. Board type original (1.5 through 16.0mm) Lower Original Feeder 1.
  • Page 31 2. Move the bottom ends of Rear Steel Trays from normal position to low position, which will set the entire Rear Steel Trays to the low (flat) position. Normal position Low position Normal position Low position NOTE Please set the Rear Steel Trays to the low position when a board type original is scanned. 2-11 Chapter 2 Basic Operation...
  • Page 32 3. Press BOARD Button to enable the Board Original Feeding Mode. The BOARD Lamp lights in green, and the Power Lamp blinks in green with waiting the insertion of board original. BOARD Lamp (lights) B O A R D Power Lamp (blinks) BOARD Button (Press this to enable the board original mode)
  • Page 33 5. The Original Guides will prevent the original from skewing during scanning when placed correctly. Referring to the size lines on the scanner table, place these guides to the locations where the edges of scan original will be. Original Guides 6.
  • Page 34 7. With aligning both side edges with the Original Guides, insert the scan original into the Lower Original Feeder and move it forward until the Lower Original Feeder Indicator starts blinking, which notices that the original is enough inserted. Leading edge of the original Blinks when original is enough inserted 2-14 Chapter 2 Basic Operation...
  • Page 35 8. Press the BOARD Button. The Document Press Unit moves down and holds the original firmly. BOARD Button B O A R D Document Press Unit (This moves down.) 2-15 Chapter 2 Basic Operation...
  • Page 36 CAUTION Do not put the hand under the Document Press Unit when it is moving down as the hand will be caught. - Even if the hand is caught by the Document Press Unit accidentally, the scanner automatically detects it and moves up the Document Press Unit within a few seconds for relieving the hand.
  • Page 37 10. The original is ejected to the rear side and stacked on the Rear Steel Tray. 2-17 Chapter 2 Basic Operation...

  • Page 38: Cancellation Of Current Scan

    2. 3 Cancellation of Current Scan 1. Press of the Stop Button during scanning will cancel current scan, and the KIP2300 stops original feeding. B O A R D Stop button 2. One more press of the Stop Button will eject the original to either front or rear accordingly to the location of original.

  • Page 39: Turning Off The Kip 2300

    2. 4 Turning OFF the KIP 2300 Turn off the KIP2300 scanner pressing the bar ( | ) side of Power Switch on the left. Press this side for turning off. 2-19 Chapter 2 Basic Operation...

  • Page 40: Auto Power Off

    2. 5 Auto Power OFF KIP 2300 has Auto Power OFF feature for energy saving purpose, which automatically switches off the scanner when 15 minutes of inactive period has passed. Please turn on the scanner again with the Power Switch for using the scanner again.

  • Page 41: Removal Of Trays

    2. 6 Removal of Trays 2. 6. 1 Front Steel Trays The Front Steel Tray can be removed when unnecessary or for saving the space. Please do as instructed in below. Front Steel Tray 1. Remove 4 Front Trays (1). 2-21 Chapter 2 Basic Operation...
  • Page 42 2. Remove the Front Tray BKT 3 (2) by twisting as arrow (A) then moving up as arrow (B). 3. Pull up both blue levers (3) to open the scanner upper unit. 2-22 Chapter 2 Basic Operation...
  • Page 43 4. Remove the Front Tray BKT 2 (4) on the right. 5. Remove the Front Tray BKT 1 (5) on the left. 6. Close the scanner upper unit finally. 2-23 Chapter 2 Basic Operation...

  • Page 44: Rear Steel Trays

    2. 6. 2 Rear Steel Trays The Rear Steel Tray can be removed when unnecessary or for saving the space. Please do as instructed in below. Rear Steel Tray 1. Move up and remove the Rear Steel Trays (1). 2-24 Chapter 2 Basic Operation...
  • Page 45 Chapter 3 Troubleshooting page 3. 1 Original Misfeed 3- 2 3. 1 When feeding into upper original feeder 3- 2 3. 2 When feeding into upper original feeder 3- 4 3. 2 Error 3- 5 Chapter 3 Troubleshooting...
  • Page 46 3. 1 Original Misfeed When the original is mis-fed during scanning, remove it manually as instructed in below. 3. 1 When feeding into upper original feeder 1. Open the document upper cover with holding both sides. Document upper cover Hold here when opening the document upper cover. 2.
  • Page 47 3. Remove the mis-fed original. Mis-fed original CAUTION Take cere not to catch your hand when closing the document upper cover or scanner upper unit. Chapter 3 Troubleshooting...
  • Page 48 3. 2 When feeding into lower original feeder 1. Open the scanner upper unit by pulling up the blue levers on both sides. Blue levers 2. Remove the mis-fed original. Mis-fed original CAUTION Take cere not to catch your hand when closing the scanner upper unit. Chapter 3 Troubleshooting...
  • Page 49 3. 2 Error The Power Lamp lights in red when the scanner has any error. See the description of error indicated on the controller monitor, and correct the error appropriately. B O A R D Power Lamp (lights in red when any error occurs.) Chapter 3 Troubleshooting...
  • Page 50 Chapter 4 Maintenance page 4. 1 Cleaning 4- 2 4. 1. 1 Document Glass 4- 2 4. 1. 2 Platen 4- 4 4. 1. 2 Feed Rollers 4- 5 Chapter 4 Maintenance...

  • Page 51: Document Glass

    4. 1 Cleaning It is recommended to clean Original Glass, Platen and Feeding Rollers once a week or as needed. Dirt of these parts may result in the image problem or getting dirt on the scan original. 4. 1. 1 Document Glass Open the scanner upper unit.
  • Page 52 CAUTION The Document Glass can be removed if the thumb screws on both sides (and the brackets) are removed. But do not touch this screw as only the service technician is allowed for removing the Document Glass. If the Document Glass is removed, some foreign substance may drop into the machine, and may cause several troubles as short-circuit.
  • Page 53 4. 1. 2 Platen Wipe the entire white part of the Platen with a soft cloth with a little water (or with neutral detergent) first, and wipe it with a dry soft cloth. Platen : Clean the entire white part. Chapter 4 Maintenance...

  • Page 54: Feed Rollers

    4. 1. 3 Feed Rollers Wipe the Feed Rollers with a soft cloth with a little water (or with neutral detergent) first, and wipe it with a dry soft cloth. Feed Rollers Feed Rollers Chapter 4 Maintenance...
  • Page 55 Feed Rollers Chapter 4 Maintenance...
  • Page 56 Feed Rollers Chapter 4 Maintenance...
  • Page 57 Image Scanner KIP 2300 User’s Manual Version A.1 Published by Katsuragawa Electric Co., Ltd. 21-1 Shimomaruko 4-Chome, Ota-ku, Tokyo 146-8585, Japan All rights reserved. Please note that some articles, illustrations and photographs might be partially different from the actual machine because of the modification of machine and so on.
