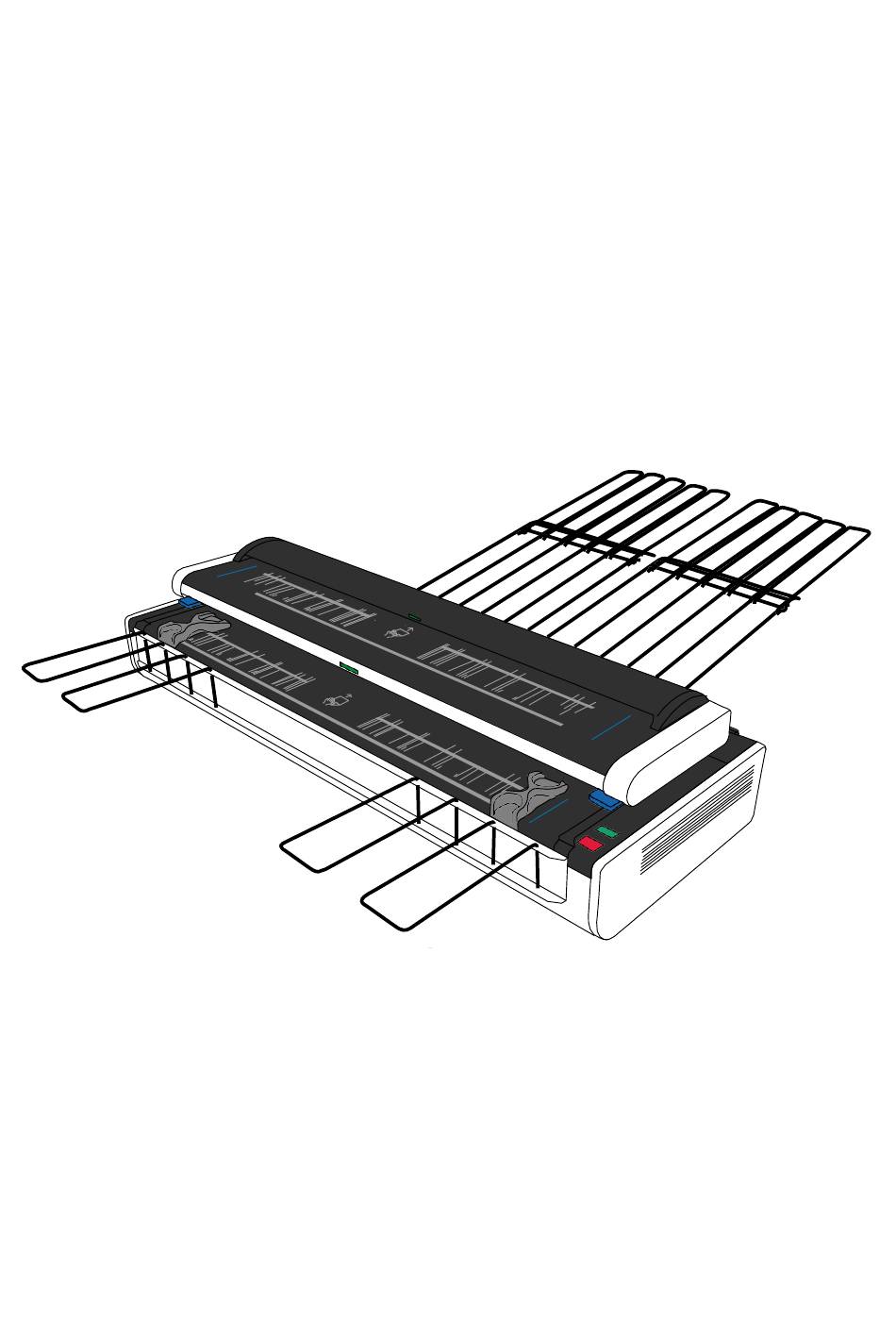

KIP 2300 USB3
User Guide
Version QA.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2300 USB3 and is the answer not in the manual?

Questions and answers

Related Manuals for KIP 2300 USB3

Summary of Contents for KIP 2300 USB3

  • Page 1 KIP 2300 USB3 User Guide Version QA.1...
  • Page 2 We highly appreciate your purchasing our KIP 2300 Image Scanner. This User's Manual contains functional and operational explanation for KIP 2300 Image Scanner. Read this User's Manual carefully before use in order to understand the KIP 2300 Image Scanner completely and to use more efficiently.
  • Page 3 WARNING FOR THE SAFETY (OBSERVE THESE WARNING) Following warnings are very important to use this equipment safely and to prevent the operator from danger and his/her property from being damaged. Hazardous or damage degree is classified and shown as follows when this machine is erroneously used ignoring this USER'S MANUAL.
  • Page 4 WARNING Connect the scanner and Ground with each other surely with the grounding wire. Otherwise, it is dangerous for you if you receive an electric shock or at the time of lightning. If the outlet does not have a Grounding Terminal or if it is impossible to connect, call the vendor or service professional for the installation.
  • Page 5 CAUTION Do not install the machine at the following places. 1. Humidified or dusty place. 2. Unstable floor. (When the machine comes down, it may cause the injury.) Be careful not to catch your hand between Upper Unit and Main Unit when you close the Upper Unit.

  • Page 6: Installation Requirements

    1. 1 Installation Requirements The following conditions have to be satisfied when installing the KIP2300 Scanner. 1. Satisfy the following input power condition. Voltage 100 - 240V +6%/-10% Current 6A or higher Frequency 50 or 60Hz. KIP2300 can be connected to the outlet simply so far as the voltage is within 100 - 240V. (+6% and -10% are acceptable) 2.
  • Page 7 Reference Machine Noise Information Ordinance 3. GSGV January 18, 1991 : The maximum sound pressure level is equal or less than 70dB (A) according to ISO 7779. NOTE 1. For U.S.A. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 8: Specifications

    1. 2 Specifications Model KIP2300 Image Scanner Type Desktop scanner Reading sensor 3 CCD Reduction Optical System (3 CCD of RGB 7450 pixels) Optical Resolution Main scanning (horizontal) direction 600dpi Sub scanning (vertical) direction 600dpi Range of Scan Resolution 100 – 2400dpi Scan mode Binary mode 8 bit gray mode...
  • Page 9 Power source Voltage 100 – 240V +6%/-10% Frequency 50 or 60Hz Max. power consumption Less than 120W (US : 120V) Average power consumption - During scanning 120W - Stand by - In Power Save Mode (EUR / ASIA : 200-240V) - During scanning 120W - Stand by...

  • Page 10: Name And Function Of Each Part

    1. 4 Name & Function of Each Part 1. 4. 1 Front view...
  • Page 11 Name Function Upper Original Feeder Upper Original Feeder accepts a sheet type original that is 0.05-0.1mm in thickness. Please set the original with face up. The original fed from here Feeder is ejected to the front side of scanner via Lower Original Feeder. Lower Original Feeder Lower original Feeder accepts a sheet type original that is 0.05-1.49mm in thickness as well as a board type original that is 1.5-16.0mm in thickness.
  • Page 12 1. 4. 2 Rear view Name Function Rear Counter Rollers Help to transport the original when ejected. USB Terminal USB cable is connected. - Connected to the PC - Type B Connector - 5V max. HIL Terminal HIL Connector is connected. - Connected to the PC - 5V max.

  • Page 13: Turning On/Off

    2. 1 Turning ON / OFF 1. Prepare a power cable that satisfies the following specifications. 2. Connect the KIP2300 scanner to the outlet via the power cable. 3. Turn on the KIP2300 scanner pressing the bar ( | ) side of Power Switch on the left. Press this side for turning on.

  • Page 14: Auto Power Off

    2. 2 Auto Power OFF KIP 2300 has Auto Power OFF feature for energy saving purpose, which automatically switches off the scanner when 15 minutes of inactive period has passed. Please turn on the scanner again with the Power Switch for using the scanner again.
  • Page 15 3. 1 Original Misfeed When the original is mis-fed during scanning, remove it manually as instructed in below. 3. 1 When feeding into upper original feeder 1. Open the document upper cover with holding both sides. Document upper cover Hold here when opening the document upper cover. 2.
  • Page 16 3. Remove the mis-fed original. Mis-fed original CAUTION Take cere not to catch your hand when closing the document upper cover or scanner upper unit.
  • Page 17 3. 2 When feeding into lower original feeder 1. Open the scanner upper unit by pulling up the blue levers on both sides. Blue levers 2. Remove the mis-fed original. Mis-fed original CAUTION Take cere not to catch your hand when closing the scanner upper unit.
  • Page 18 3. 2 Error The Power Lamp lights in red when the scanner has any error. See the description of error indicated on the controller monitor, and correct the error appropriately. Power Lamp (lights in red when any error occurs.)
  • Page 19 4. 1 Cleaning It is recommended to clean Original Glass, Platen and Feeding Rollers once a week or as needed. Dirt of these parts may result in the image problem or getting dirt on the scan original. 4. 1. 1 Document Glass Open the scanner upper unit.
  • Page 20 CAUTION The Document Glass can be removed if the thumb screws on both sides (and the brackets) are removed. But do not touch this screw as only the service technician is allowed for removing the Document Glass. If the Document Glass is removed, some foreign substance may drop into the machine, and may cause several troubles as short-circuit.
  • Page 21 4. 1. 2 Platen Wipe the entire white part of the Platen with a soft cloth with a little water (or with neutral detergent) first, and wipe it with a dry soft cloth. Platen : Clean the entire white part.
