Lali Bar Stool
Assembly Instructions

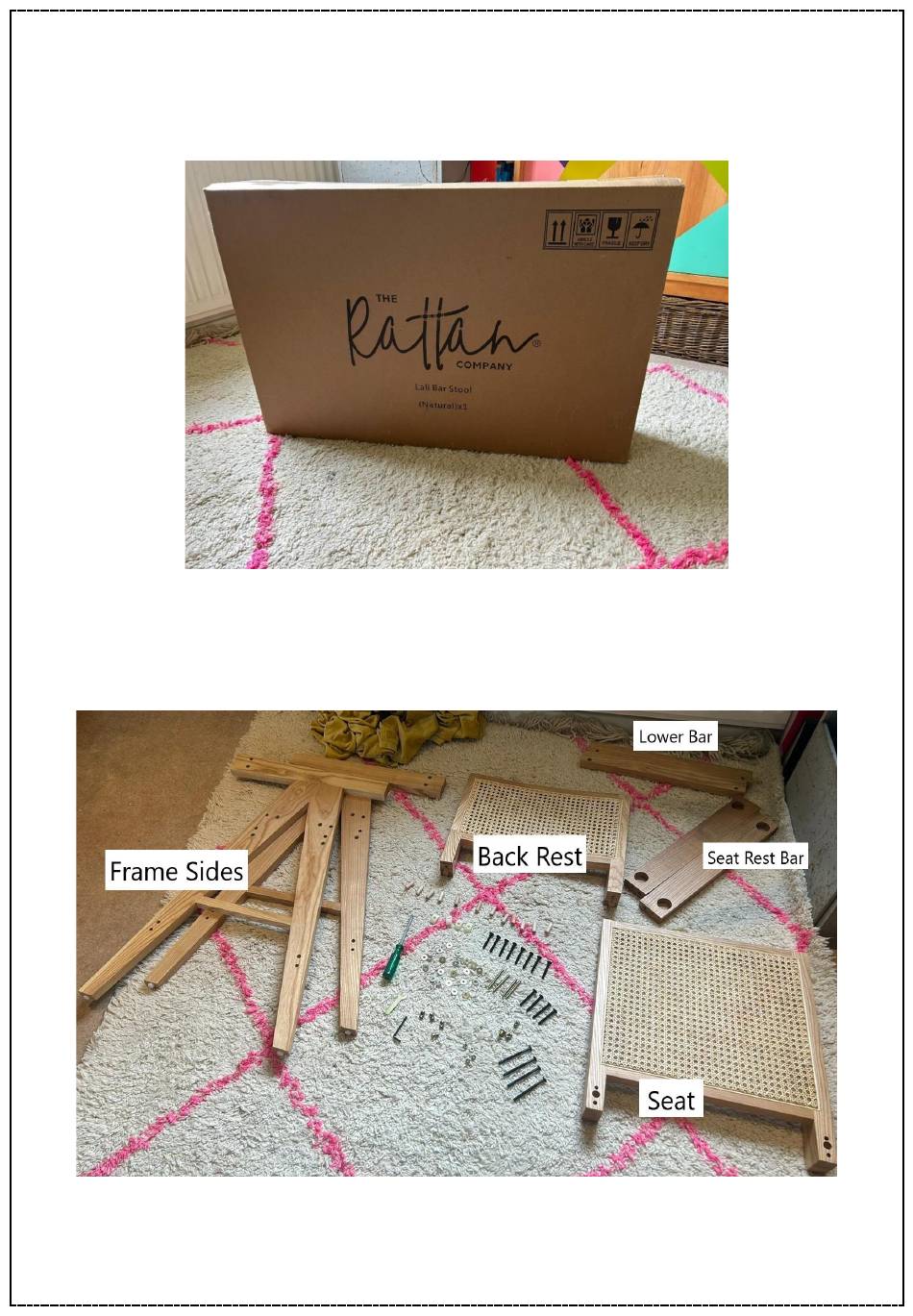

1. Open the box and lay out all the pieces taking particular care to split the 45mm (x8) and
50mm screws (x4). If you don't use these different screws in the appropriate places, it will
cause an issue right at the end and then you'll realise what you've done!
Advertisement
Related Manuals for RATTAN Lali
Summary of Contents for RATTAN Lali
- Page 1 Lali Bar Stool Assembly Instructions 1. Open the box and lay out all the pieces taking particular care to split the 45mm (x8) and 50mm screws (x4). If you don’t use these different screws in the appropriate places, it will...
- Page 3 2. Begin to assemble the first side of the stool. a. Screw in the double ended screws and insert the wood dowels into the holes on both sides (as per the image below). b. Attach the seat rest bars on both sides with the large hole facing inwards. c.
- Page 4 4. Attach the seat and back rest to this side of the stool. g. Start by fixing the seat into position. Insert the 2 x wooden dowels and put the seat into position. Insert a metal washer into each hole and then tighten to 75% (i.e. don’t tighten fully because you may need some wiggle room to connect the seat to the back later) with a 45mm screw.
- Page 5 5. Attach the 2 side to the stool k. Set up the 2 side by inserting the wooden dowels and screwing in the metal double ended screws. l. Place the 2 side on top of the completed 1 side and line up all the wooden dowels with their respective partner holes.
