ATTENTION TO INSTALLERS:
This DC ceiling fan requires complete assembly and installation BEFORE testing for correct operation.
The fan motor will not continue to operate without the fan blades attached.
The blades of this fan are made of soft plantation timber, they will damage easily. Extreme care must
be taken to avoid damaging the blades during assembly and installation.
Installation Manual
Use & Care Guide
Warranty Information

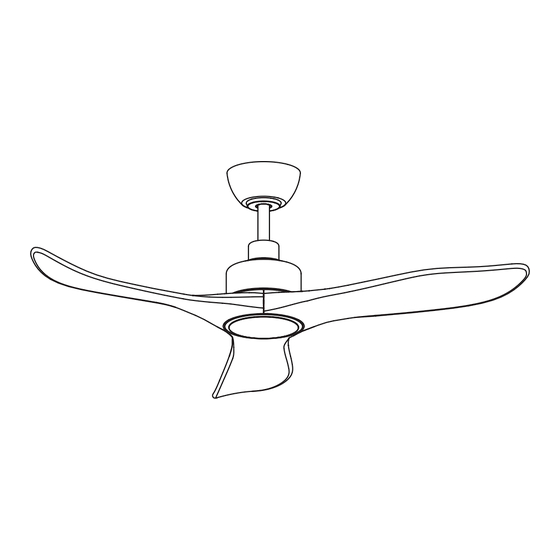

CURRUMBIN Ceiling Fan
60": 20619221, 20619228
80": 20619321, 20619328
100": 20619421, 20619428
CURRUMBIN Ceiling Fan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CURRUMBIN 20619221 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eglo CURRUMBIN 20619221

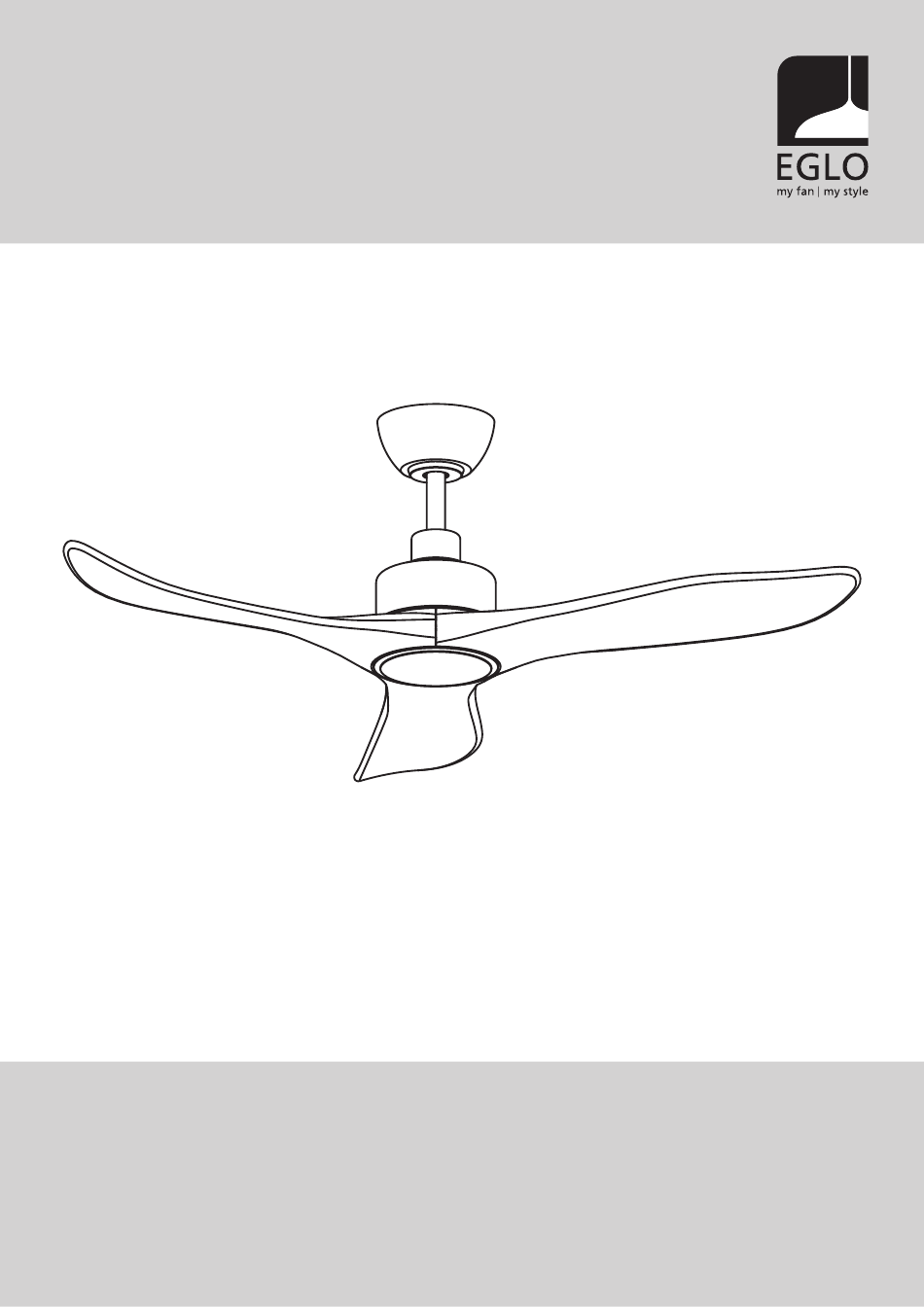

  • Page 1 ATTENTION TO INSTALLERS: This DC ceiling fan requires complete assembly and installation BEFORE testing for correct operation. The fan motor will not continue to operate without the fan blades attached. The blades of this fan are made of soft plantation timber, they will damage easily. Extreme care must be taken to avoid damaging the blades during assembly and installation.
  • Page 2 EGLO Lighting has a policy of continual product improvement and development, dimensions, hardware and designs may change to reflect this policy. EGLO reserves the right to discontinue or change product specifications & designs at any time without notice and without incurring obligations.
  • Page 3: Table Of Contents

    HOW TO MAKE A WARRANTY CLAIM: ........................Thank you for purchasing your new EGLO ceiling fan. TTo ensure a safe and successful installation, please make sure to read this manual, ensure it is on hand for your installer to refer to, and keep in a safe place for future reference.
  • Page 4: For Your Safety

    16. This fan is designed for indoors use. 17. EGLO lighting will not be liable for any advice given to the consumer from any of our suppliers or third parties, related or otherwise. 18. Proper performance relies on the right fan being correctly installed in the optimum location. Fans that do not perform as expected and which are not faulty cannot be replaced or exchanged under warranty.
  • Page 5: Before Installation

    • Check that all parts are present before commencing assembly. Refer to Parts List. • If any parts are missing, carefully check the eco-friendly packaging and bags for the missing parts, and if they cannot be located, contact EGLO for assistance before commencing assembly or installation. PARTS LIST...
  • Page 6: Selecting A Location

    Refer to Figure 2. 4. Many EGLO fans are designed for indoor use, though they can NOTE: Image is for representation only, and does not represent the actual bracket.
  • Page 7 5. Re-check that all screws are properly tightened. Fig. 6 6. Remove receiver shelf from bracket,carefully lift the fan assembly up to the hanging bracket Fig. 6. 7. Seat the downrod ball assembly into the bracket, ensuring the Notch notch of the hanger ball is positioned on the stopper of the Safety Wire hanger bracket to prevent the fan from rotating when in...
  • Page 8: Wiring Connections

    WIRING CONNECTIONS: WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST ONLY BE UNDERTAKEN BY A QUALIFIED AND LICENSED ELECTRICIAN. Yellow/Green(E) House Supply Wires Brown(L) Yellow/Green(E) Light connection Blue(N) For with light option Brown(L) Brown Yellow/Green(E) Blue(N) Blue Grey Yellow/Green(E) Pink Note: For safe use of this fan, and all-pole disconnection MUST be incorporated into the fixed wiring in accordance with the wiring rules as outlined in clause 7.12.2 of AS/NZS 60335-1 for meeting the minimum electrical safety of this standard.
  • Page 9: Operating Your Remote Control

    NIGHT MODE: Your EGLO ceiling fan is fitted with ‘Night Mode’, an extra slow speed. By pressing and holding speed button 1 for at least 3 seconds, your fan will slow to approximately 1 revolution per second, providing gentle air circulation, ideal for overnight use.
  • Page 10: Cleaning And Maintenance

    Your fans natural movement can cause screws to loosen. Every 6 months, check that ALL screws are securely tightened with a screwdriver. All EGLO ventilation products should be cleaned regularly to insure against corrosion from salt, dust and moisture, both externally and internal (where allowed and possible).
  • Page 11: Troubleshooting Checklist

    TROUBLE SHOOTING CHECKLIST: (*) May require the assistance of a qualified and licenced electrical contractor. PROBLEM POSSIBLE CAUSE POSSIBLE REMEDY Fan or Light will not start. Turn power OFF. Fuse or circuit breaker blown. Check fuses and circuit breaker. (*) Turn power OFF.
  • Page 12: Warranty Claims On Installed Products

    Subject to “Your Consumer Rights“ outlined above, but otherwise to the maximum extent permitted by law, EGLO will not be liable for any consequential or indirect loss or damage suffered or incurred by you in relation to an EGLO product, including but not limited to loss of use, loss or damage for business interruption, or profits.
  • Page 13: In-Home Warranty

    1. The product is deemed to be a non-EGLO product, or the fault is caused by a non-EGLO controller or accessory. 2. There is nothing wrong with the EGLO product or to the extent that the failure is not a failure of the product to perform in accordance with its published features and specifications as reasonably determined by EGLO.
  • Page 14: Commercial Use

    15. The cost of renting, obtaining and using special access equipment (i.e. scaffoldings, scissor lifts, etc.) for accessing products installed at a height of greater than 3.0 meters. 16. Travelling costs incurred by EGLO personnel or service agents traveling greater than 25 Km from an EGLO service agent base. The purchaser must meet these traveling costs.
  • Page 15: Warranty Conditions

    HOW TO MAKE A WARRANTY CLAIM: A. Limited repair/replacement warranty: Please return the faulty EGLO product together with a copy of the proof of purchase, and if required, a certificate of compliance for the installation of the product by the licensed electrician who installed the product, to the authorised EGLO retailer where the product was purchased.
  • Page 16 WARRANTY CLAIM FORM Warranty Claim No.: (EGLO Office Use Only) To help us assist you with your claim, please complete the enclosed warranty form in full. CUSTOMER DETAILS Name: Day�me Phone/Mobile: Email: ADDRESS WHERE PRODUCT IS INSTALLED Address: Suburb/Town: State:...
  • Page 18 EGLO LIGHTING AUSTRALIA 5/339 Archerfield Road Richlands Queensland 4077 www.eglo.com.au CURRUMBIN Ceiling Fan...
