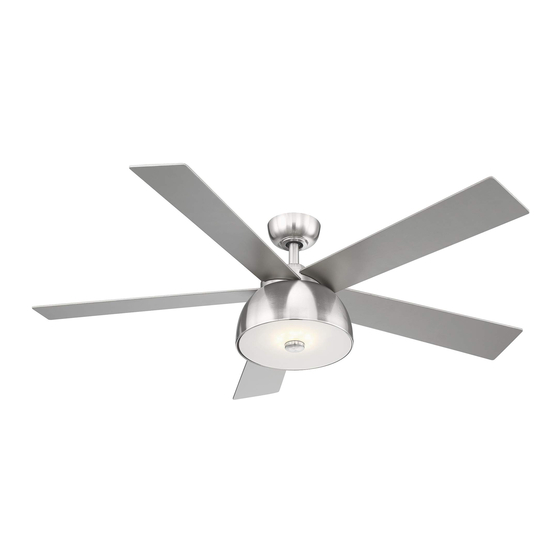

• CEILING FAN OWNER'S MANUAL •
Read and Save These Instructions
• Lestat •
203227A
203228A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 203227A and is the answer not in the manual?

Questions and answers

Summary of Contents for Eglo 203227A

  • Page 1 • CEILING FAN OWNER'S MANUAL • Read and Save These Instructions • Lestat • 203227A 203228A...
  • Page 2: Tools And Materials Required

    TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: a. Blade set (5) b. Hanger bracket assembly c.
  • Page 3: Safety Rules

    SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the blades. electricity has been turned off at the circuit 9. To avoid personal injury or damage to the fan breaker or fuse box before beginning. and other items, be cautious when working around or cleaning the fan.
  • Page 4: Mounting Options

    MOUNTING OPTIONS If there isn't an existing UL/CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials.
  • Page 5: Attaching The Fan Blades

    ATTACHING THE FAN BLADES Step 1. Insert the blade through the slot in the housing. Align the holes in the blade and the fan motor assembly and secure with the blade attachment screws with fiber washers. (Fig. 5) Screws with fiber washers Slot Blade...
  • Page 6 Step 5. Remove the hanger pin, lock pin and set HANGING THE FAN screws from the top of the motor assembly. Step 6. Route wires and safety cable exiting from the Downrod top of the fan motor through the collar cover, Canopy canopy cover, canopy and then through the ball / downrod.
  • Page 7: Make The Electric Connections

    MAKE THE ELECTRIC CONNECTIONS WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. Code switch NOTE: This remote control unit is equipped with 16 code combinations to prevent possible interference from or to other remote units.
  • Page 8: Finishing The Installation

    Step 4. (Figure 12) If your outlet box has a ground wire (green or bare copper) connect it to the fan Outlet box ground wires; otherwise connect the hanging bracket ground wire to the mounting bracket. Secure the wire White (neutral) Black (hot) connection with a plastic nut provided.
  • Page 9: Installing The Led Light Kit

    LOGO INSTALLATING THE MOUNTING PLATE Step 1. Remove the 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes on the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes.
  • Page 10 INSTALLATING THE GLASS SHADE Step 1. Place the glass shade over the LED light kit stem and secure with the metal nut provided. Do not overtighten. (Fig. 16) LED Light kit Glass shade Metal nut Fig. 16...
  • Page 11: Installing The Battery

    INSTALLING THE BATTERY Install 9 volt battery (included), to prevent damage to transmitter, remove the battery if not used for long periods. (Fig. 17) Fig. 17 OPERATING YOUR TRANSMITTER Restore power to ceiling fan and test for proper operation. 1. HI, MED, and LOW buttons: These three buttons are used to set the fan speed as follows: HI= high speed...
  • Page 12 OPERATING YOUR TRANSMITTER (CONTINUED) The Reverse switch is located on the top of the motor housing. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. Speed settings for warm or cool weather depend on factors such as the room size.
  • Page 13: Care Of Your Fan

    CARE OF YOUR FAN Here are some suggestions to help you maintain your fan 1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.) 2.
  • Page 14: Troubleshooting

    TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
  • Page 15 TROUBLESHOOTING Volts Watts Fan Size Speed Amps N.W. G.W. C.F. 0.23 11.84 1947 19.00 22.11 2.52' 52" 0.55 65.53 5036 High These are approximate measures. They do not include Amps and Wattage used by the light kit.
