ATTENTION TO INSTALLERS:
This DC ceiling fan requires complete assembly and installation BEFORE testing
for correct operation. The fan motor will not continue to operate without the fan
blades attached.
Installation Manual
Use & Care Guide
Warranty Information
204169
204171
204172
204173

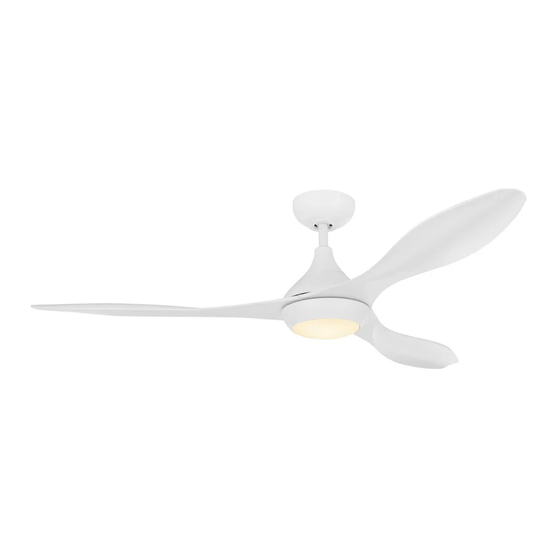

NEVIS-II Ceiling Fan
204169
204172
204171
204173
NEVIS-II Ceiling Fan
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Eglo NEVIS-II
Summary of Contents for Eglo NEVIS-II
- Page 1 204173 ATTENTION TO INSTALLERS: This DC ceiling fan requires complete assembly and installation BEFORE testing for correct operation. The fan motor will not continue to operate without the fan blades attached. NEVIS-II Ceiling Fan 204169 204172 204171 204173 Installation Manual Use &...
- Page 2 EGLO Lighting has a policy of continual product improvement and development, dimensions, hardware and designs may change to reflect this policy. EGLO reserves the right to discontinue or change product specifications & designs at any time without notice and without incurring obligations.
-
Page 3: Table Of Contents
WARRANTY CONDITIONS: HOW TO MAKE A WARRANTY CLAIM: Thank you for purchasing your new EGLO ceiling fan. To ensure a safe and successful installation, please make sure to read this manual, ensure it is on hand for your installer to refer to, and keep in a safe place for future reference. -
Page 4: For Your Safety
17. This fan is designed for use indoors only. 18. EGLO lighting will not be liable for any advice given to the consumer from any of our suppliers or third parties, related or otherwise. 19. Proper performance relies on the right fan being correctly installed in the optimum location. Fans that do not perform as expected and which are not faulty cannot be replaced or exchanged under warranty. -
Page 5: Before Installation
Refer to Figure 2. 4. Many EGLO fans are designed for indoor use, though they can also be installed in appropriately covered outdoor locations. If you are installing your fan in a covered outdoor area, you must ensure that it cannot be exposed to direct rain, water, and sunlight. -
Page 6: Installing The Hanging Bracket
14. After completing the mains electrical connection at the terminal block, connect the ceiling fan wiring by connecting the quick connector plugs into the receiver. Slide the receiver into the ‘slot’ in the hanger bracket. Refer Fig. 12. NEVIS-II Ceiling Fan... - Page 7 16. Slide the canopy ring up to the canopy and attach to the two canopy fixing screws. Note: The use of electric drivers can overtighten the screws and damage threads, DO NOT use power tools for tightening screws. Fig. 4 Fig. 5 Fig. 6 Fig. 7 Fig. 9 Fig. 8 Fig.10 Fig.11 Fig.12 NEVIS-II Ceiling Fan...
-
Page 8: Wiring Connections
FOR FAN WITH LIGHT KIT DC MOTOR WHITE WHITE Lightkit ORANGE ORANGE WIRING DIAGRAM FOR CEILING FAN WITHOUT LIGHT: Models Voltage Lamp No Light models 110-240V~, 50/60 Hz 45W max. With Light models 110-240V~, 50/60 Hz 45W max. 140W max. NEVIS-II Ceiling Fan... -
Page 9: Operating Your Remote Control
3. Low voltage in the batteries can affect the operation and signal reception. The LED indicator light will flash when the battery is low, replace the battery immediately. NEVIS-II Ceiling Fan Note: If not using the fan and remote for extended periods, remove the battery from the transmitter. -
Page 10: Reverse Function
Your fans natural movement can cause screws to loosen. Every 6 months, check that ALL screws are securely tightened with a screwdriver. All EGLO ventilation products should be cleaned regularly to insure against corrosion from salt, dust and moisture, both externally and internal (where allowed and possible). -
Page 11: Trouble Shooting
Please allow a 24-hour “settling-in” period, as most noises associated with a new fan disappear during this initial period. Please note that this is not a product fault and as such is not covered under warranty. All electric motors make noise to some extent! NEVIS-II Ceiling Fan... -
Page 12: Trouble Shooting Checklist
Check and if necessary re-install the hanging bracket if not installed/ installed correctly. (*) Incorrect controller. Turn power OFF. Change the controller to the supplied controller. (*) Fan needs to settle in. Allow 6-8 hours of operating time to allow fan to ‘settle in’. NEVIS-II Ceiling Fan... -
Page 13: Warranty Claims On Installed Products
Subject to “Your Consumer Rights“ outlined above, but otherwise to the maximum extent permitted by law, EGLO will not be liable for any consequential or indirect loss or damage suffered or incurred by you in relation to an EGLO product, including but not limited to loss of use, loss or damage for business interruption, or profits. -
Page 14: Warranty Transfer
The product is deemed to be a non- EGLO product. There is nothing wrong with the EGLO product or to the extent that the failure is not a failure of the product to perform in accordance with its published features and specifications as reasonably determined by EGLO. -
Page 15: What Is Not Covered
5. WHAT IS NOT COVERED: Subject to “Your Consumer Rights“, but otherwise to the maximum extent permitted by law, the EGLO warranties provided in this docu- ment will not cover the following: EGLO products that are not purchased from an authorised retailer and installed in Australia. -
Page 16: Warranty Conditions
EGLO retailer where the product was purchased. To the maximum extent permitted by law, the customer must bear the costs and expenses of claiming under this warranty, including but not limited to the cost incurred in freight, postage, handling, travel, dismantling or reinstalling the product. - Page 17 EGLO USE ONLY Date: Electrican: Quote No.: Cost to Rectify: Approved By: Signed: Please email this form, together with a copy of your purchase receipt, and installers invoice to EGLO LIGHTING: warranty@eglolighting.com.au, or call 1800 254 448 for assistance. NEVIS-II Ceiling Fan...
- Page 18 EGLO LIGHTING AUSTRALIA 5/339 Archerfield Road Richlands Queensland 4077 www.eglo.com.au NEVIS-II Ceiling Fan...
